Series 707 M5 Connectors and Single-Ended Cordsets, IP 67

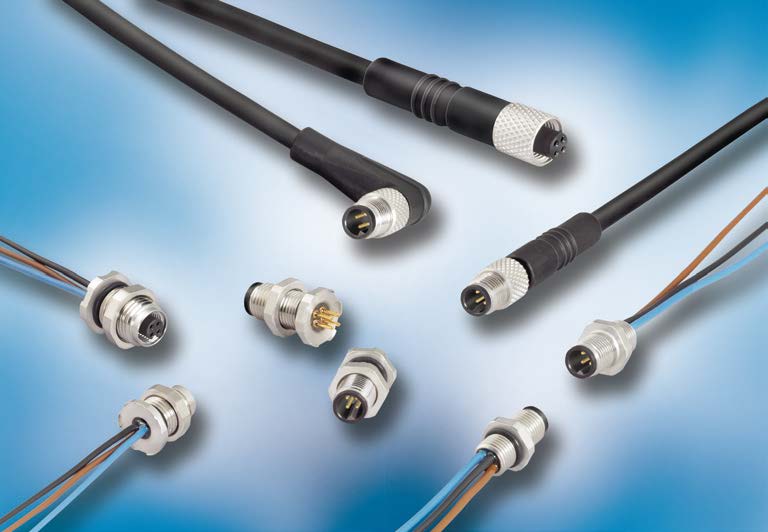

Series 707 M5 Connectors and Single-Ended Cordsets, IP 67

The Series 707 is a unique Binder development for the miniature sensor market. The product line offers 3 and 4 position cable cordsets and a range of panel-mounted receptacles. All connectors are either factory PUR overmolded or supplied with attached leads.
  • PUR overmolded
  • Threaded nut immune to vibration
  • Degree of protection IP 67
  • Available with 3 or 4 contacts
  • Cable length 2m and 5m (PUR)
  • Other cable lengths upon request, 100 pieces min. order



Series 768 M8 Connectors, Shielded, IP 67

Series 768 M8 Connectors, Shielded, IP 67

Series 768 provides a wide range of metric M8 connectors for small sensors and actuators. Shielded and IP-rated to IP 67, these connectors are ideally suited for industrial control networks where small sensors are required.
  • Plastic or metal shells
  • Metal housing with 360° EMI shielding
  • 3 or 4 contacts
  • Degree of protection IP67
  • Contacts have screw or solder termination
  • For cordsets go to Series 718



Series 718 M8 Single-Ended Cordsets, IP 67

Series 718 M8 Single-Ended Cordsets, IP 67

  • M8 x 1 threaded locking
  • Special version for 8 mm snap-in locking
  • PUR and PVC overmolded
  • Degree of protection IP 65/67
  • Cable lengths 2m or 5m
  • Other cable lengths upon request, 100 pieces min. order
  • For receptacles go to Series 768



Series 713 M12 Connectors, Shielded, IP 67, UL

Series 713 M12 Connectors, Shielded, IP 67, UL

Euro-style sensor connectors with M12 locking for factory automation, process control, industrial instrumentation, and commercial electronics. The Series 713 offers many different cable connectors, panel-mounted receptacles, and accessories. Connectors have industry-standard A-coding and have "Hexagon" locking sleeves for hand-tightening or torquing of connections.



Series 763 M12 Single-Ended Cordsets, IP 67, UL

Series 763 M12 Single-Ended Cordsets, IP 67, UL

  • PUR or PVC overmolded cordsets
  • 120°C version available
  • Shielded or non-shielded versions available
  • Some with UL approvals
  • Degree of protection IP 67/IP 68
  • Cable lengths 2m or 5m
  • Other cable lengths upon request, 100 pieces min. order
  • For receptacles and accessories go to Series 713



Series 765 M8 and M12 Adapters and Patchcords, IP 67

Series 765 M8 and M12 Adapters and Patchcords, IP 67

The Series 765 components are adapters, splitters, and patch cords to connect between M12 and M8 connectors.
  • Patchcords from M8 to M12 connectors
  • T/Y 2-way splitters
  • Environmental protection from IP 65 to IP 67
  • Cable length 1 m and 2 m (PUR)
  • Other cable lengths upon request, 100 pieces MOQ



Series 715 M12 Connectors, B-Coding, Shielded, IP 67

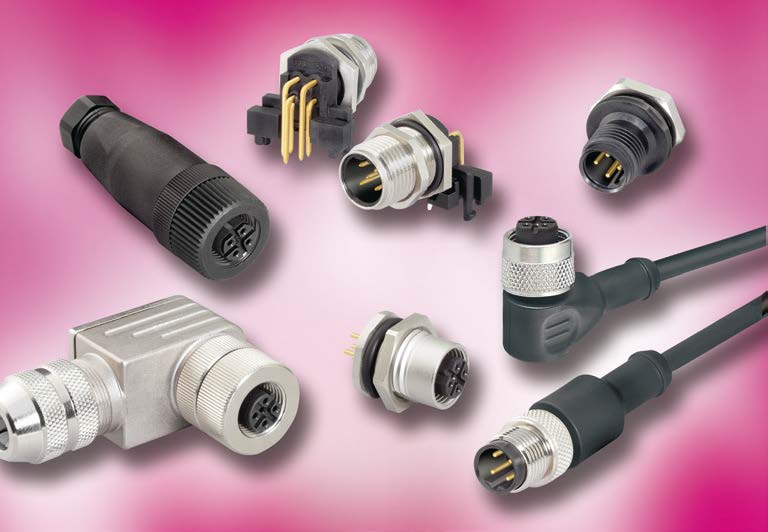

Series 715 M12 Connectors, B-Coding, Shielded, IP 67

The Binder Series 715 features B-coding, which ensures that B-coded connectors do not mate with standard A-coded connectors.



Series 766 M12 Single-Ended Cordsets, B-Coding, IP 67

Series 766 M12 Single-Ended Cordsets, B-Coding, IP 67

The cordsets of Series 766 feature the B-coded connectors of Series 715. Standard lengths are 2 or 5m, custom lengths are available.
  • M12x1 threaded locking
  • PUR or PVC overmolded
  • Degree of protection IP 67/68
  • Cable length 2m or 5m
  • Other cable lengths upon request, 100 pieces min. order
  • For receptacles go to Series 715



Series 825 - M12 Connector for Industrial Ethernet, D-Coding

Series 825 - M12 Connector for Industrial Ethernet, D-Coding

The Series 825 metal-shell connectors are for industrial networks and harsh commercial environments. They have industry-standard D-coding for Ethernet and Fieldbus use. The IP67 field-attachable connectors offer spring cage or screw termination, both aimed at providing quick and easy installations. Some connectors feature an Iris Spring for quick and reliable termination between the plug and the cable shield.



Series 876 M12 Cordsets for Industrial Ethernet, D-Coding

Series 876 M12 Cordsets for Industrial Ethernet, D-Coding

The Series 876 panel-mount connectors with Ethernet cables are for industrial networks and harsh commercial environments. They have industry-standard D-coding for Ethernet and Fieldbus use. All cordsets are available in standard 2, 5 and 10 meter lengths.



Series 815  M12 or 1/2” UNF Connectors, IP 67, mate with micro-change(R) Connectors

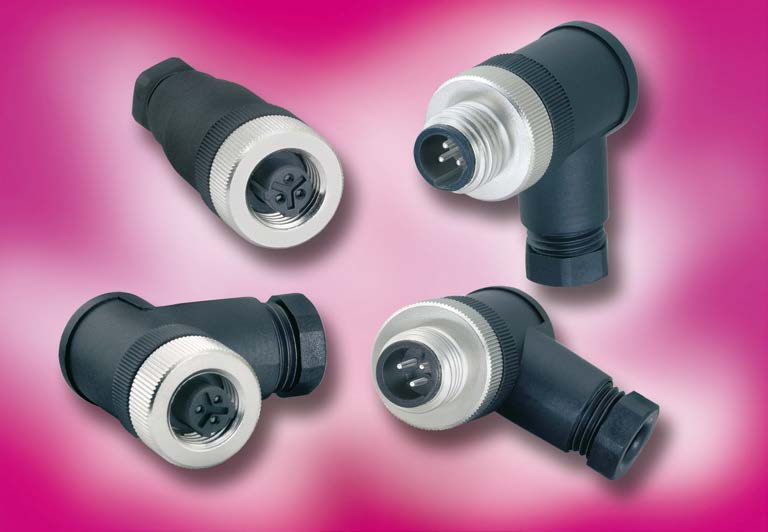

Series 815 M12 or 1/2” UNF Connectors, IP 67, mate with micro-change(R) Connectors

The Series 815 connectors are mating-compatible with the industry micro-change® connectors and are available with either a M12x1 or 1/2" UNF threaded locking.
  • US coding (micro change®)
  • Degree of protection IP 67
  • Cable assemblies possible
  • Contacts with screw termination



Series 714 M18 Sensor Connectors

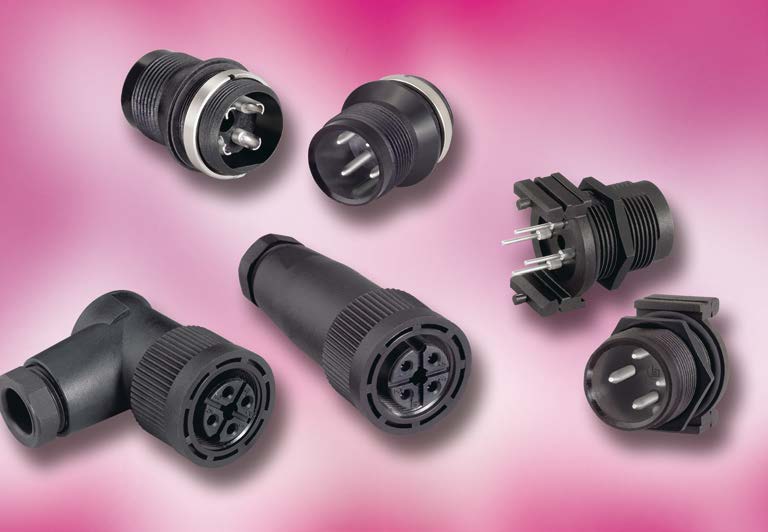

Series 714 M18 Sensor Connectors

  • Circular connector with M18x1 screw-locking
  • Plastic shells
  • Degree of protection IP 67
  • Cable assembly possible
  • Connector with screw or solder termination



Series 820  7/8” Connectors, IP 67, UL, mates with mini-change(r) Connectors

Series 820 7/8” Connectors, IP 67, UL, mates with mini-change(r) Connectors

The Binder Series 820 IP 67 connectors are mating-compatible with industry mini-change® connectors. Cable installation is done via time-saving screw termination. Contacts are gold-plated. Stainless steel locking sleeve available as an option.



Series 870 7/8” Single-Ended Cordsets, IP 67, mates with mini-change(R) Connectors

Series 870 7/8” Single-Ended Cordsets, IP 67, mates with mini-change(R) Connectors

Series 870 PUR overmolded cordsets with Series 820 Connectors. Available in 2m cable length.

  • PUR overmold and cable jacket
  • Environmentally protected to IP68
  • Straight and right-angle design
  • Intermateable with mini-change (R) connectors
  • Standard cable length 2m
  • Custom lengths and double ended cordsets available
  • For accessories go to Series 820



Series 876 & 825 M12 Network Connectors with X-Coding

Series 876 & 825 M12 Network Connectors with X-Coding

Series 876 & 825 X-Coded connectors are ideal for industrial network applications in harsh environments. It is possible to transmit up to 10 Gbps and the X-coding design conforms to IEC 61076-2-109. Overmolded male M12 double-ended cordsets and male M12 to male RJ45 CAT6A cordsets are currently available. All cordsets are available in standard 2, 5 and 10 meter lengths.

  • 10 Gbps Ethernet acc. to IEEE 802.3 CAT 6A
  • Class EA
  • ISO/IEC 11801
  • DIN EN 50173-1
  • Field-Attachable Cable Outlet 5.5 - 9mm
  • ISO/IEC 11801
  • Overmolded cables available
  • PoE+ acc. to IEEE 802.3at



Series 813  M12 Power Connectors with T-Coding

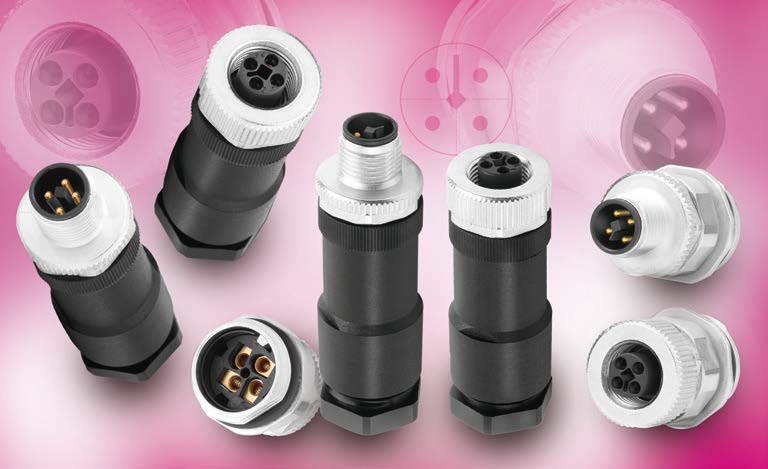

Series 813 M12 Power Connectors with T-Coding

Series 813 is one of the newest connector families of the Binder M12 product line. The T-coding eliminates the possibility of mismating with other M12 connectors. These connectors are ideally suited of power supplies in automation network environments.

  • Transfers up to 12 A per contact
  • Degree of protection IP 67
  • Contacts have screw termination
  • Accepts max. 16 AWG wires
  • Cable diameters from 8 to 10 mm



    Series 814 M12 Power Connectors with S-Coding

    Series 814 M12 Power Connectors with S-Coding

    Series 814 is one of the newest connector families of the Binder M12 product line. The S-coding eliminates the possibility of mismating with other M12 connectors. These connectors are ideally suited of power supply applications.

    • Transfers up to 12 A per contact
    • Max 630 V
    • Degree of protection IP 67
    • Contacts have screw termination
    • Accepts max. 16 AWG wires
    • Cable diameters from 8 to 10 mm



      Series 772 Network Distribution Modules, IP 67

      Series 772 Network Distribution Modules, IP 67

      • Degree of protection IP67
      • 4, 6 or 8 I/O ports for M5, M8 or M12 connectors
      • With or without network cables
      • LED indicators for operation and function
      • Mates with Series 713, 763, 765, and 623



      Series 775  AS Bus Modules and Components

      Series 775 AS Bus Modules and Components

      • Connects to flat ribbon cable bus
      • Choices of interface cable connections, including IDC
      • Wide range of ribbon cable clamps for bus hook-up
