Series 770 Connectors with IP67 Protection Unmated
Series 770 is a new connector family featuring an entirely new IP67 rated and touch-proof design. The panel-mount receptacles have an IP67 rating when unmated by covering the contacts with a spring-enforced door.
- Mated connector is IP 67-rated
- Female receptacle remains IP 67-rated in unmated condition
- Simple and reliable bayonet locking
- Touch-proof plastic housing
- 8 Gold-plated contacts arranged on a cylindrical insert. Rated at 2A ea.
- Cable outlets accept cable from 2.5-4 mm, 4-6 mm and 6-8 mm OD
- >5000 mating cycles
- Easy and quick assembly
Series 720 Plastic Snap-In Locking with Color Coding, IP 67
The Series 720 snap-in connector is a larger version of the Series 620 sub-miniature connector.
It offers high performance, with gold-plated contacts, at a very attractive price.
Custom overmolded Series 720 assemblies.
- Plastic color-coded shells
- 3 to 12 contacts per connector
- IP 67
- Internal strain relief
- Easy to assemble
Series 678 - Plastic Bayonet Locking Connector, non-shielded, IP 40
- Plastic shells, cost-effective
- Degree of protection IP 40
- 2 to 24 contacts
- Internal strain relief
- Housing diameter 20 mm

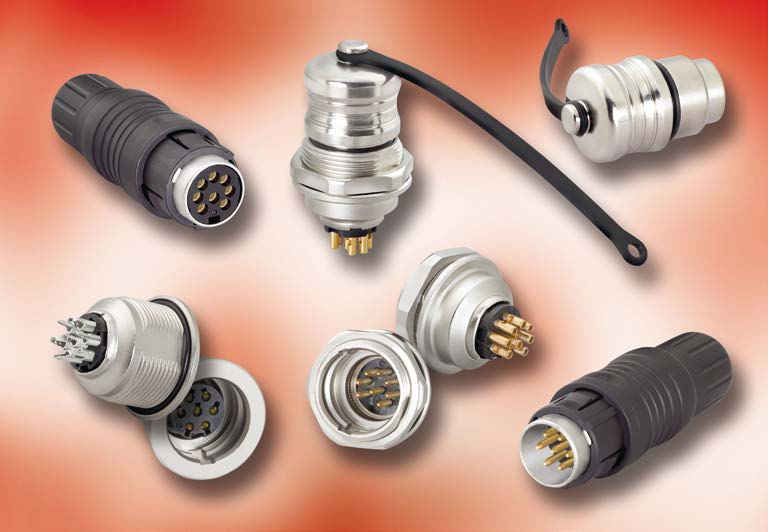

Series 440 Plastic Push-Pull Connector, Shielded, IP 67
The Series 440 push-pull locking connector is a high-performance product
ideally suited for demanding applications in medial electronics and commercial instrumentation.
The plastic shell has internal metal sleeve for 360° EMI shielding.
Similar to Series 430 in the sub-miniature section.
- Plastic shells with metal interior sleeves
- IP 67 with excellent EMI shielding
- From 3 to 19 gold-plated contacts
- Cable size 4 - 8 mm (.16 - .31 in)
- Cable collet immune to vibration

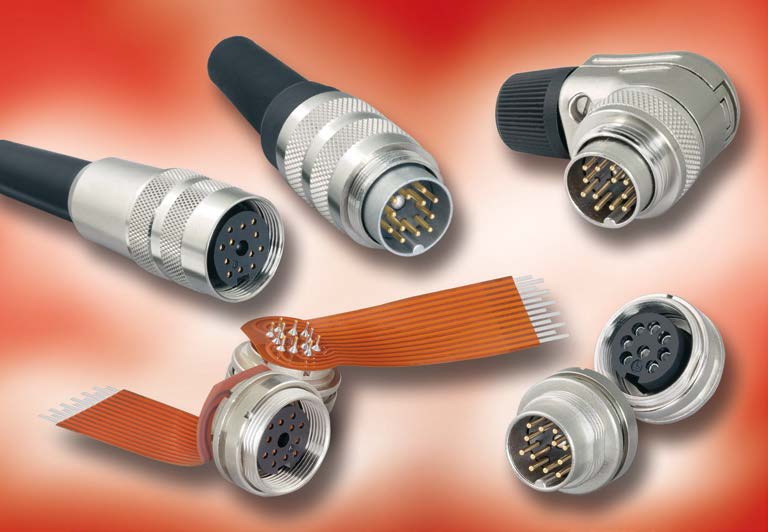

Series 581 M16 Cable Connectors, Bend Protection, Shielded, IP 40
The Binder Series 581 cable connectors offer a cost-effective alternative
to Series 423 DIN connectors.
Cable connectors have integral bend protection sleeve. A choice of cable clamp or solder lug for easy shield or ground connection.
IP40 with good EMI shielding. Receptacles are common with Series 423.
- Metal shells with good shielding
- Degree of protection IP40
- Cable clamp or solder ground lug
- 2-24 gold(Au)- or silver(Ag)-plated contacts
- Integral bend protection sleeve
Series 680 DIN Connectors, M16 Locking, External Locking Screw
The Series 680 male and female cable connectors
have all the features of Series 581 plus an external locking screw to facilitate easy mounting to a cable.
- Metal shells
- Degree of protection IP40
- 2-24 gold(Au)- or silver(Ag)-plated contacts
- Internal solder lug for good ground connection
- Integrated cable clamp and external locking screw
- Bend-protection sleeve
- For receptacles go to Series 581
Series 682 Right-Angle DIN Connectors, M16 Locking
The Series 682 DIN cable connectors are a cost-effective, right-angle
version of the Binder DIN connectors and mate with the Series 423 or Series 581 receptacles. Metal versions can be rotated in four positions to adjust for cable position.
- Metal or plastic shells
- Metal housings shielded
- Protection IP 40
- 2-24 gold(Au)- or silver(Ag)-plated contacts
- Cost-effective plastic versions available
- Internal strain relief
- For receptacles go to Series 581

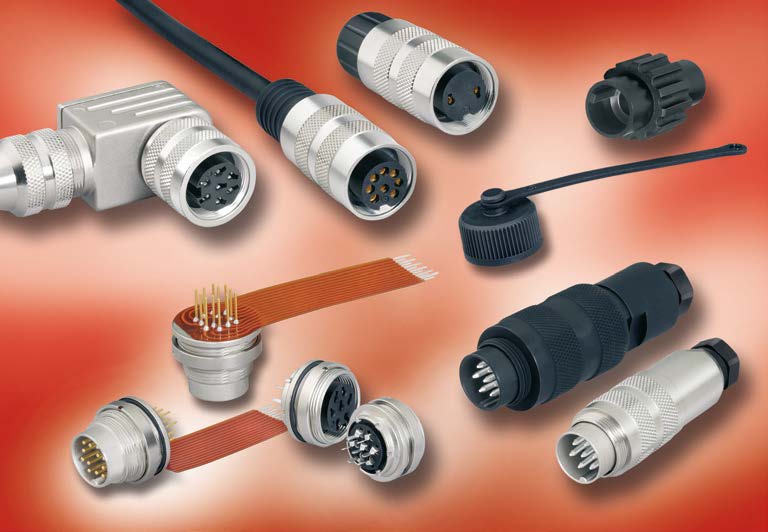

Series 423 DIN Connectors with M16 Locking
The Series 423 family of connectors are rugged, high-performance circular connectors with
excellent EMI shielding and IP67. Ideal choice for severe industrial and commercial applications.
Panel-mounted receptacle are available in many styles and mounting methods.
- Rugged metal shells
- Straight or right-angle cable connector
- Right-angle cable connectors adjustable in 4 radial positions
- Excellent 360° EMI shielding and IP67
- Internal strain relief
- 2 to 24 contacts,gold(Au)- or silver(Ag)-plated
Series 723 M16 Connectors, Black Plastic Shells
The Series 723 is a range of cost-effective DIN cable connectors
with black plastic shells in straight or right-angle versions.
- Black plastic shells
- Degree of protection IP67
- Gold(Au)- or silver(Ag)-plated contacts
- Easy to assemble
- Internal strain relief
- Right-angle connector adjustable in 4 radial positions
- For receptacles go to Series 423
Series 425 Overmolded Cordsets with Series 423 Connectors
Series 425 uses the high-performance Series 423 DIN connectors for the overmolded cordsets.
Cordsets are available in several standard cable lengths, as well as custom designs.
- PUR overmold and cable jacket
- Environmentally protected to IP67
- Gold-plated contacts
- Low profile right-angle design for tight spaces
- Shielded or non-shielded versions
- Standard cable lengths of 2-meter & 5-meters
- Custom lengths and double-ended cordsets available
- For receptacles go to Series 423
