Series 709 - Single-ended Cordsets with Series 719 Connectors, IP 40

Series 709 - Single-ended Cordsets with Series 719 Connectors, IP 40

The Series 709 offers single-ended cordsets with overmolded Series 719 connectors. Important: Panel-mounted receptacles for the right-angle cable plugs need to be mounted recessed into the panel to prevent accidental breakage of the cable connectors.
  • PUR overmold and cable jacket
  • Environmentally protected to IP40
  • Low profile right-angle design for tight spaces
  • Compact in size with only 9mm O.D.
  • Mates with Binder 719 series connectors
  • Standard cable lengths of 2-meter & 5-meters
  • Custom lengths and double ended cordsets available

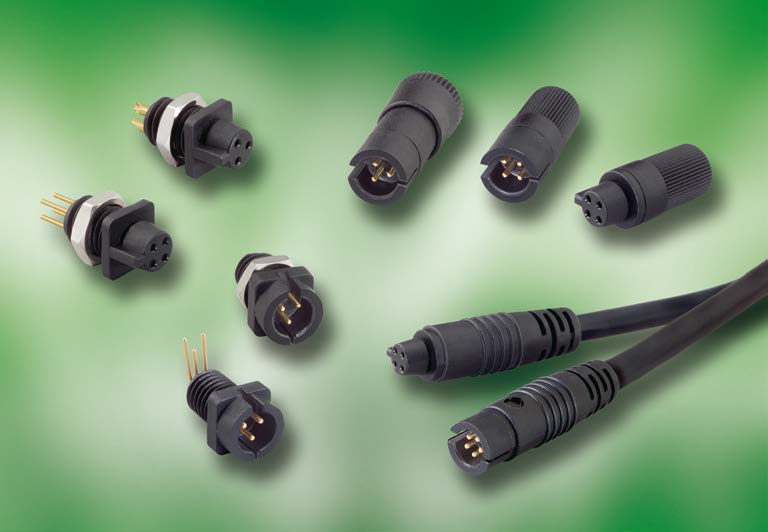

Series 719 - Plastic Snap-In Connectors, IP 40

Series 719 - Plastic Snap-In Connectors, IP 40

Series 719 is a simple, cost-effective solution for applications in medical electronics, portable instrumentation, power supplies, and consumer electronics.
  • Plastic shells
  • Degree of protection IP 40
  • With or without strain relief
  • 3 to 5 contacts per connector
  • Easy to assemble
  • For cordsets go to Series 709



Series 620 - Plastic Snap-in Connectors, IP 67

Series 620 - Plastic Snap-in Connectors, IP 67

Series 620 connectors provide a cost-effective solution for high-performance applications in medical electronics and commercial portable devices. IP 67 protection in mated condition. Larger version is Series 720

Overmolded assemblies available.

  • IP 67
  • Plastic housing with snap-in latching
  • 3 to 8 contacts per connector
  • Easy to assemble



Series 710 Plastic Bayonet Connectors, IP 40

Series 710 Plastic Bayonet Connectors, IP 40

Cost-effective solution for stationary or portable electronics in medical, industrial, or commercial applications. The reliable and secure bayonet locking system is easy to operate and can withstand high vibrations.
  • Plastic shells
  • Degree of protection IP 40
  • Cable collet for 2 cable diameters
  • 2 to 8 contacts per connector
  • Housing with integrated strain relief
  • Connector diameter only 12 mm (.47 in.)



Series 420 - Micro Push-Pull Connectors, IP 67

Series 420 - Micro Push-Pull Connectors, IP 67

The Series 420 micro push-pull locking connector is a high-performance product ideally suited for demanding applications in medial electronics and commercial instrumentation.
  • Degree of protection IP 67
  • 3 to 5 contacts per connector
  • Easy to assemble



Series 430 - Plastic Push-Pull Connectors, Shielded, IP 67

Series 430 - Plastic Push-Pull Connectors, Shielded, IP 67

The Series 430 push-pull locking connector is a high-performance product ideally suited for demanding applications in medial electronics and commercial instrumentation. The plastic shell offers touch-proof protection. An internal metal sleeve provides 360° EMI shielding. For a larger version go to Series 440 in the miniature section.
  • Degree of protection IP 40/IP 67
  • Plastic housing with 360° EMI shielding sleeve
  • 3 to 8 contacts per connector
  • Easy to assemble



Series 711 M9 Connectors, IP 40

Series 711 M9 Connectors, IP 40

Cost-effective version of the Series 712 M9 connectors. They are non-shielded and have IP40 rating.
  • Metal shells
  • 2 to 8 contacts per connector
  • Degree of protection IP 40
  • Cable collet for 2 cable sizes
  • Housing with integrated strain relief



Series 712 - M9 locking connector, Shielded, IP 67

Series 712 - M9 locking connector, Shielded, IP 67

The Series 712 is a high-performance version of Series 711 connectors. It offers excellent environmental protection at IP 67 in mated condition and 360° EMI shielding.



Series 702 - Single-Ended Cordsets with Series 711 Connectors, IP 67

Series 702 - Single-Ended Cordsets with Series 711 Connectors, IP 67

PUR overmolded single-ended cordsets with Series 711 M9 cable connectors. Cordsets mate with receptacles of Series 711 and Series 712.
  • PUR overmolded
  • 360° EMI protective shielding
  • Degree of protection IP 67
  • Mating-compatible with connector series 711 and 712
  • 2 m and 5 m standard cable length
  • Other cable lengths upon request, 100 pieces min. order
  • For receptacles go to Series 712
