Power Connectors



Sensor M12 AC S-Coded Connectors

Sensor M12 AC S-Coded Connectors

Series 814 is one of the newest connector families of the Binder M12 product line. The S-coding eliminates the possibility of mismating with other M12 connectors. These connectors are ideally suited of power supply applications.

  • Transfers up to 12 A per contact
  • Max 630 V
  • Degree of protection IP 67
  • Contacts have screw termination
  • Accepts max. 16 AWG wires
  • Cable diameters from 8 to 10 mm



    Sensor M12 DC T-Coded Connectors

    Sensor M12 DC T-Coded Connectors

    Series 813 is one of the newest connector families of the Binder M12 product line. The T-coding eliminates the possibility of mismating with other M12 connectors. These connectors are ideally suited of power supplies in automation network environments.

    • Transfers up to 12 A per contact
    • Degree of protection IP 67
    • Contacts have screw termination
    • Accepts max. 16 AWG wires
    • Cable diameters from 8 to 10 mm



      Sensor 7/8” Connectors

      Sensor 7/8” Connectors

      The Binder Series 820 and 870 IP 67 connectors are mating-compatible with industry standard mini and DeviceNet™ connectors. Cable installation is done via time-saving screw termination. Contacts are gold-plated. Stainless steel locking sleeve available as an option.
      • Degree of protection IP 67
      • Connectors have UL approval
      • contacts with screw termination
      • Series 870 Cordsets Available

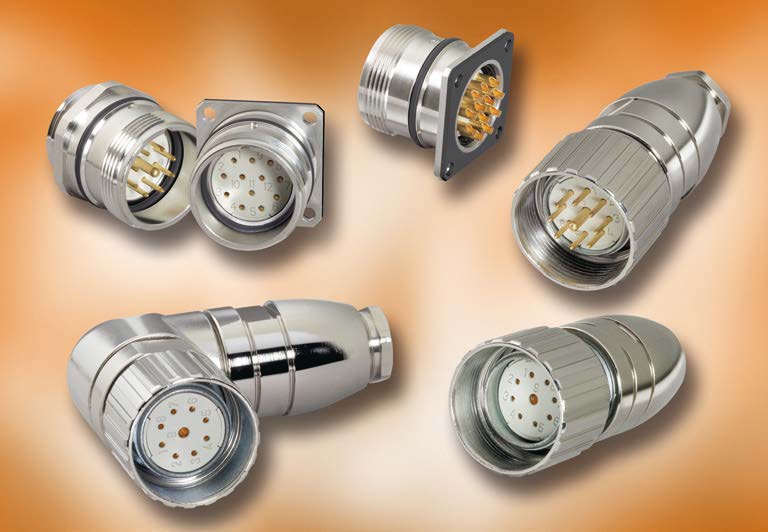

      Power M23 Connectors

      Power M23 Connectors

      • Metal shells
      • 6 to 19 contacts per connector
      • Degree of protection IP 67
      • With or without shielding

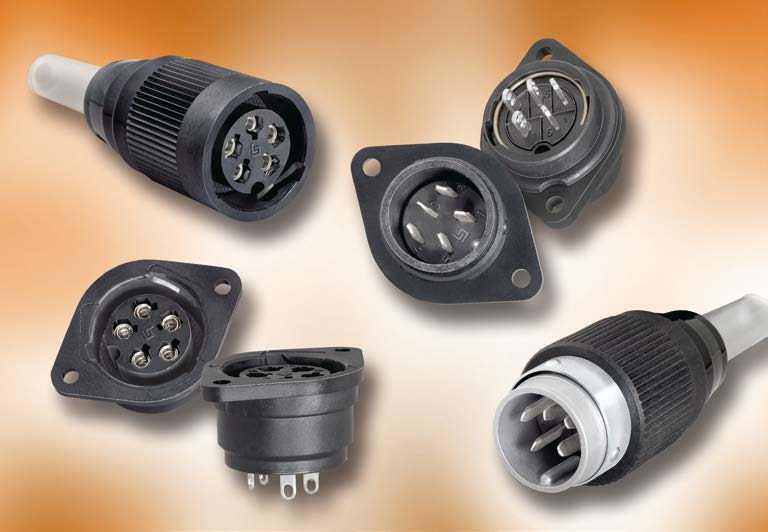

      Power Bayonet Connectors

      Power Bayonet Connectors

      • Plastic shells
      • 3 to 12 contacts
      • Degree of protection IP 40
      • Internal strain relief
      • Transparent bend protection sleeve

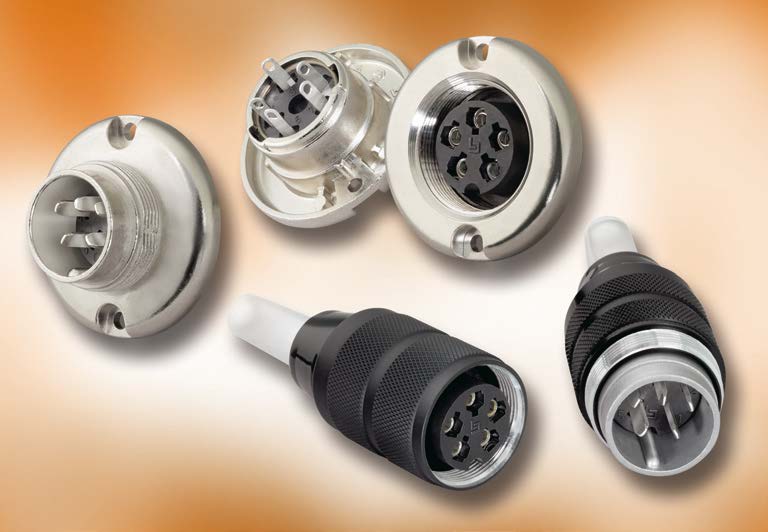

      Power M25 Connectors

      Power M25 Connectors

      • Black anodized aluminum shells
      • Degree of protection IP 40
      • Internal strain relief
      • Transparent bend protection sleeve



      Power RD24 Connectors

      Power RD24 Connectors

      Series 693 has VDE, SEV, and UL approval. Series 692 is similar to Series 693 but does not have agency approvals. Crimp contacts need to be ordered separately and are listed in the accessories section.
      • VDE, SEV, and UL Recognized Component
      • Field-attachable cable connectors OD 29 mm
      • Plastic shells with IP 67 rating
      • 4 or 7 silver-plated contacts per connector
      • Up to 16 A per contact
      • Screw, crimp, or solder termination
      • For Series 692 please contact Binder-USA sales



      Power Harsh Environment Connectors

      Power Harsh Environment Connectors

      The Series 696 HEC (Harsh Environment Connector) is a newly designed circular connector that has been developed specifically for outdoor applications. High-grade materials as well as innovative constructive details allow the use in rough and demanding environmental conditions.

      • Light and stable plastic design
      • Highly resistant against climatic influences such as UV exposure
      • Very good resistance against industrial and chemical substances
      • Resistance against shock and vibration
      • UL and VDE approval
      • Bayonet locking for easy and secure locking
      • IP68 / IP69K for high pressure wash downs
      • 8 Contacts (4 + 3 + PE)
      • 3 A Signal, 25 A Power
      • 60 V Signal, 400 V Power



      Power RD30 Connectors

      Power RD30 Connectors

      Industrial machine and power connectors offering high current load and operating voltage. Environmental protection IP 65 in mated condition.
      • Plastic shells
      • Shells 40 mm OD
      • 4 to 24 contacts per connector
      • Up to 20 A per contact
      • Degree of protection IP 65
      • Contacts with solder or screw termination
      • Internal strain relief
      • Cable outlet up to 16 mm (.63 in.)
      • Right-angle connector adjustable in 8 angular positions
