Automation technology - Solenoid valve connectors
Model B
Size B Adapter, Contacts: 2+PE, unshielded, pluggable, IP65

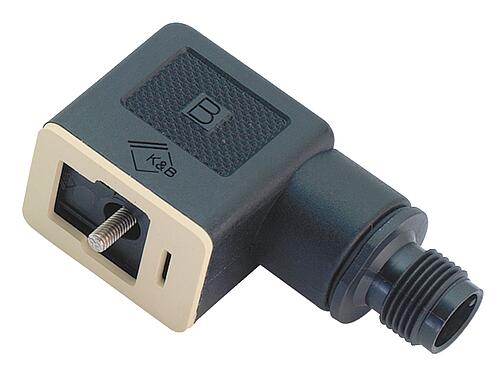

Illustration 99 5712 00 03 - Size B Adapter, Contacts: 2+PE, unshielded, pluggable, IP65 — Illustration

3D View 99 5712 00 03 - Size B Adapter, Contacts: 2+PE, unshielded, pluggable, IP65 — 3D View

Scale drawing 99 5712 00 03 - Size B Adapter, Contacts: 2+PE, unshielded, pluggable, IP65 — Scale drawing

Contact arrangement (Plug-in side) 99 5712 00 03 - Size B Adapter, Contacts: 2+PE, unshielded, pluggable, IP65 — Contact arrangement (Plug-in side)

Part no.	99 5712 00 03
Connector design	Adapter
Version	Adapter
Connector locking system	Central bolt
Termination	pluggable
Degree of protection	IP65
Cross-sectional area	max. 0.34 mm² / AWG 22
Temperature range from/to	-25 °C / 85 °C
Mechanical operation	> 50 Mating cycles
Weight (g)	22.95
Customs tariff number	85369010

Rated voltage	60 V
Rated impulse voltage	8000 V
Rated current (40 °C)	4.0 A
Insulation resistance	≥ 10¹⁰ Ω
Pollution degree	3
Overvoltage category	II
Insulating material group	II
EMC compliance	unshielded

Contact body material	PA (UL94 HB)
Contact material	CuSn (bronze) / CuZn (brass)
Contact plating	Ni (nickel)
REACH SVHC	CAS 7439-92-1 (Lead)
SCIP number	6dd3a9f3-f3e8-471d-b57f-a49b6ce142e7

eCl@ss 11.1	27-44-01-02
ETIM 7.0	EC002635

Low Voltage Directive	2014/35/EU (EN 60204-1:2018;EN 60529:1991)
RoHS Directive	2011/65/EU (EN 50581:2012)

Report error on this page

General Disclaim Notice

The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
The user must take appropriate safety precautions to ensure that the connector cannot be accidentally disconnected. In addition, the user must ensure that the cable is suitably secured.
