Size C Female solenoid valve connector, Contacts: 2+2PE, unshielded, moulded on the cable, IP67, PUR, black, Circuit Z20, 3 m

Illustration 33 5937 300 520 - Size C Female solenoid valve connector, Contacts: 2+2PE, unshielded, moulded on the cable, IP67, PUR, black, Circuit Z20, 3 m — Illustration

Illustration 33 5937 300 520 - Size C Female solenoid valve connector, Contacts: 2+2PE, unshielded, moulded on the cable, IP67, PUR, black, Circuit Z20, 3 m — Illustration

3D View 33 5937 300 520 - Size C Female solenoid valve connector, Contacts: 2+2PE, unshielded, moulded on the cable, IP67, PUR, black, Circuit Z20, 3 m — 3D View

Pin assignment plans 33 5937 300 520 - Size C Female solenoid valve connector, Contacts: 2+2PE, unshielded, moulded on the cable, IP67, PUR, black, Circuit Z20, 3 m — Pin assignment plans

Scale drawing 33 5937 300 520 - Size C Female solenoid valve connector, Contacts: 2+2PE, unshielded, moulded on the cable, IP67, PUR, black, Circuit Z20, 3 m — Scale drawing

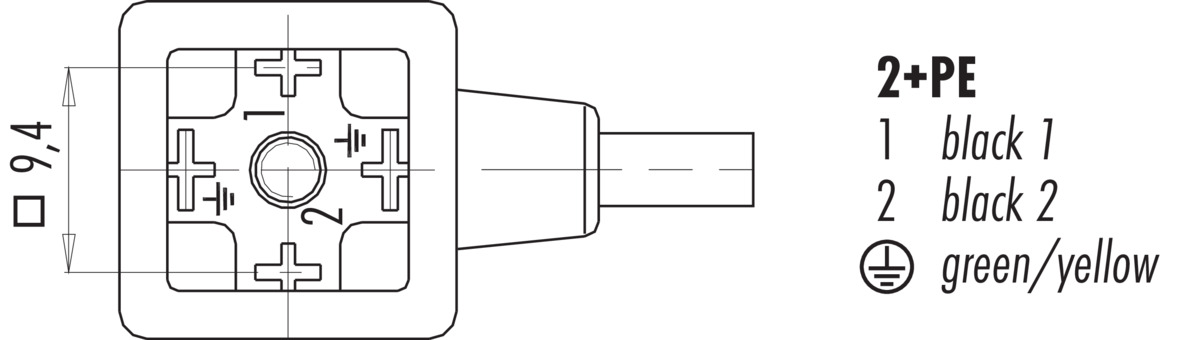

Contact arrangement (Plug-in side) 33 5937 300 520 - Size C Female solenoid valve connector, Contacts: 2+2PE, unshielded, moulded on the cable, IP67, PUR, black, Circuit Z20, 3 m — Contact arrangement (Plug-in side)

Part no.	33 5937 300 520
Connector design	Female solenoid valve connector
Cable length	3 m
Version	Connector socket angled
Connector locking system	Central bolt
Termination	moulded on the cable
Degree of protection	IP67
Cross-sectional area	0.75 mm² / AWG 18
Temperature range from/to	-25 °C / 80 °C
Mechanical operation	> 50 Mating cycles
Additional information	Circuit Z20
Weight (g)	175.70
Customs tariff number	85444290

Rated voltage	24 V
Rated impulse voltage	800 V
Rated current (40 °C)	4.0 A
Insulation resistance	≥ 10¹⁰ Ω
Pollution degree	3
Overvoltage category	III
Insulating material group	I
EMC compliance	unshielded
Wiring	Z20

Housing material	PBT
Contact body material	PBT
Contact material	CuSn (bronze)
Contact plating	Ag (silver)
REACH SVHC	CAS 7439-92-1 (Lead)
SCIP number	SCIP-number not available

eCl@ss 11.1	27-06-03-11
ETIM 7.0	EC001855

Structure of the cable
Cable diameter	5.9 mm
Sheath material	PUR
Single-lead structure	4 x 0.75 mm
Cable color	black
Other features
Halogen free	yes
