Part no.: 09 0642 400 05

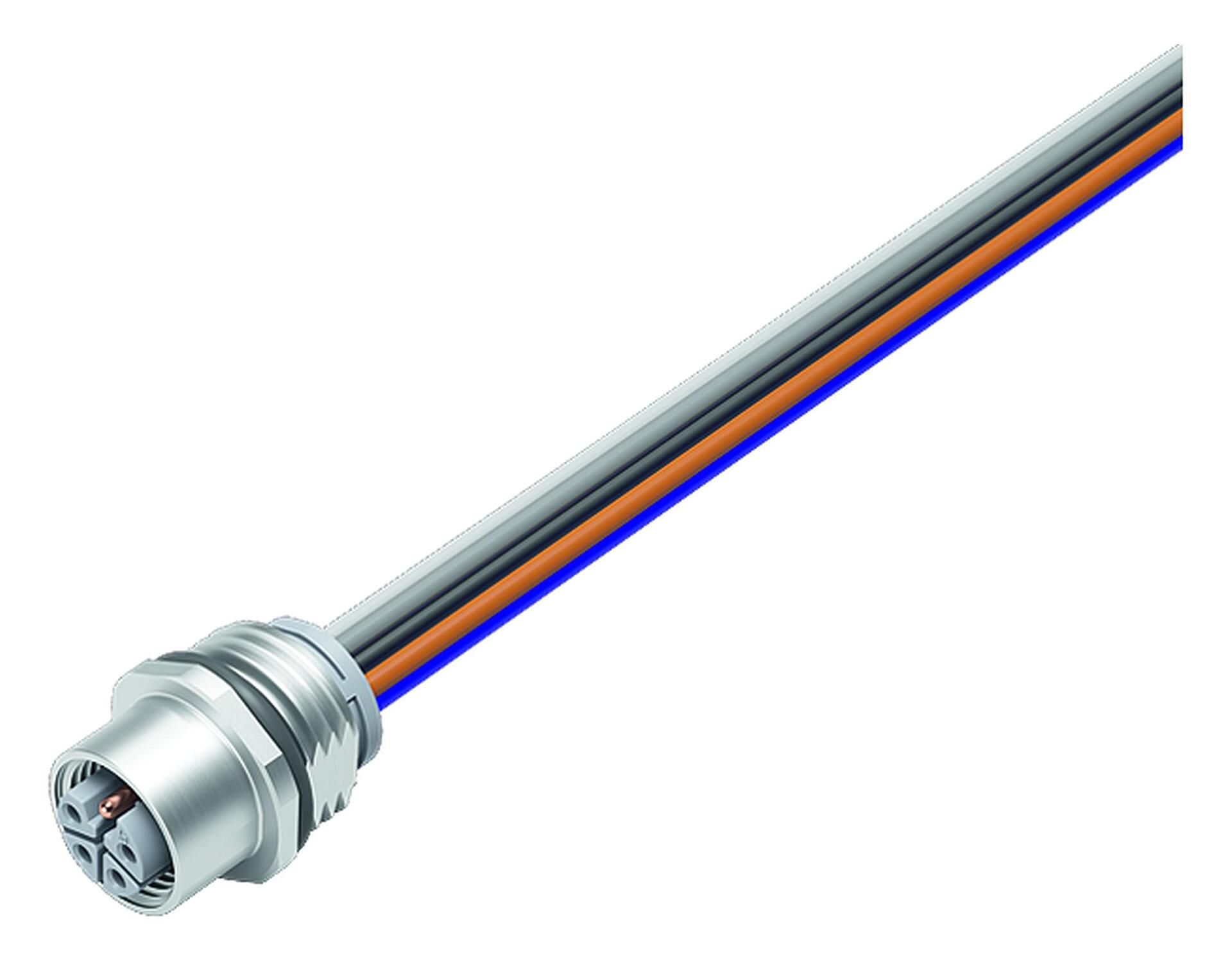

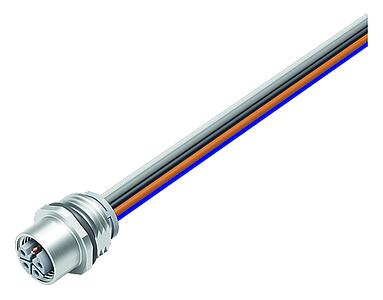

M12 Female panel mount connector, Contacts: 4+FE, unshielded, single wires, IP68, UL, M16x1.5

M12-L, series 823, Automation Technology - Voltage and Power Supply
Compare product
Downloads
This female panel mount connector with screw locking and a pin count of 4+FE is according to its protection class IP68 Dustproof and complete protection against contact. Protection against permanent submersion. Unless otherwise specified, protection up to 1 meter water depth. It can be used in areas with a pollution degree of 3. In places where contamination can occur that is conductive or can become conductive through condensation. With temperatures ranges of -40 °C/105 °C is this unshielded M12-L coded female panel mount connector designed for both severe cold and severe heat. UL Due to the qualified rated voltage of 63 V and the rated current of 16,0 A it is perfectly tuned for its field of application. It complies with the type standard DIN EN IEC 61076-2-111:2018-10 and VDE 0687-76-2-111:2018-10.
General features
Moreless
Part no. 09 0642 400 05
Connector design Female panel mount connector
Type standard DIN EN IEC 61076-2-111:2018-10;VDE 0687-76-2-111:2018-10
Version Connector socket straight
Connector locking system screw
Termination single wires
Degree of protection IP68
Cross-sectional area AWG 14
Temperature range from/to -40 °C / 105 °C
Mechanical operation > 100 Mating cycles
Weight (g) 35.78
Customs tariff number 85369010
Country of Origin DE
Rated voltage 63 V
Rated impulse voltage 1500 V
Rated current 16.0 A
Insulation resistance > 1010 Ω
Pollution degree 3
Overvoltage category III
Insulating material group I
EMC compliance unshielded
Housing material Zinc die-cast nickel-plated
Contact body material PA
Contact material CuSn (bronze)
Contact plating Au (gold)
Locking material Zinc die-cast nickel-plated
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number c83506d9-c310-4962-9888-e2c800d09772
eCl@ss 11.1 27-44-01-09
ETIM 9.0 EC003569
General Disclaim Notice
  1. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  2. Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
  3. To lock the cable connector with the device connector, the threaded ring is tightened "hand-tight" (approx. 60 cNm).
