  4. M12 Male cable connector, Contacts: 5, 5.0-8.0 mm, shieldable, screw clamp, IP67, UL
Part no.: 99 1439 810 05

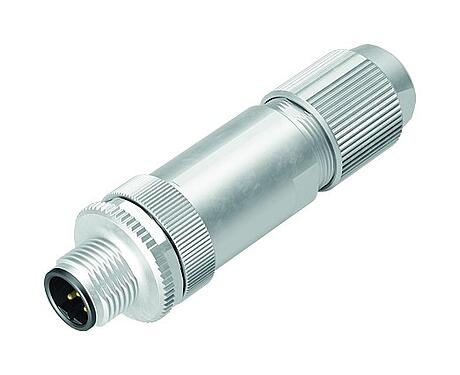

M12 Male cable connector, Contacts: 5, 5.0-8.0 mm, shieldable, screw clamp, IP67, UL

M12-B, series 715, Automation Technology - Data Transmission
Available numbers of contacts
Compare product
Downloads
General features
Moreless
Part no. 99 1439 810 05
Connector design Male cable connector
Type standard DIN EN 61076-2-101
Version Connector pin straight
Connector locking system screw
Termination screw clamp
Degree of protection IP67
Cross-sectional area max. 0.75 mm² / AWG 18
Cable outlet 5.0-8.0 mm
Temperature range from/to -40 °C / 85 °C
Mechanical operation > 50 Mating cycles
Weight (g) 47.68
Customs tariff number 85369010
Country of Origin HU
Rated voltage 60 V
Rated impulse voltage 1500 V
Rated current 4.0 A
Insulation resistance ≥ 1010 Ω
Pollution degree 3
Overvoltage category II
Insulating material group III
EMC compliance shieldable
Shield connection Iris type spring
Housing material Zinc die-cast nickel-plated
Contact body material PA
Contact material CuZn (brass)
Contact plating Au (gold)
Locking material Zinc die-cast nickel-plated
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number 62e69552-7943-4581-bbbf-3e5a24e29a67
eCl@ss 11.1 27-44-01-02
ETIM 9.0 EC002635
Low Voltage Directive 2014/35/EU (EN 60204-1:2018;EN 60529:1991)

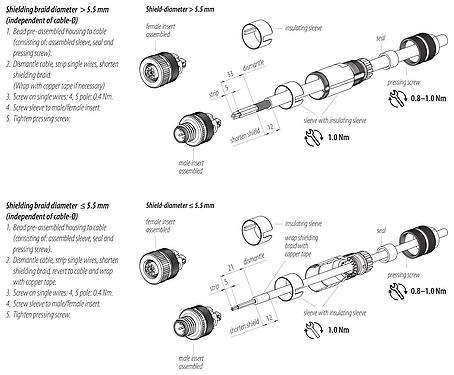

General Disclaim Notice
  1. The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
  2. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  3. To protect against unintentional opening of the connector, the thread between the housing and the connector head must be secured with a suitable cyanoacrylate adhesive when used in circuits with voltages dangerous to the touch. This does not apply to connectors used in SELV and PELV circuits according to IEC 61140 (EN 61140, VDE 0140-1).
  4. Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
  5. The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
  6. Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
  7. The plug connector is not suitable for mains voltages Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
  8. To lock the cable connector with the device connector, the threaded ring is tightened "hand-tight" (approx. 60 cNm).
