Part no.: 77 8406 0000 30709-0185

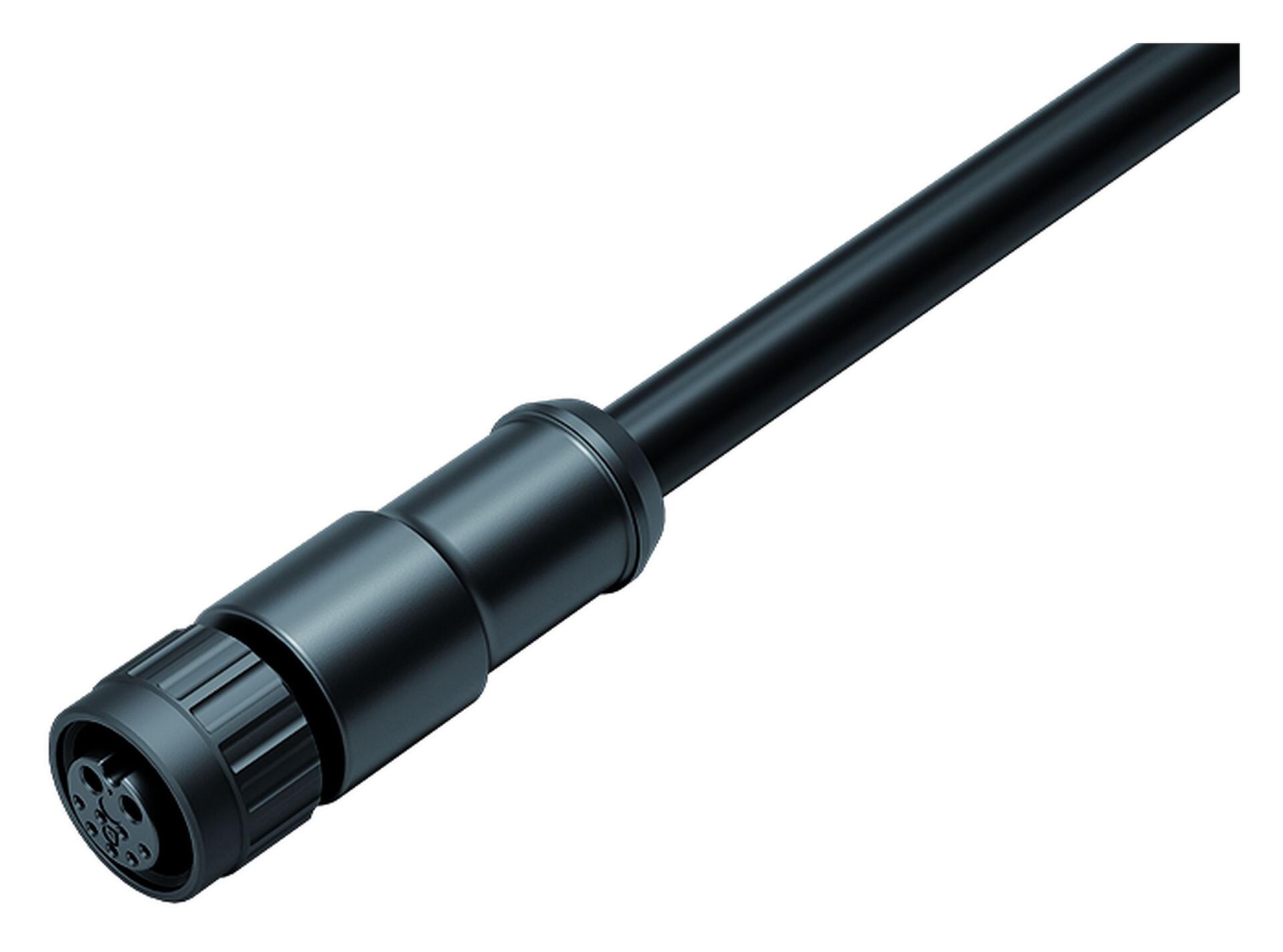

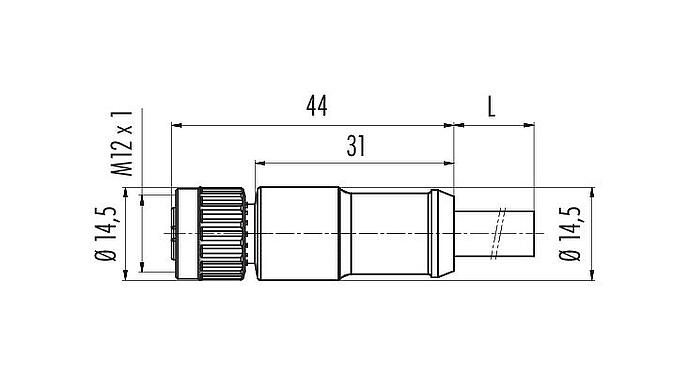

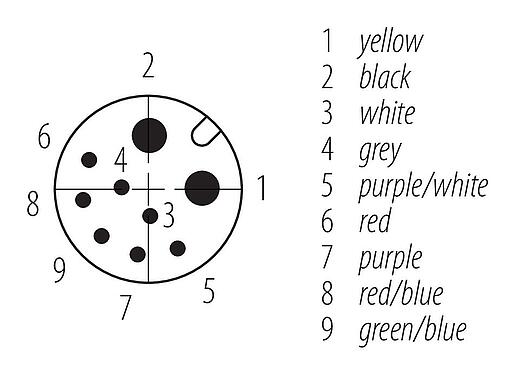

M12 Female cable connector, Contacts: 2+7, moulded on the cable, IP67, PUR, black, Power: 2 x 0.75 (AWG 18), Signal: 7 x 0.14 (AWG 26), 1.85 m
M12-Hybrid, series 767, Automation Technology - Data Transmission
This female cable connector with screw locking and a pin count of 2+7 is according to its protection class IP69 Dustproof and complete protection against contact and protection against water during high pressure/steam jet cleaning, specific for road vehicles. It can be used in areas with a pollution degree of 2. In places where light, non-conductive soiling may occur, but temporary conductivity due to condensation must be expected in some cases. With temperatures ranges of -25 °C/85 °C is this M12-Hybrid female cable connector designed for both severe cold and severe heat. Due to the qualified rated voltage of Power: 63 V, Signal: 0,5 A and the rated current of 0,5 A Signal / 12 A Power it is perfectly tuned for its field of application.
General features
MorelessPart no. | 77 8406 0000 30709-0185 |
Connector design | Female cable connector |
Cable length | 1.85 m (Other lengths are available on request). |
Version | Connector socket straight |
Connector locking system | screw |
Termination | moulded on the cable |
Degree of protection | IP67 |
Cross-sectional area | Power: 0.75–1.5 mm², Signal: 0.14–0.25 mm² / Power: AWG 20-18, Signal: AWG 26-24 |
Temperature range from/to | -25 °C / 85 °C |
Mechanical operation | > 100 Mating cycles |
Weight (g) | 129.00 |
Customs tariff number | 85444290 |
Country of Origin | DE |
Electrical parameters
MorelessRated voltage | Power: 63 V, Signal: 12.5 V |
Rated impulse voltage | Power: 800 V, Signal: 500 V |
Rated current | 12 A Power / 0,5 A Signal |
Pollution degree | 2 |
Overvoltage category | II |
Insulating material group | I |
Material
MorelessHousing material | PUR |
Contact body material | TPU |
Contact material | CuSn (bronze) |
Contact plating | Au (gold) |
Locking material | PA |
REACH SVHC |
CAS 7439-92-1 (Lead) |
SCIP number | 3144a082-1ade-4507-85a6-84a879637a68 |
Classifications
MorelessETIM 9.0 | EC002638 |
Cable data
MorelessStructure of the cable | |
Cable diameter | 7.0 mm |
Cross section | Power: 2 x 0.75 (AWG 18), Signal: 7 x 0.14 (AWG 26) |
Sheath material | PUR |
Single-lead insulation | PP |
Single-lead structure | 2 x 0.75 mm² / 7 x 0.14 mm² |
Cable color | black |
Mechanical properties | |
Bending radius, fixed cable | 3 x Ø |
Bending radius, moving cable | 9 x Ø |
Thermal properties | |
Temperature range cable in move from/to | -20 °C / 60 °C |
Temperature range cable fixed from/to | -40 °C / 85 °C |
General Disclaim Notice
- The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
- The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
