RD24 Machine connector IP67

Series PDF (2 MB)
Accessory as PDF (222 KB)

Connectors of the 692/693 series have 3+PE (rated current 16 A) or 6+PE (rated current 10 A) contacts, they are available with solder, crimp or screw terminals and moulded cable. With IP67 protection, the series offers straight and angled cable plugs and receptacles as well as flange versions with dimensions of 38mm x 29mm. It has RD24 screw locking, the operating temperature range is between -40 °C and +100 °C and the connection cross-section is AWG 16 or max. AWG 18. The connectors are VDE, SEV and UL approved.

Power Connectors-RD24-Male cable connector_692_1_00
99 0209 00 04
RD24 Male cable connector, Contacts: 3+PE, 6.0-9.0 mm, unshielded, screw clamp, IP67, PG 9
RD24, series 692, Power Connectors
Details
Power Connectors-RD24-Male cable connector_692_1_00
99 0213 00 07
RD24 Male cable connector, Contacts: 6+PE, 6.0-9.0 mm, unshielded, solder, IP67, PG 9
RD24, series 692, Power Connectors
Details
Power Connectors-RD24-Male cable connector_692_1_00
99 0217 00 07
RD24 Male cable connector, Contacts: 6+PE, 6.0-8.0 mm, unshielded, screw clamp, IP67, PG 9
RD24, series 692, Power Connectors
Details
Power Connectors-RD24-Male cable connector_692_1_00
99 0201 00 07
RD24 Male cable connector, Contacts: 6+PE, 6.0-8.0 mm, unshielded, crimping (Crimp contacts must be ordered separately), IP67, PG 9
RD24, series 692, Power Connectors
Details

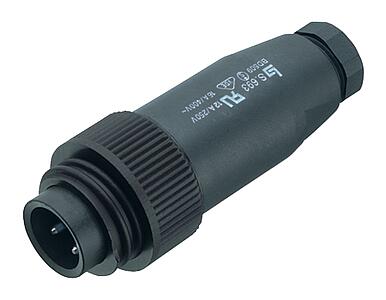

Power Connectors-RD24-Male cable connector_693_1_00
99 4221 00 04
RD24 Male cable connector, Contacts: 3+PE, 6.0-9.0 mm, unshielded, screw clamp, IP67, UL, ESTI+, VDE, PG 9
RD24, series 693, Power Connectors
Details
Power Connectors-RD24-Male cable connector_693_1_00
99 4225 00 07
RD24 Male cable connector, Contacts: 6+PE, 6.0-9.0 mm, unshielded, solder, IP67, UL, ESTI+, VDE, PG 9
RD24, series 693, Power Connectors
Details
Power Connectors-RD24-Male cable connector_693_1_00
99 4217 00 07
RD24 Male cable connector, Contacts: 6+PE, 6.0-8.0 mm, unshielded, screw clamp, IP67, UL, ESTI+, VDE, PG 9
RD24, series 693, Power Connectors
Details
Power Connectors-RD24-Male cable connector_693_1_00
99 4201 00 07
RD24 Male cable connector, Contacts: 6+PE, 6.0-8.0 mm, unshielded, crimping (Crimp contacts must be ordered separately), IP67, UL, ESTI+, VDE, PG 9
RD24, series 693, Power Connectors
Details

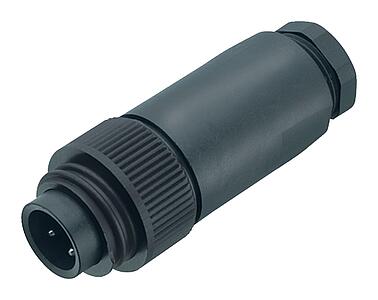

Power Connectors-RD24-Male cable connector_692_1_15
99 0209 110 04
RD24 Male cable connector, Contacts: 3+PE, 8.0-10.0 mm, unshielded, screw clamp, IP67, PG 11
RD24, series 692, Power Connectors
Details
Power Connectors-RD24-Male cable connector_692_1_15
99 0213 110 07
RD24 Male cable connector, Contacts: 6+PE, 8.0-10.0 mm, unshielded, solder, IP67, PG 11
RD24, series 692, Power Connectors
Details
Power Connectors-RD24-Male cable connector_692_1_15
99 0217 110 07
RD24 Male cable connector, Contacts: 6+PE, 8.0-10.0 mm, unshielded, screw clamp, IP67, PG 11
RD24, series 692, Power Connectors
Details
Power Connectors-RD24-Male cable connector_692_1_15
99 0201 110 07
RD24 Male cable connector, Contacts: 6+PE, 8.0-10.0 mm, unshielded, crimping (Crimp contacts must be ordered separately), IP67, PG 11
RD24, series 692, Power Connectors
Details
