Connector type
The connector type can be used to distinguish our products for installation in a device housing from cable parts. The connector type describes the difference between connectors that are mounted on enclosures and connectors that are mounted on cables.
Gender
A connector consists of the male part (pin) and the female part (socket). Depending on the design, the male or female part is either permanently installed or are located at the end of a cable.
Number of contacts
This indicates the number of contacts the connector has.
Version
The choice of version allows the definition of certain technical specifications – for example the type of cable outlet or the size.
Locking Type
The locking system describes how the pin and socket elements are joined.
Rated voltage
The rated voltage is the electrical voltage assigned to the connector.
Rated current
The rated current is the electrical current that is assigned to the connector.
Degree of protection
The degrees of protection according to IEC60529 apply to various articles and provide information on protection against the intrusion of water and solids such as dust.
Shielded Option
Electromagnetic compatibility (EMC) means that a connector is shielded or shieldable. This is required when it is necessary to protect the signals or data conducted by the connector, as well as to protect external devices, from disturbance due to electromagnetic effects.
Material of housing
Depending on the area of application or requirements, connectors are made of different materials. We offer metal and plastic housings for our items as the housing material.
Termination
The termination type determines how cables, single wires or PCBs can be joined with the connector.

Push-pull connectors have revolutionized the realm of connections with their innovative and efficient design. The push-pull connector is characterized by its user-friendly locking mechanism and offers an easy solution for secure and quick cable connections. Whether it's push-pull cable ends or push-pull cable end fittings, these connectors excel in providing a reliable and robust link.

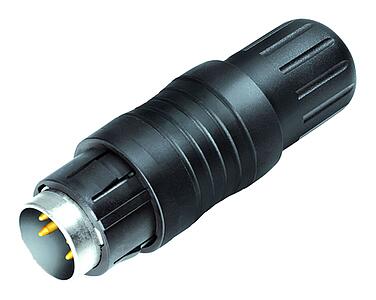

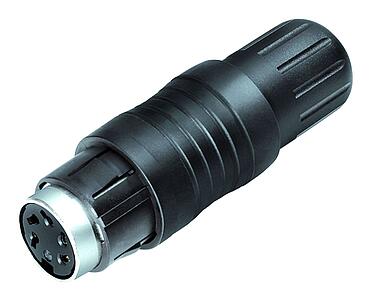

Circular Push Pull Connector


The circular push-pull connectors have a streamlined design that facilitates easy insertion and removal, reducing the complexity of cable management. The push-pull locking mechanism enhances convenience, allowing users to engage and disengage the connectors effortlessly.


Push Pull Connector IP67


With a push-pull locking system and protection of up to IP67, the 430 series comes in both cable connector and panel mount versions – both of which are shieldable if required. Available with 3 to 8 contacts rated between 1A and 4A, termination is solder with wire sizes from 0.14mm² to 0.25mm². The diameter of the cable connector is 14.5mm while the panel mount version measures 17.5mm.


Find your suitable push-pull connector from binder:
