M16-X connector

Series PDF (576 KB)
Accessory as PDF (148 KB)

The M16-X connector is a unique product in industrial Ethernet connectivity, specifically tailored for seamless and high-speed data transmission.


M16 X-coded connector


Recognized as an M16 X-coded connector, this innovative solution embodies precision and reliability, fulfilling the demands of industrial automation. Engineered with the X-coded M16 connector configuration, it ensures secure and efficient data transmission to suit the demands for high performance. M16 connector with X coding is a robust product, making sure there is steadfast and uninterrupted data flow within industrial ecosystems.


X-coded M16 connector


The 415 series of X-coded M16 connectors from binder can handle data transfer rates up to an impressive 10 Gbits/s. The 8-contact series includes a cable connector and a cable socket as well as a flange socket for front connection.


Find your suitable M16-X connector from binder:

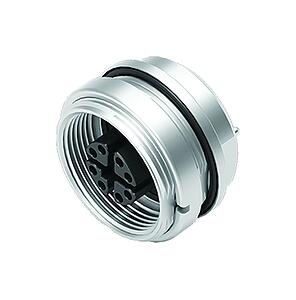

Automation Technology - Data Transmission--Female panel mount connector_415-X_4_FD
99 4174 90 08
M16 Female panel mount connector, Contacts: 8, shieldable, THR, IP67
M16-X, series 415, Automation Technology - Data Transmission
Details

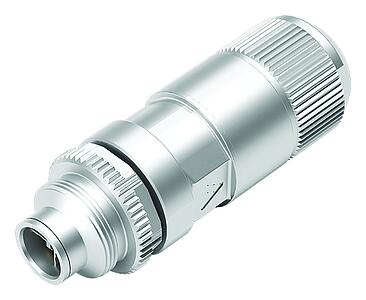

Automation Technology - Data Transmission--Male cable connector_415-X_1_KS
99 4171 00 08
M16 Male cable connector, Contacts: 8, 5.5-9.0 mm, shieldable, IDC, IP67
M16-X, series 415, Automation Technology - Data Transmission
Details

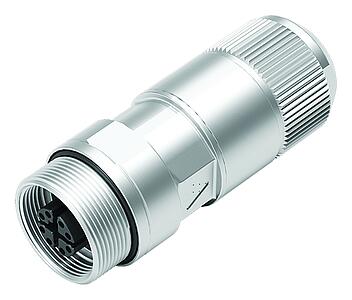

Automation Technology - Data Transmission--Female cable connector_415-X_2_KD
99 4172 00 08
M16 Female cable connector, Contacts: 8, 5.5-9.0 mm, shieldable, IDC, IP67
M16-X, series 415, Automation Technology - Data Transmission
Details
