  4. M16 Female cable connector, Contacts: 8, 5.5-9.0 mm, shieldable, IDC, IP67
Part no.: 99 4172 00 08

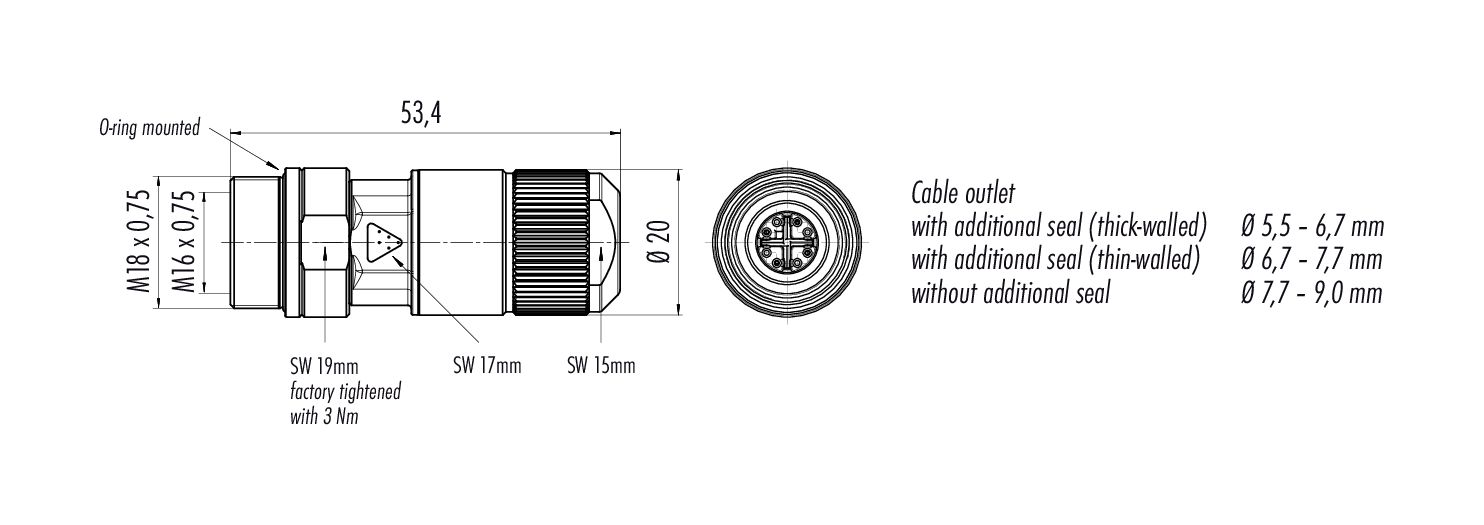

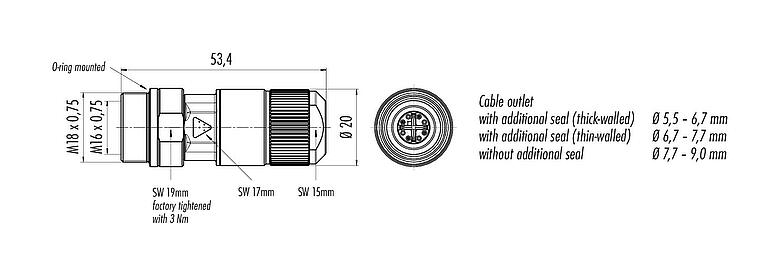

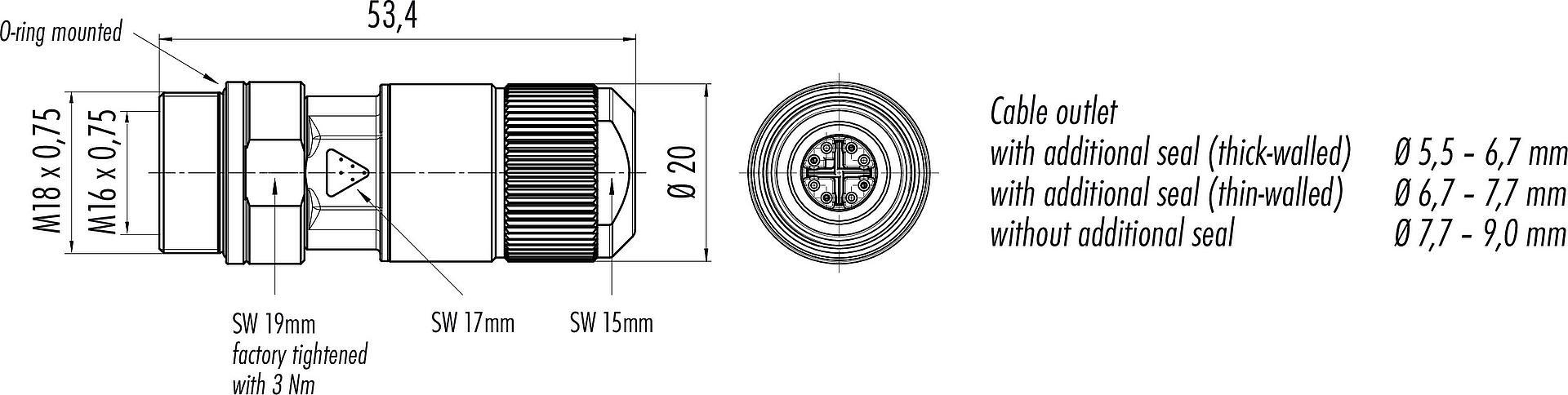

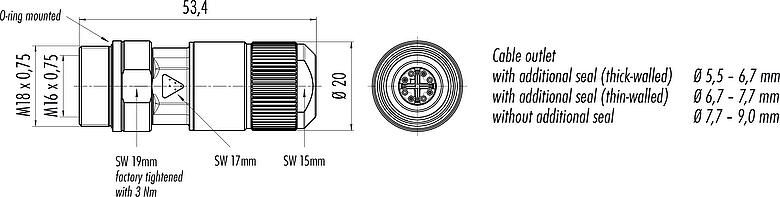

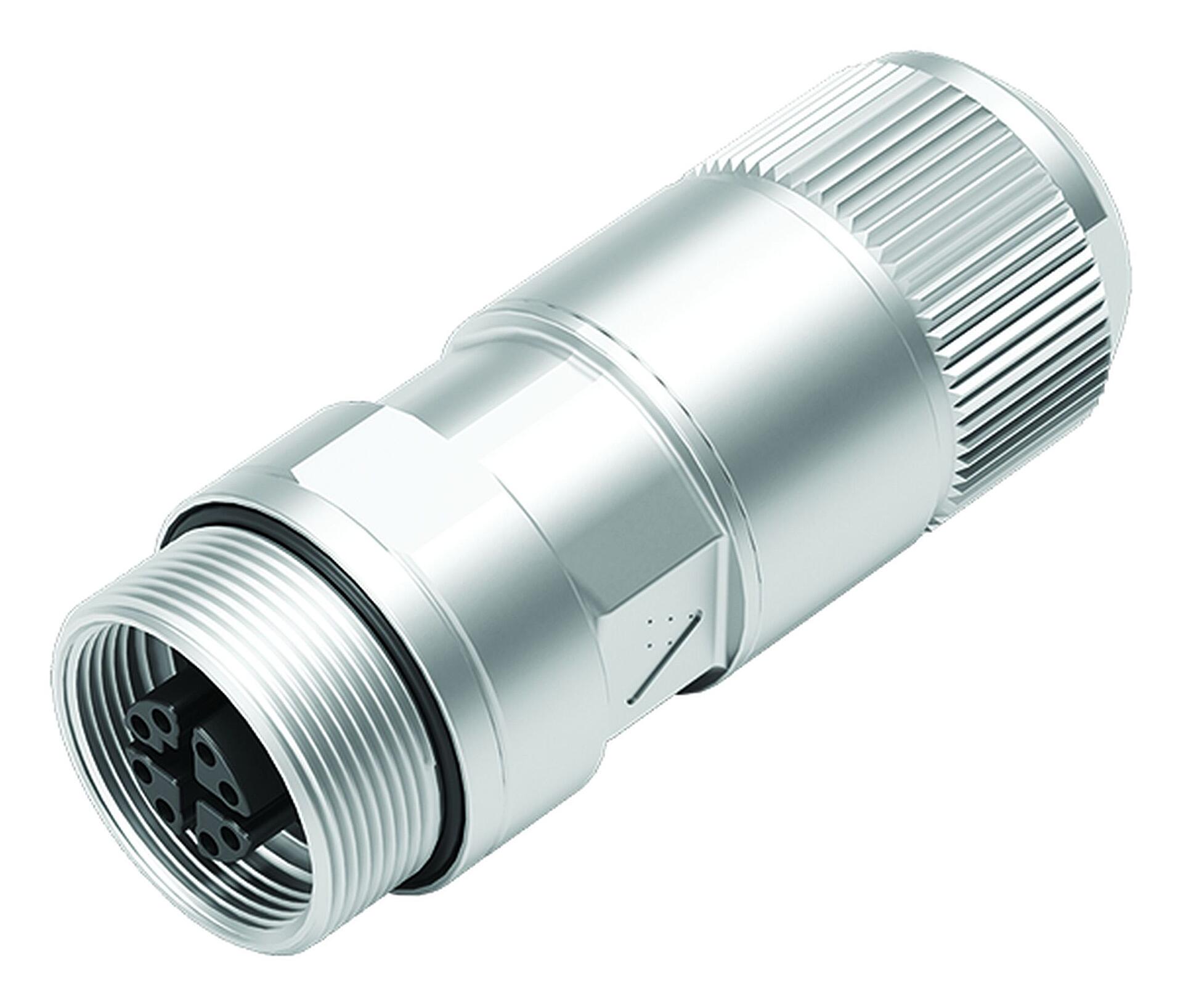

M16 Female cable connector, Contacts: 8, 5.5-9.0 mm, shieldable, IDC, IP67

M16-X, series 415, Automation Technology - Data Transmission
Compare product
Downloads
This female cable connector with screw locking and a pin count of 8 is according to its protection class IP67 Dust-tight and has complete protection against contact and protection against temporary immersion. It can be used in areas with a pollution degree of 3. In places where contamination can occur that is conductive or can become conductive through condensation. With temperatures ranges of -25 °C/85 °C is this shieldable M16-X female cable connector designed for both severe cold and severe heat. Due to the qualified rated voltage of 50 V (AC ) / 60 V (DC) and the rated current of 0,5 A it is perfectly tuned for its field of application.

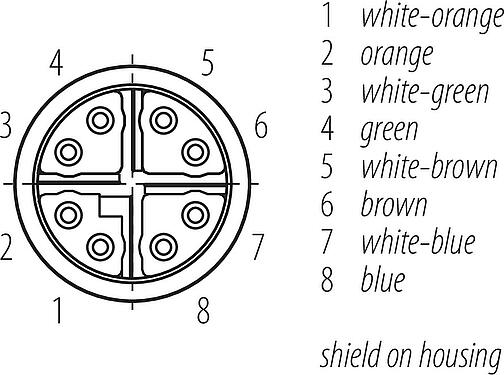

General features
Moreless
Part no. 99 4172 00 08
Connector design Female cable connector
Version Connector socket straight
Connector locking system screw
Termination IDC
Degree of protection IP67
Cross-sectional area AWG 24-22/1, AWG 27-22/7
Cable outlet 5.5-9.0 mm
Temperature range from/to -25 °C / 85 °C
Mechanical operation > 100 Mating cycles
Weight (g) 28.999
Customs tariff number 85369010
Rated voltage 50 V (AC) / 60 V (DC)
Rated impulse voltage 800 V
Rated current 0.5 A
Insulation resistance > 108 Ω
Pollution degree 3
Overvoltage category II
Insulating material group II
EMC compliance shieldable
Shield connection Shield clamping
Housing material Zinc die-cast nickel-plated
Contact body material PA (UL94 V-0) black
Contact material CuZn (brass)
Contact plating Au (gold)
REACH SVHC CAS 7439-92-1 (Lead)
eCl@ss 11.1 27-44-01-02
ETIM 9.0 EC002635
General Disclaim Notice
  1. The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
  2. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  3. To protect against unintentional opening of the connector, the thread between the housing and the connector head must be secured with a suitable cyanoacrylate adhesive when used in circuits with voltages dangerous to the touch. This does not apply to connectors used in SELV and PELV circuits according to IEC 61140 (EN 61140, VDE 0140-1).
  4. Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
  5. Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.

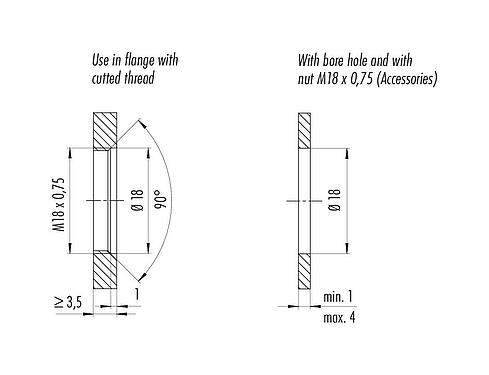

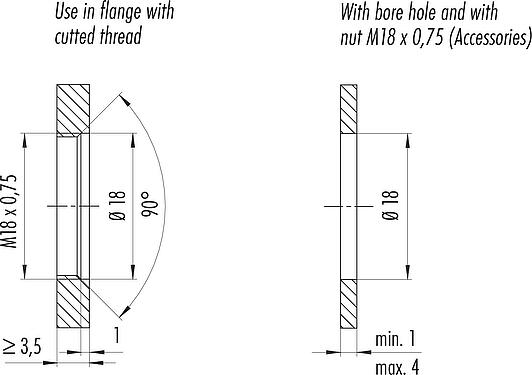

  6. To lock the cable connector with the device connector, the threaded ring is tightened "hand-tight" (approx. 50 cNm).
