Subminiature connectors
Filter products
Connector type
The connector type can be used to distinguish our products for installation in a device housing from cable parts. The connector type describes the difference between connectors that are mounted on enclosures and connectors that are mounted on cables.
Gender
A connector consists of the male part (pin) and the female part (socket). Depending on the design, the male or female part is either permanently installed or are located at the end of a cable.
Number of contacts
This indicates the number of contacts the connector has.
Version
The choice of version allows the definition of certain technical specifications – for example the type of cable outlet or the size.
Locking Type
The locking system describes how the pin and socket elements are joined.
Rated voltage
The rated voltage is the electrical voltage assigned to the connector.
Rated current
The rated current is the electrical current that is assigned to the connector.
Degree of protection
The degrees of protection according to IEC60529 apply to various articles and provide information on protection against the intrusion of water and solids such as dust.
Shielded Option
Electromagnetic compatibility (EMC) means that a connector is shielded or shieldable. This is required when it is necessary to protect the signals or data conducted by the connector, as well as to protect external devices, from disturbance due to electromagnetic effects.
Material of housing
Depending on the area of application or requirements, connectors are made of different materials. We offer metal and plastic housings for our items as the housing material.
Termination
The termination type determines how cables, single wires or PCBs can be joined with the connector.
Cable type
By selecting the cable type, a preselection for the respective application can be carried out.
Cable Jacket Type
The material of the cable jacket. PUR, TPE, TMPU or TPE-U cables each have different technical properties.
Cable color
The color of the cable jacket.
Cable length
Our items with molded or pre-assembled cables have different cable lengths. It describes the length of the cable from the end of the connector. If the desired cable length is not included, please contact our sales department.
Locking material
Depending on the technical requirements or performance data of the connector, the locking mechanism is made of plastic or metal.

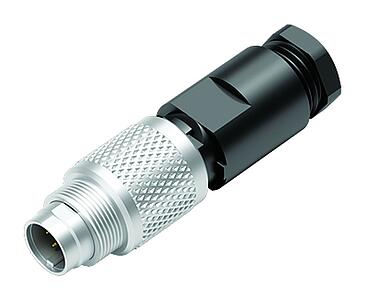

M9 connectors are a miniature solution recognized for their exceptional performance and adaptability across industries. The M9 series is engineered with precision and a focus on durability. Consequently, the M9 comes with an IP67 rating, which allows the connector to excel in challenging environments by protecting against dust, moisture, and varying temperatures. Its specialized design, available in configurations like the 7-pin M9 connector, encompasses both male and female variations, facilitating seamless connections in diverse applications. What sets the M9 apart is its small size to fit applications with limited space while keeping the ability to combine robustness with versatility.


M9 male and female connector

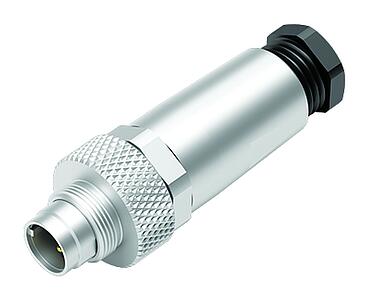

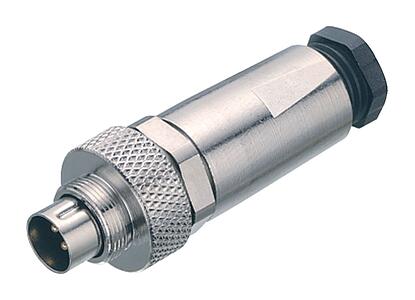

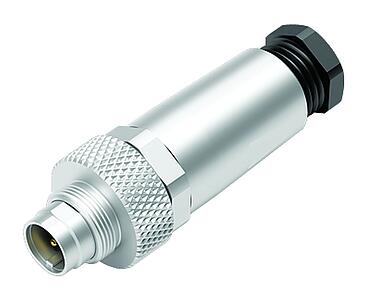

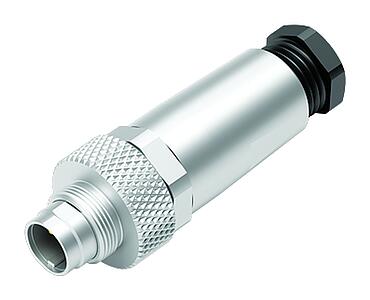

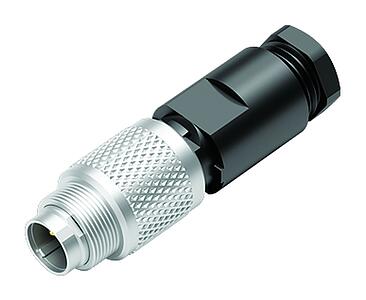

These subminiature M9 connectors are available with 2 to 8 contacts for panel mounting or as cable connectors, where binder also offers molded versions. Both versions are shieldable. M9 cable connectors feature solder termination, while the panel mount versions are available with solder and dip solder termination. The degree of protection is IP67 with an operating temperature range of -40°C to +85°C.


M9 subminiatur connector


Find your suitable M9 IP67 connector from binder.
