  4. M9 Male cable connector, Contacts: 5, 3.5-5.0 mm, unshielded, solder, IP67
Part no.: 99 0413 00 05

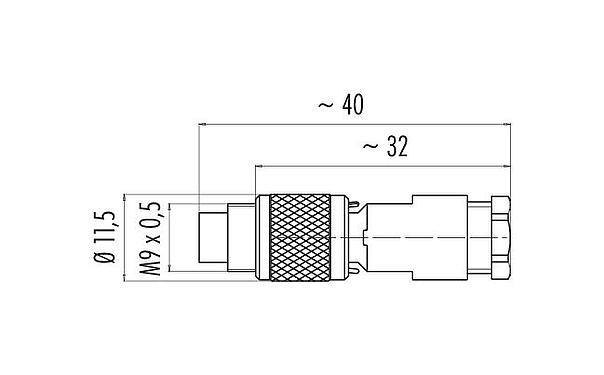

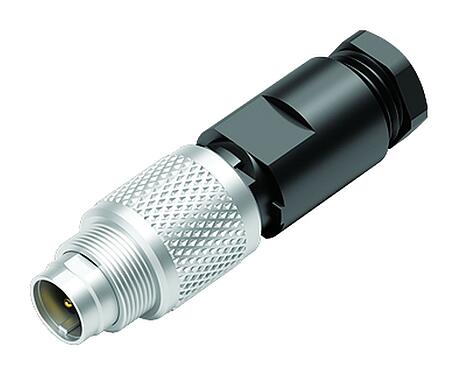

M9 Male cable connector, Contacts: 5, 3.5-5.0 mm, unshielded, solder, IP67

M9 IP67, series 712, Subminiature Connectors

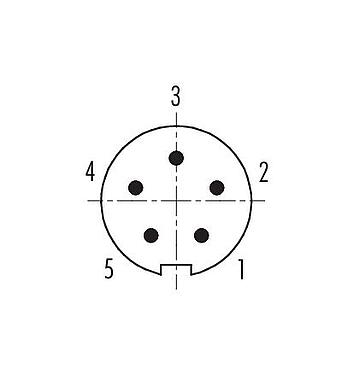

Available numbers of contacts
Compare product
Downloads
This male cable connector with screw locking and a pin count of 5 is according to its protection class IP67 Dust-tight and has complete protection against contact and protection against temporary immersion. It can be used in areas with a pollution degree of 1. In places where there is no or only slight, but non-conductive soiling. The pollution has no influence. With temperatures ranges of -40 °C/85 °C is this unshielded M9 IP67 male cable connector designed for both severe cold and severe heat. Due to the qualified rated voltage of 125 V and the rated current of 3,0 A it is perfectly tuned for its field of application.
General features
Moreless
Part no. 99 0413 00 05
Connector design Male cable connector
Version Connector pin straight
Connector locking system screw
Termination solder
Degree of protection IP67
Cross-sectional area max. 0.25 mm² / AWG 24
Cable outlet 3.5-5.0 mm
Temperature range from/to -40 °C / 85 °C
Mechanical operation > 500 Mating cycles
Weight (g) 6.42
Customs tariff number 85369010
Country of Origin DE
Rated voltage 125 V
Rated impulse voltage 1500 V
Rated current 3,0 A
Insulation resistance ≥ 1010 Ω
Pollution degree 1
Overvoltage category II
Insulating material group III
EMC compliance unshielded
Housing material PA/CuZn (Nickel-plated brass)
Contact body material PBT (UL94 V-0)
Contact material CuZn (brass)
Contact plating Au (gold)
Locking material CuZn (brass)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number 92ccc5af-517c-47fa-a972-6c630235ee45
eCl@ss 11.1 27-44-01-02
ETIM 9.0 EC002635
Low Voltage Directive 2014/35/EU (EN 60204-1:2018;EN 60529:1991)
General Disclaim Notice
  1. The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
  2. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  3. Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
  4. Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.

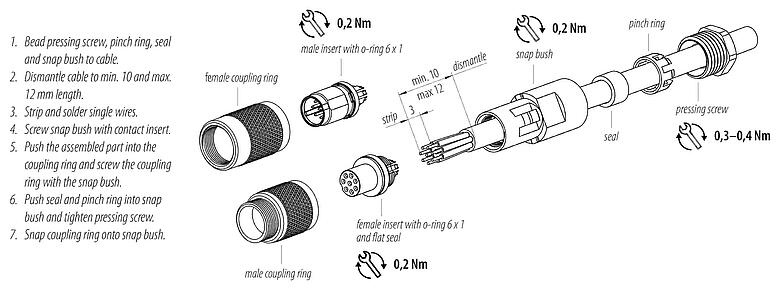

  5. To lock the cable connector with the device connector, the threaded ring is tightened "hand-tight" (approx. 50 cNm).
