Power connectors
Filter products
Number of contacts
This indicates the number of contacts the connector has.
Locking Type
The locking system describes how the pin and socket elements are joined.
  • BayonetThe connection can be secured by means of a partial rotation.
Degree of protection
The degrees of protection according to IEC60529 apply to various articles and provide information on protection against the intrusion of water and solids such as dust.
  • IP68/IP69KIP68: Fully protects against touch. Protects against the intrusion of dust. Protects against water intrusion in sustained immersion (depth: 2 m; duration: 24 hours), requirements specification by agreement between producer and user.

    IP69K: Fully protects against touch. Protects against the intrusion of dust. Protects against water intrusion under high pressure (8,000–10,000 kPa) from a jet or from steam-jet cleaning from any direction.
The choice of version allows the definition of certain technical specifications – for example the type of cable outlet or the size.
Connector Type
Connectors are differentiated by installation type: those that are mounted in a device housing (panel mount) and those that are attached to cables.
  • Cable mountingConnectors with cable already moulded or for self-assembly.
  • Housing assemblyConnectors that can be mounted to device housings. These can be fixed by means of a locking nut or be screwed in (requires a threaded hole).
Shielded Option
Electromagnetic compatibility (EMC) means that a connector is shielded or shieldable. This is required when it is necessary to protect the signals or data conducted by the connector, as well as to protect external devices, from disturbance due to electromagnetic effects.
Product segment
binder areas of application or type of connector.
  • PowerPower connectors for high currents and voltages.
The termination type determines how cables, single wires or PCBs can be joined with the connector.

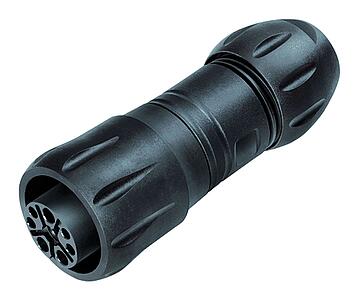

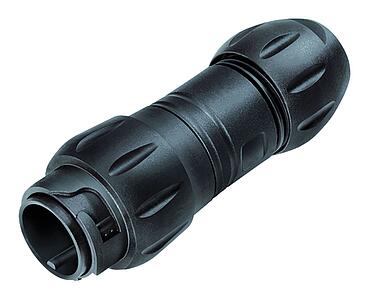

Connectors for harsh environments of the HEC series 696 (Harsh Environment Connectors) are available as square flange and cable versions with integrated protective conduit, which can protect cables up to IP67 and when mated up to IP69K. The connectors are UV-resistant and have VDE and UL approval. The high mechanical load capacity of the products is confirmed by more than 500 mating cycles for the 12-pole version and more than 1000 mating cycles for the 5- and 8-pole versions.
