Connectors for medical applications
Filter products
Number of contacts
This indicates the number of contacts the connector has.
Reset
Locking Type
The locking system describes how the pin and socket elements are joined.
Reset
Degree of protection
The degrees of protection according to IEC60529 apply to various articles and provide information on protection against the intrusion of water and solids such as dust.
  • IP67Fully protects against touch and against the intrusion of dust. Protects against water intrusion in temporary immersion (depth: 1 m; duration: 30 minutes).
Reset
Version
The choice of version allows the definition of certain technical specifications – for example the type of cable outlet or the size.
  • AdapterConnecting element to each side of which a connector can be attached. This enables the realisation of, for example, control cabinet lead-throughs or a transition from the M8 to the M12 locking system.
Reset
Connector Type
Connectors are differentiated by installation type: those that are mounted in a device housing (panel mount) and those that are attached to cables.
  • Cable mountingConnectors with cable already moulded or for self-assembly.
  • Housing assemblyConnectors that can be mounted to device housings. These can be fixed by means of a locking nut or be screwed in (requires a threaded hole).
Reset
Shielded Option
Electromagnetic compatibility (EMC) means that a connector is shielded or shieldable. This is required when it is necessary to protect the signals or data conducted by the connector, as well as to protect external devices, from disturbance due to electromagnetic effects.
Reset
Product segment
binder areas of application or type of connector.
  • Connectors for medical applicationsConnectors in grey white in accordance with RAL 9002 with snap-in and bayonet locking systems
Reset
Termination
The termination type determines how cables, single wires or PCBs can be joined with the connector.
  • solderThe contact and the individual wires of a cable are connected using solder.
Reset
Reset
Reset
Show products
  1. Products
  2. Connectors for medical applications
  3. Snap-in IP67, miniature

Snap-in IP67 miniature connectors for medical applications

Series PDF (1 MB)
Accessory as PDF (217 KB)

720 Series snap-in miniature circular connectors have 3 to 12 contacts depending on the application. Medical-grade design is DEHP-free, grey-white, similar to RAL 9002, and is available as cable or flange connectors. Other colours can be ordered. The connector system is IP67 rated, the cable connectors have solder terminals, the flange connectors have solder/ dip solder terminals. Users can expect more than 500 mating cycles.

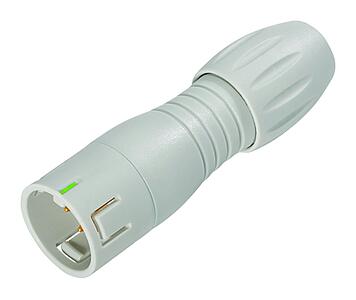

Connectors for medical applications-Snap-In IP67 (miniature)-Male cable connector_720_1_KS_MED
99 9105 403 03
Snap-In IP67 (miniature) Male cable connector, Contacts: 3, 2.5-4.0 mm, unshielded, solder, IP67
Snap-In, series 720, Connectors for medical applications
Details
Connectors for medical applications-Snap-In IP67 (miniature)-Male cable connector_720_1_KS_MED
99 9113 403 05
Snap-In IP67 (miniature) Male cable connector, Contacts: 5, 2.5-4.0 mm, unshielded, solder, IP67
Snap-In, series 720, Connectors for medical applications
Details
Connectors for medical applications-Snap-In IP67 (miniature)-Male cable connector_720_1_KS_MED
99 9125 403 08
Snap-In IP67 (miniature) Male cable connector, Contacts: 8, 2.5-4.0 mm, unshielded, solder, IP67
Snap-In, series 720, Connectors for medical applications
Details
Connectors for medical applications-Snap-In IP67 (miniature)-Male cable connector_720_1_KS_MED
99 9105 400 03
Snap-In IP67 (miniature) Male cable connector, Contacts: 3, 4.0-6.0 mm, unshielded, solder, IP67
Snap-In, series 720, Connectors for medical applications
Details
Connectors for medical applications-Snap-In IP67 (miniature)-Male cable connector_720_1_KS_MED
99 9113 400 05
Snap-In IP67 (miniature) Male cable connector, Contacts: 5, 4.0-6.0 mm, unshielded, solder, IP67
Snap-In, series 720, Connectors for medical applications
Details
Connectors for medical applications-Snap-In IP67 (miniature)-Male cable connector_720_1_KS_MED
99 9125 400 08
Snap-In IP67 (miniature) Male cable connector, Contacts: 8, 4.0-6.0 mm, unshielded, solder, IP67
Snap-In, series 720, Connectors for medical applications
Details
Connectors for medical applications-Snap-In IP67 (miniature)-Male cable connector_720_1_KS_MED
99 9133 402 12
Snap-In IP67 (miniature) Male cable connector, Contacts: 12, 6.0-8.0 mm, unshielded, solder, IP67
Snap-In, series 720, Connectors for medical applications
Details

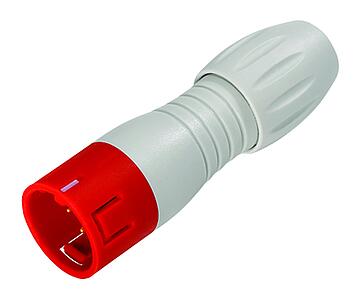

Connectors for medical applications-Snap-In IP67 (miniature)-Male cable connector_720_1_KS_MED_rot
99 9105 450 03
Snap-In IP67 (miniature) Male cable connector, Contacts: 3, 4.0-6.0 mm, unshielded, solder, IP67
Snap-In, series 720, Connectors for medical applications
Details
Connectors for medical applications-Snap-In IP67 (miniature)-Male cable connector_720_1_KS_MED_rot
99 9113 450 05
Snap-In IP67 (miniature) Male cable connector, Contacts: 5, 4.0-6.0 mm, unshielded, solder, IP67
Snap-In, series 720, Connectors for medical applications
Details
Connectors for medical applications-Snap-In IP67 (miniature)-Male cable connector_720_1_KS_MED_rot
99 9125 450 08
Snap-In IP67 (miniature) Male cable connector, Contacts: 8, 4.0-6.0 mm, unshielded, solder, IP67
Snap-In, series 720, Connectors for medical applications
Details
Connectors for medical applications-Snap-In IP67 (miniature)-Male cable connector_720_1_KS_MED_rot
99 9133 452 12
Snap-In IP67 (miniature) Male cable connector, Contacts: 12, 6.0-8.0 mm, unshielded, solder, IP67
Snap-In, series 720, Connectors for medical applications
Details

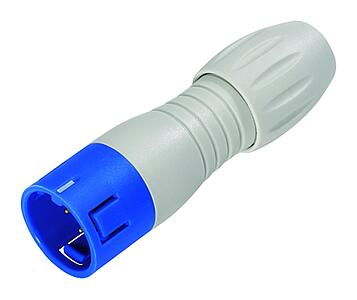

Connectors for medical applications-Snap-In IP67 (miniature)-Male cable connector_720_1_KS_MED_blau
99 9105 460 03
Snap-In IP67 (miniature) Male cable connector, Contacts: 3, 4.0-6.0 mm, unshielded, solder, IP67
Snap-In, series 720, Connectors for medical applications
Details
