Blind plug / Dummy plug
M12-A/B/D/K/K/L/S/T/US/X - Blank cap, M16x1.5; Series 713/715/763/766/813/814/815/825/866/876

Part no.: 08 3129 000 000

M12-A/B/D/K/K/L/S/T/US/X - Blank cap, M16x1.5; Series 713/715/763/766/813/814/815/825/866/876

series 713/715/763/766/813/814/815/825/866/876, Accessories

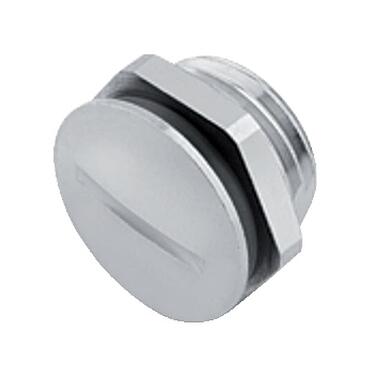

Illustration 08 3129 000 000 - M12-A/B/D/K/K/L/S/T/US/X - Blank cap, M16x1.5; Series 713/715/763/766/813/814/815/825/866/876 — Illustration

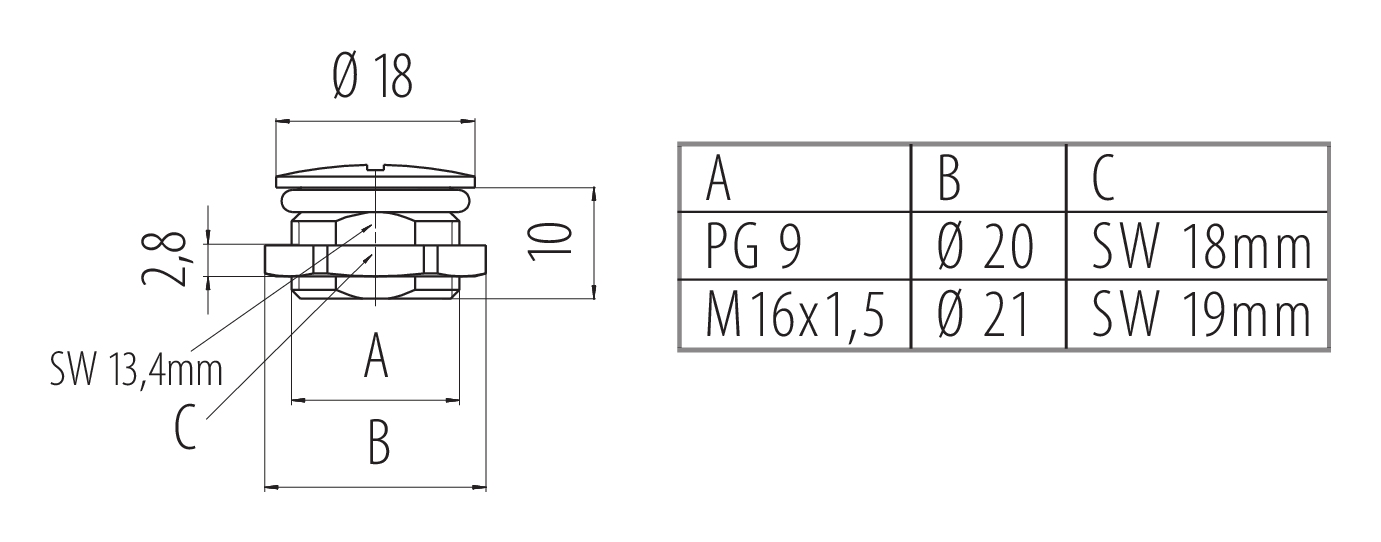

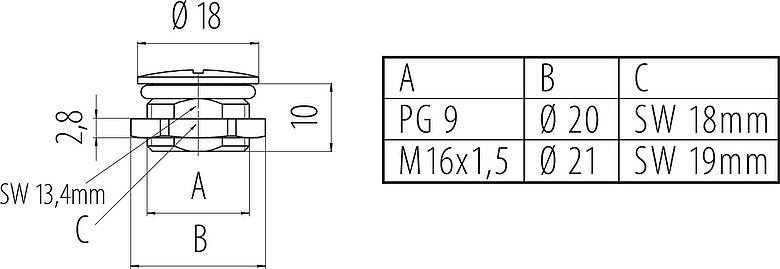

Scale drawing 08 3129 000 000 - M12-A/B/D/K/K/L/S/T/US/X - Blank cap, M16x1.5; Series 713/715/763/766/813/814/815/825/866/876 — Scale drawing

Part no.	08 3129 000 000
Degree of protection	IP67
Thread	M16x1,5
Temperature range	-40 °C/+85 °C
Additional information	alternatively with surface as anti-twist protection
Weight (g)	19.30
Customs tariff number	85366990
Country of Origin	DE

REACH SVHC	CAS 7439-92-1 (Lead)
SCIP number	f2ce2b78-f412-4381-9483-489d388819bd
Material	CuZn-Ni

eCl@ss 11.1	27-44-02-08
ETIM 9.0	EC002314

Report error on this page

Downloads

Data sheet 08 3129 000 000

08 3129 000 000

08 3129 000 000

08 3129 000 000

STP-Data 08 3129 000 000
