Mounting wrench
M12-A/B/D/K/K/L/S/T/US/X - Assembly spanner with torque limitation 0.6 Nm, SW 18 mm; Series 713/715/763/766/813/814/815/825/866/876

Part no.: 07 0079 000

M12-A/B/D/K/K/L/S/T/US/X - Assembly spanner with torque limitation 0.6 Nm, SW 18 mm; Series 713/715/763/766/813/814/815/825/866/876

series 713/715/763/766/813/814/815/825/866/876, Accessories

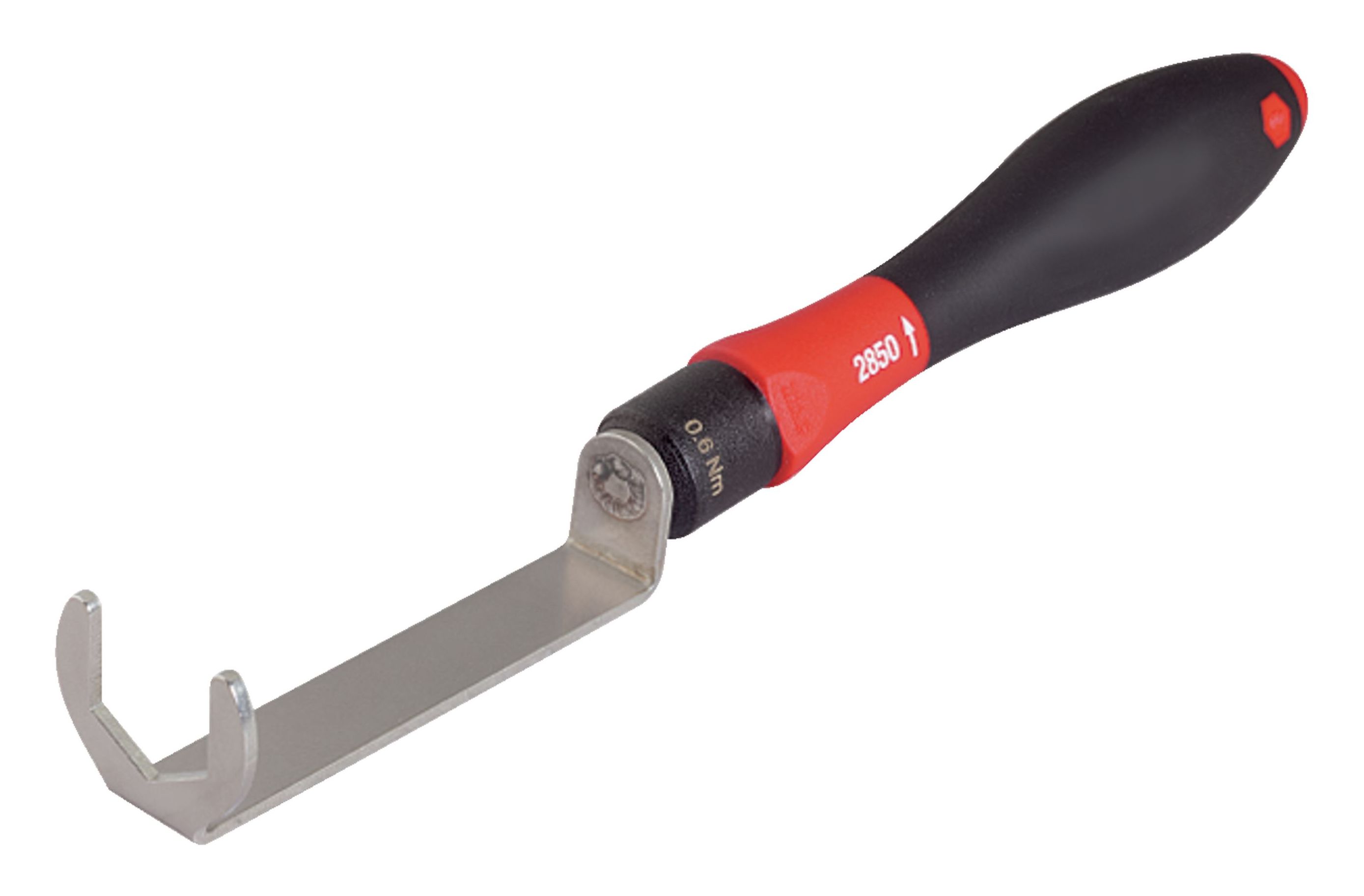

Illustration 07 0079 000 - M12-A/B/D/K/K/L/S/T/US/X - Assembly spanner with torque limitation 0.6 Nm, SW 18 mm; Series 713/715/763/766/813/814/815/825/866/876 — Illustration

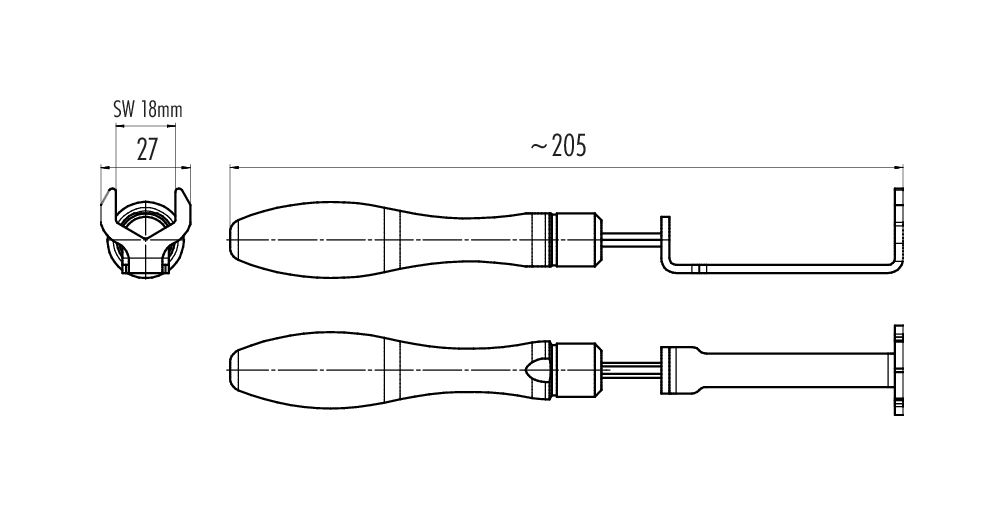

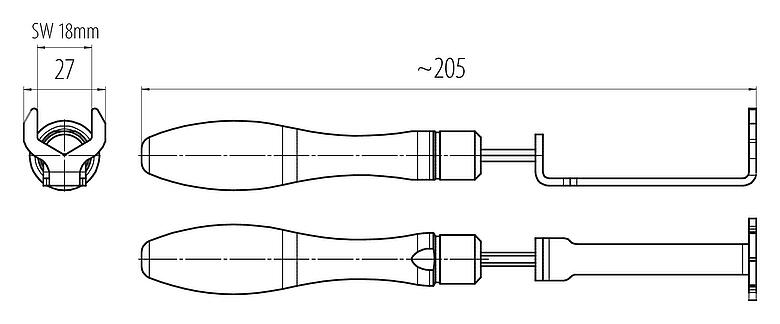

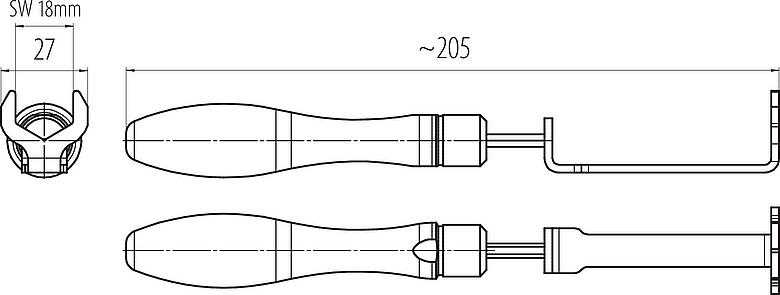

Scale drawing 07 0079 000 - M12-A/B/D/K/K/L/S/T/US/X - Assembly spanner with torque limitation 0.6 Nm, SW 18 mm; Series 713/715/763/766/813/814/815/825/866/876 — Scale drawing

Part no.	07 0079 000
Width across flat	SW 18
Torque	0.6 Nm
Weight (g)	112.267
Customs tariff number	82041100
Country of Origin	DE

SCIP number	None (No pollutants)

eCl@ss 11.1	27-44-01-92

Report error on this page

Downloads

Data sheet 07 0079 000

STP-Data 07 0079 000
