Part no.: 08 0427 000 000

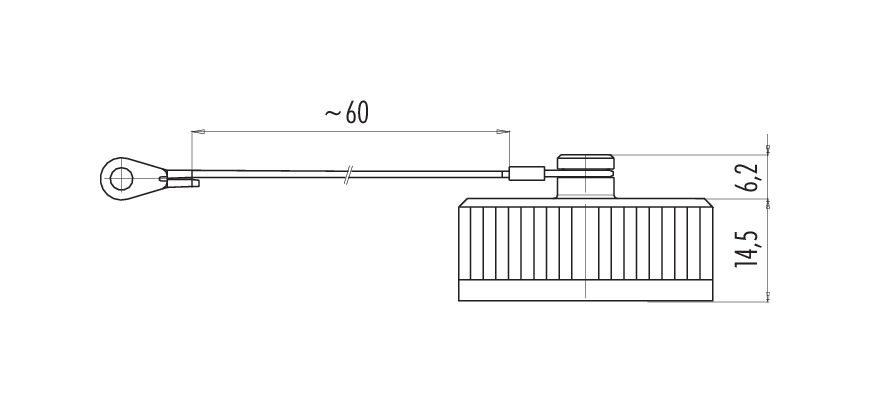

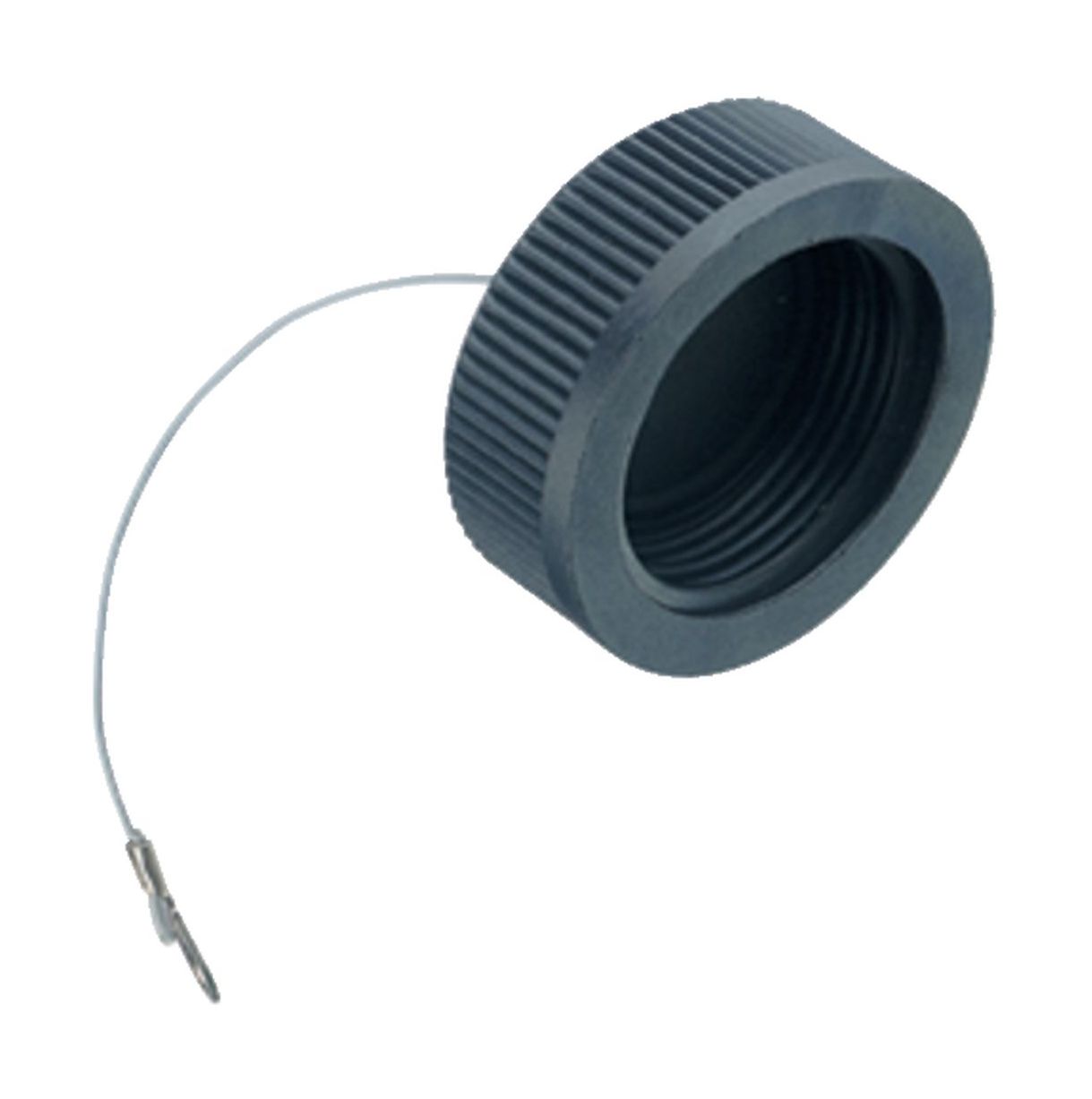

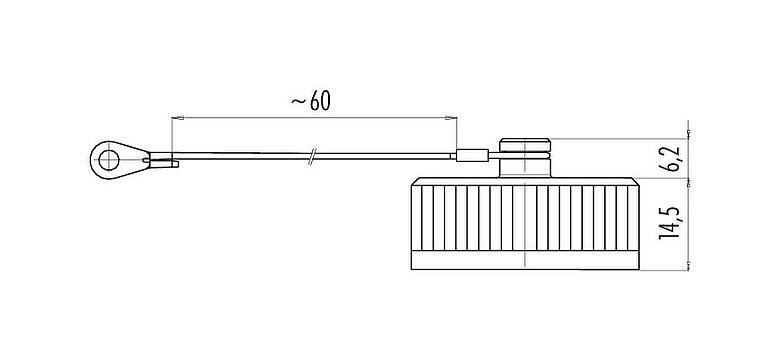

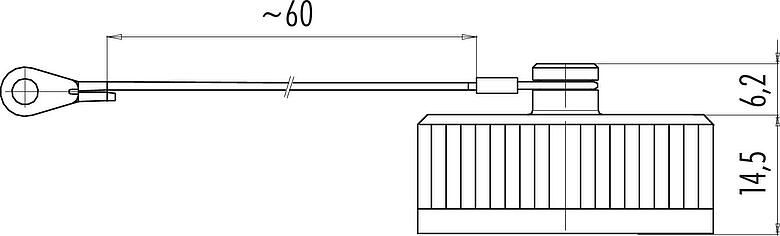

RD30 - Protection cap for flange plug; Series 694

series 694, Accessories
Compare product
Downloads
General features
Moreless
Part no. 08 0427 000 000
Degree of protection IP65
Temperature range -40 °C/+85 °C
Additional information for male panel mount connector
O-ring glued in
Weight (g) 12.90
Customs tariff number 85366990
Country of Origin HU
Contact body material black
Material protective cap PBT
Strap material Nylon
Material seal Viton
REACH SVHC None (No pollutants)
SCIP number SCIP-number not available
eCl@ss 11.1 27-44-02-08
ETIM 9.0 EC002314
Accessories--_694_Z_SK4
08 0427 000 000
