Protecting cap
M12-A/B/D/K/L/S/T/US/X - Protective cap for cable socket; Series 713/715/763/766/813/814/815/825/866/876

Part no.: 08 2425 010 000

M12-A/B/D/K/L/S/T/US/X - Protective cap for cable socket; Series 713/715/763/766/813/814/815/825/866/876

series 713/715/763/766/813/814/815/825/866/876, Accessories

Illustration 08 2425 010 000 - M12-A/B/D/K/L/S/T/US/X - Protective cap for cable socket; Series 713/715/763/766/813/814/815/825/866/876 — Illustration

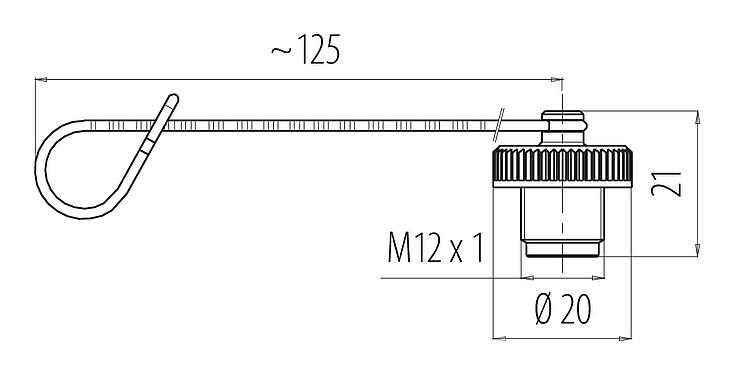

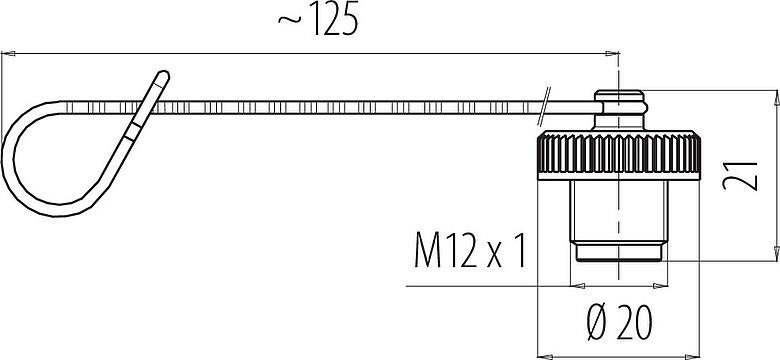

Scale drawing 08 2425 010 000 - M12-A/B/D/K/L/S/T/US/X - Protective cap for cable socket; Series 713/715/763/766/813/814/815/825/866/876 — Scale drawing

Part no.	08 2425 010 000
Degree of protection	IP67
Temperature range	-40 °C/+85 °C
Additional information	for female connector
Weight (g)	3.80
Customs tariff number	85366990
Country of Origin	DE

Contact body material	black
Material protective cap	PBT (UL94 V0)
Strap material	PUR
REACH SVHC	None (No pollutants)
SCIP number	SCIP-number not available

eCl@ss 11.1	27-44-02-08
ETIM 9.0	EC002314

Report error on this page

Downloads

Data sheet 08 2425 010 000

08 2425 010 000

08 2425 010 000

08 2425 010 000

STP-Data 08 2425 010 000
