  1. Products
  2. Zubehör
  3. Protecting cap
  4. M12-A/B/D/K/K/L/S/T/US/X - Protective cap for flange socket; Series 713/715/763/766/813/814/815/825/866/876
Part no.: 08 2616 000 000

M12-A/B/D/K/K/L/S/T/US/X - Protective cap for flange socket; Series 713/715/763/766/813/814/815/825/866/876

series 713/715/763/766/813/814/815/825/866/876, Accessories
Compare product
Downloads
1 Download

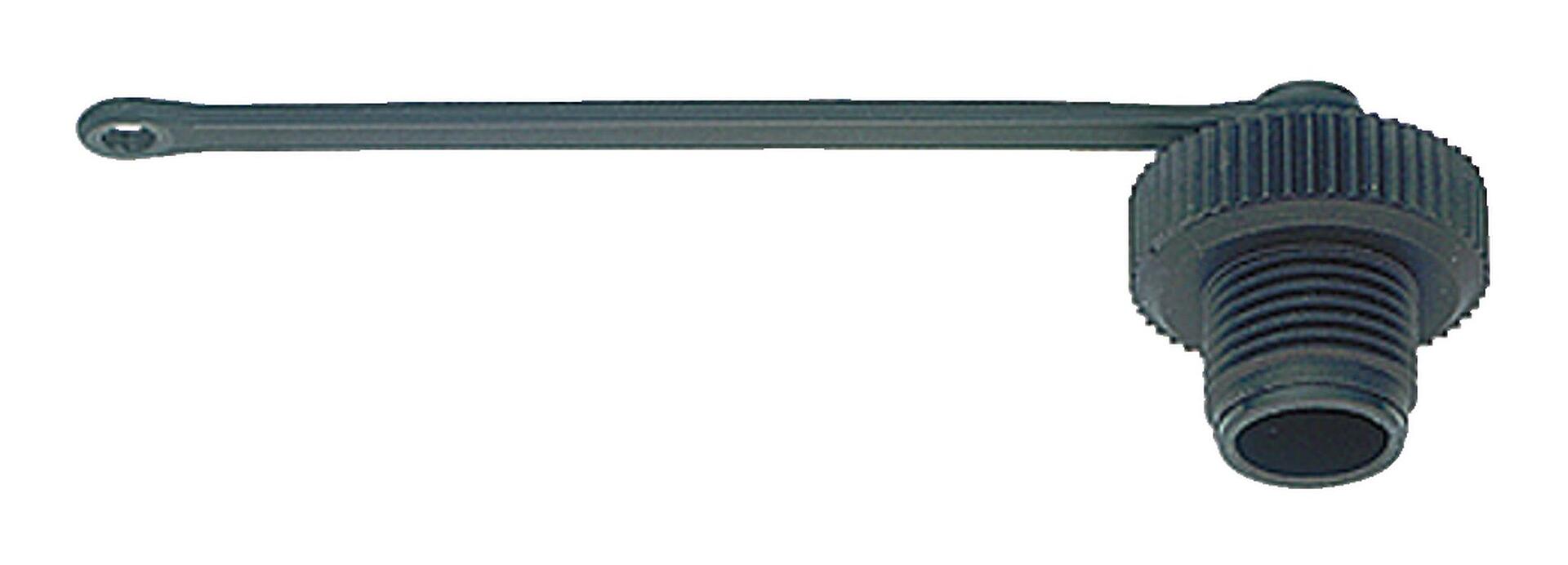

Illustration 08 2616 000 000 - M12-A/B/D/K/K/L/S/T/US/X - Protective cap for flange socket; Series 713/715/763/766/813/814/815/825/866/876
Illustration
Download imageJPG - 55 KB

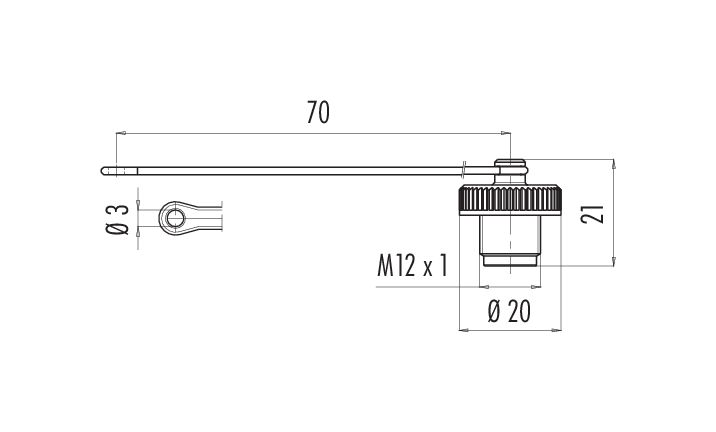

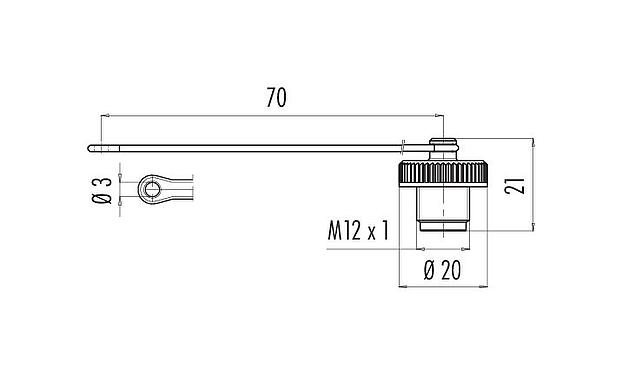

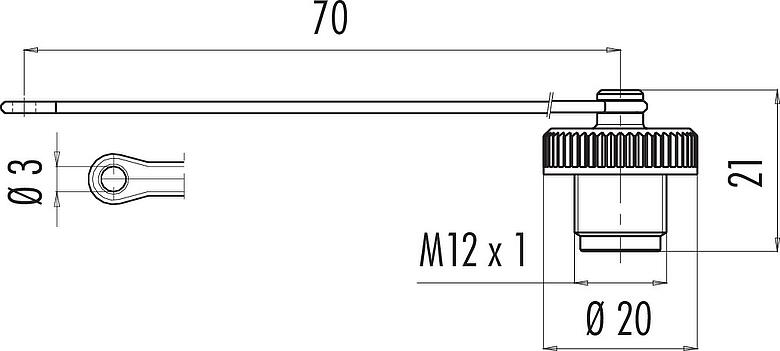

Scale drawing 08 2616 000 000 - M12-A/B/D/K/K/L/S/T/US/X - Protective cap for flange socket; Series 713/715/763/766/813/814/815/825/866/876
Scale drawing
Download imageJPG - 12 KB
Add to cart
Part no.
08 2616 000 000
Factory lead time: 6 weeks
General features
Moreless
Part no. 08 2616 000 000
Degree of protection IP67
Temperature range -40 °C/+85 °C
Additional information for female connector
Weight (g) 3.13
Customs tariff number 85366990
Country of Origin DE
Contact body material black
Material protective cap PA66 (UL94 V0)
Strap material PUR
REACH SVHC None (No pollutants)
SCIP number SCIP-number not available
eCl@ss 11.1 27-44-02-08
ETIM 9.0 EC002314
