General features
Moreless| Part no. | 08 2674 000 000 |

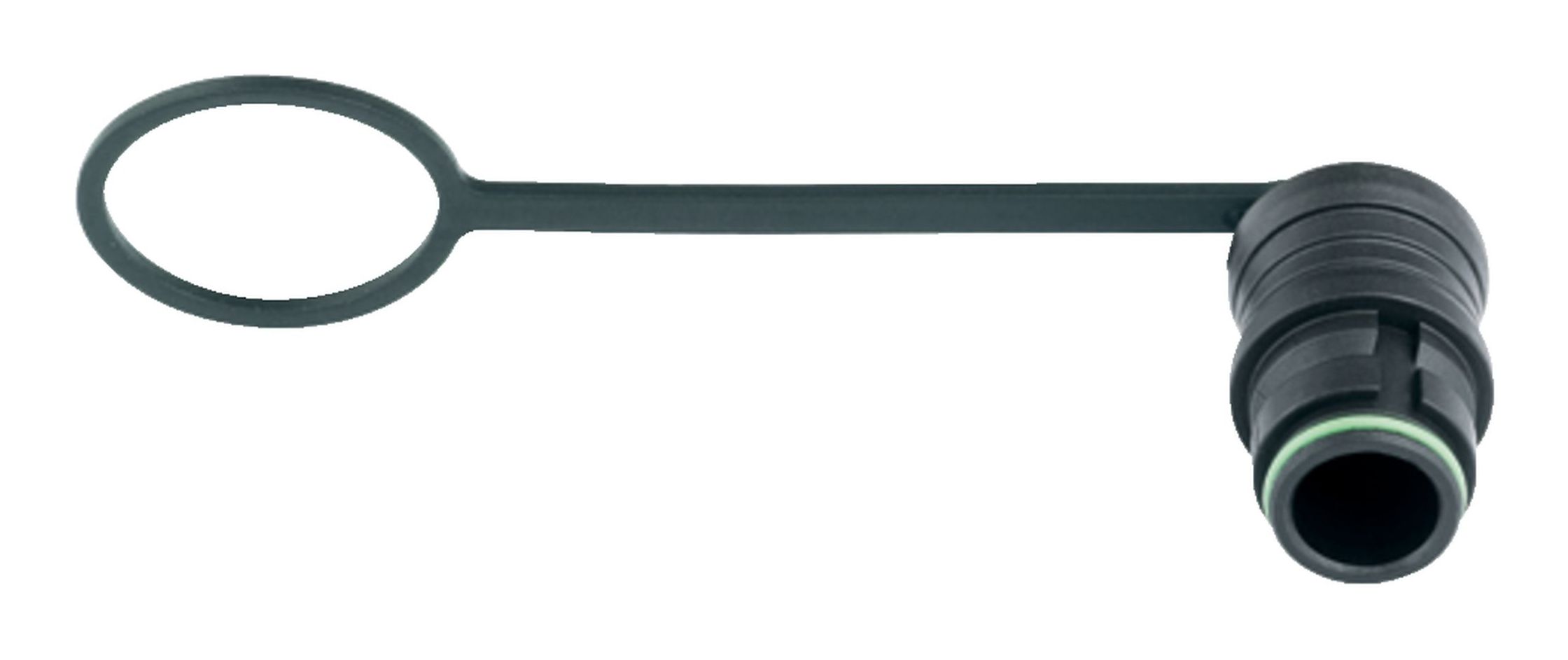

| Connector design | Protecting cap |
| Degree of protection | IP67 |
| Temperature range | -40 °C/+85 °C |
| Weight (g) | 4.33 |
| Customs tariff number | 85366990 |
| Country of Origin | DE |
Material
Moreless| Contact body material | black |
| Material protective cap | PA |
| Strap material | PUR |
| Material seal | FPM/FKM |
| REACH SVHC |
None (No pollutants) |
| SCIP number | SCIP-number not available |
Classifications
Moreless| eCl@ss 11.1 | 27-44-02-08 |
| ETIM 9.0 | EC002314 |
General Disclaim Notice
- The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
