Part no.: 31 5236 500 510
Female solenoid valve connector, Contacts: 2+2PE, unshielded, moulded on the cable, IP67, PUR, black, Circuit Z10, with LED PNP closer, 5 m
Size A, series 210, Automation Technology - Solenoid Valve Connectors
3D View(Click to activate)
This female solenoid valve connector with central screw locking and a pin count of 2+2PE is according to its protection class IP67 Dust-tight and has complete protection against contact and protection against temporary immersion. It can be used in areas with a pollution degree of 3. In places where contamination can occur that is conductive or can become conductive through condensation. With temperatures ranges of -25 °C/80 °C is this unshielded type A female solenoid valve connector designed for both severe cold and severe heat. Due to the qualified rated voltage of 24 V and the rated current of 10,0 A it is perfectly tuned for its field of application. It complies with the type standard DIN EN 175301-803.
General features
Moreless| Part no. |
31 5236 500 510
Alternative part no.: 31 1313 500 510
|
| Notice |
Please note that, due to the change from the old to the new order number, there may be deviations in the technical specifications. For questions about product details, please use the ‘Contact Customer Service’ form on the right.
More |
| Connector design | Female solenoid valve connector |
| Type standard | DIN EN 175301-803 |
| Cable length | 5 m (Standard 2 m and 5 m. Other lengths are available on request.) |
| Version | Solenoid valve connector |
| Connector locking system | Central bolt |
| Termination | moulded on the cable |
| Degree of protection | IP67 |
| Cross-sectional area | 0.75 mm² / AWG 18 |
| Temperature range from/to | -25 °C / 80 °C |
| Mechanical operation | > 50 Mating cycles |
| Additional information |

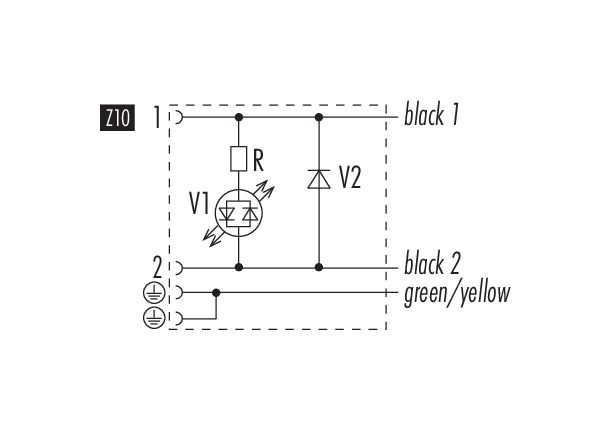

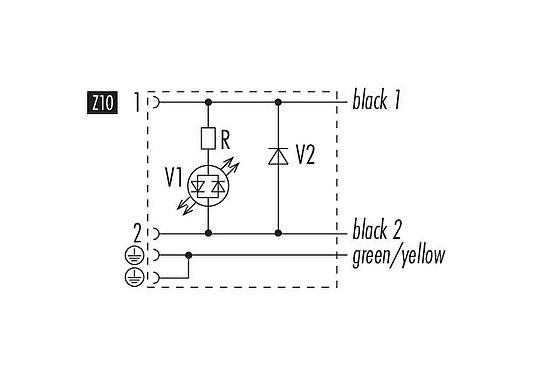

Circuit Z10 with LED PNP closer |
| Weight (g) | 300.00 |
| Customs tariff number | 85444290 |
| Country of Origin | CZ |
Electrical parameters
Moreless| Rated voltage | 24 V |
| Rated impulse voltage | 4000 V |
| Rated current | 10.0 A |
| Insulation resistance | ≥ 1010 Ω |
| Pollution degree | 3 |
| Overvoltage category | III |
| Insulating material group | I |
| EMC compliance | unshielded |
| Wiring | Z10 |
Material
Moreless| Housing material | PBT |
| Contact body material | PA |
| Contact material | CuSn (bronze) |
| Contact plating | Sn (tin) |
| REACH SVHC |
CAS 7439-92-1 (Lead) |
| SCIP number | f138a0e3-90a4-4499-b813-b7e0e877de36 |
Classifications
Moreless| eCl@ss 11.1 | 27-06-03-11 |
| ETIM 9.0 | EC002638 |
Declarations of conformity
Moreless| RoHS Directive | 2011/65/EU (EN 50581:2012) |
Cable data
Moreless| Structure of the cable | |
| Cable diameter | 6.0 mm |
| Sheath material | PUR |
| Single-lead structure | 3 x 0.75 mm |
| Cable color | black |
| Other features | |
| Halogen free | yes |
General Disclaim Notice
- The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
- The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
- Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
- Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
- The user must take appropriate safety precautions to ensure that the connector cannot be accidentally disconnected. In addition, the user must ensure that the cable is suitably secured.
