Part no.: 43 1709 000 03

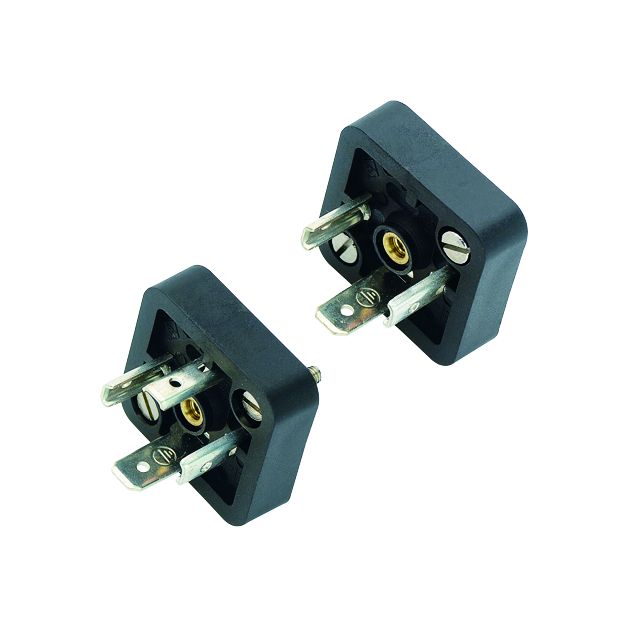

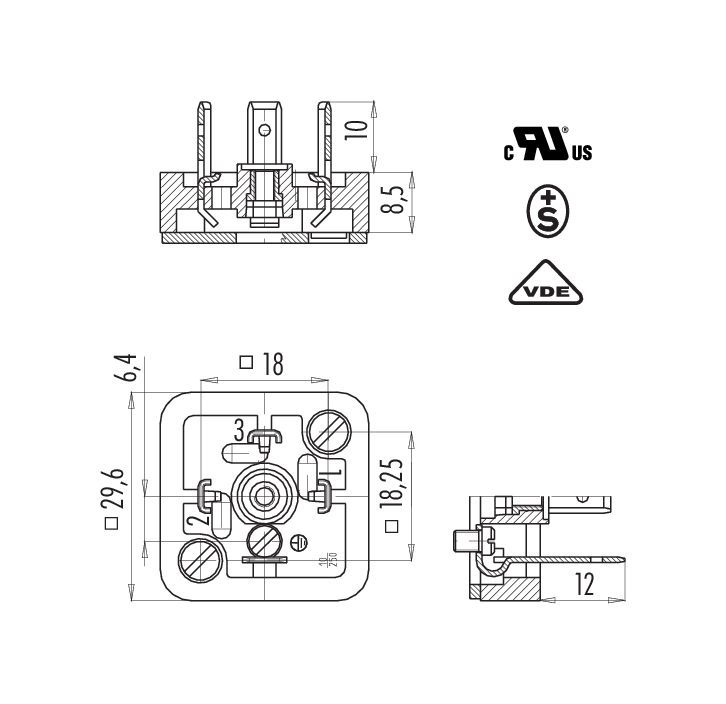

Male power connector, Contacts: 2+PE, unshielded, solder, IP40 without seal, UL, ESTI+, VDE
|Part no.||43 1709 000 03|
|Connector design||Male power connector|
|Type standard||DIN EN 175301-803|
|Version||Connector pin straight|
|Connector locking system||Central bolt|
|Degree of protection||
IP40 without seal|
IP65 with seal, see accessories
|Cross-sectional area||1.00 mm² / AWG 17|
|Temperature range from/to||-25 °C / 100 °C|
|Mechanical operation||> 50 Mating cycles|
|Customs tariff number||85369010|
|Rated voltage||250 V|
|Rated impulse voltage||4000 V|
|Rated current (40 °C)||10.0 A|
|Insulation resistance||≥ 10¹⁰ Ω|
|Insulating material group||III|
|Contact body material||PA (UL94 HB)|
|Contact material||CuZn (brass)|
|Contact plating||Sn (tin)|
CAS 7439-92-1 (Lead)|
|Approvals||UL, ESTI+, VDE|
