Part no.: 99 1536 810 05
M12 Female cable connector, Contacts: 5, 6.0-8.0 mm, shieldable, wire clamp, IP67
M12-B, series 715, Automation Technology - Data Transmission
This female cable connector with screw locking and a pin count of 5 is according to its protection class IP67 Dust-tight and has complete protection against contact and protection against temporary immersion. It can be used in areas with a pollution degree of 3. In places where contamination can occur that is conductive or can become conductive through condensation. With temperatures ranges of -40 °C/85 °C is this shieldable M12-B coded female cable connector designed for both severe cold and severe heat. Due to the qualified rated voltage of 60 V and the rated current of 4,0 A it is perfectly tuned for its field of application. It complies with the type standard DIN EN 61076-2-101.
General features

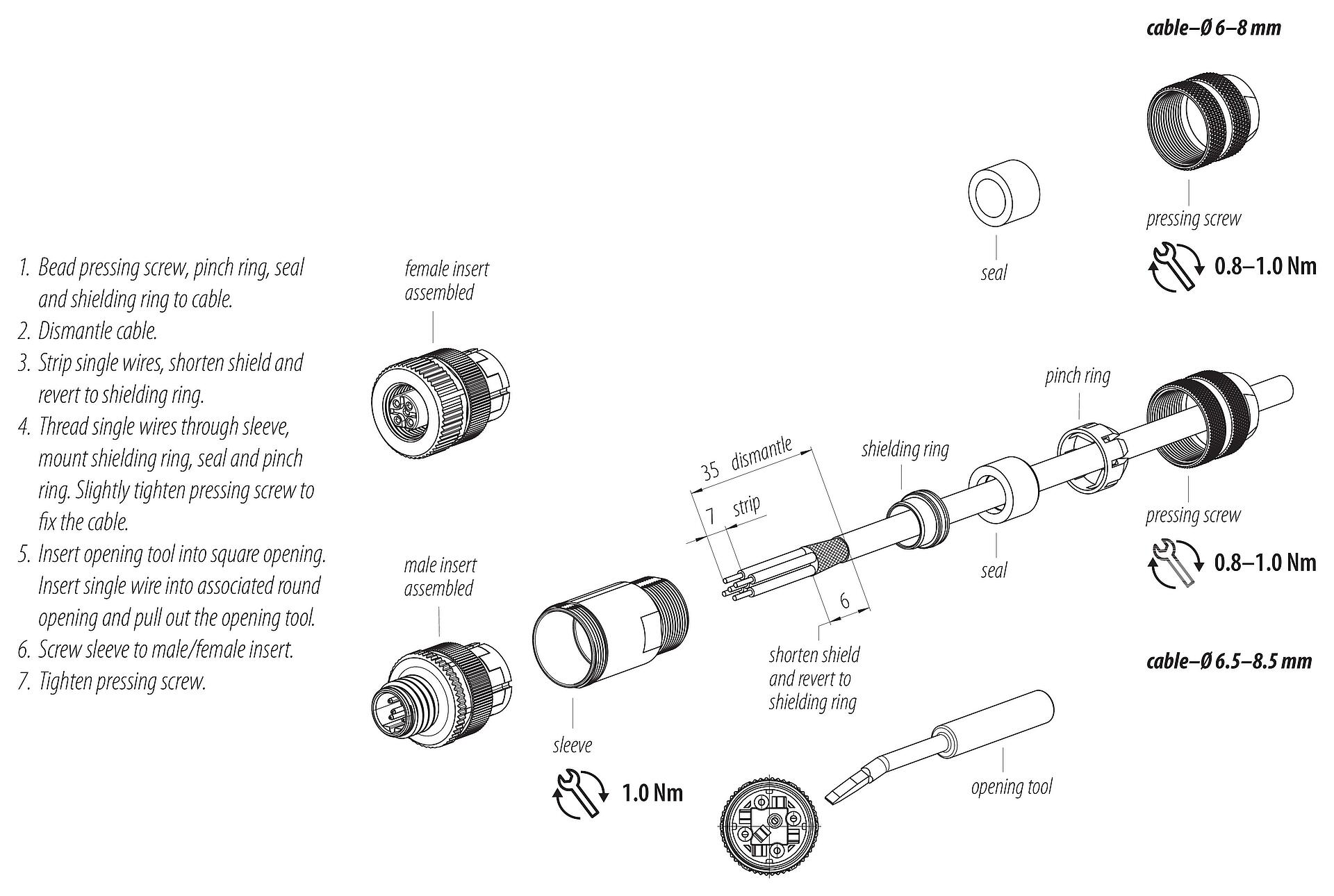

MorelessPart no. | 99 1536 810 05 |
Connector design | Female cable connector |
Type standard | DIN EN 61076-2-101 |
Version | Connector socket straight |
Connector locking system | screw |
Termination | wire clamp |
Degree of protection | IP67 |
Cross-sectional area | max. 0.50 mm² / AWG 20 |
Cable outlet | 6.0-8.0 mm |
Temperature range from/to | -40 °C / 85 °C |
Mechanical operation | > 100 Mating cycles |
Weight (g) | 45.59 |
Customs tariff number | 85369010 |
Country of Origin | DE |
Electrical parameters
MorelessRated voltage | 60 V |
Rated impulse voltage | 1500 V |
Rated current | 4.0 A |
Insulation resistance | ≥ 1010 Ω |
Pollution degree | 3 |
Overvoltage category | II |
Insulating material group | III |
EMC compliance | shieldable |
Shield connection | Shielding ring |
Material
MorelessHousing material | Zinc die-cast nickel-plated |
Contact body material | PA |
Contact material | CuSn (bronze) |
Contact plating | Au (gold) |
Locking material | Zinc die-cast nickel-plated |
REACH SVHC |
CAS 96-45-7 (Imidazolidine-2-thione) CAS 7439-92-1 (Lead) |
SCIP number | 787aeb84-a843-45ab-998b-1e1a1d3e8666 |
Classifications
MorelesseCl@ss 11.1 | 27-44-01-02 |
ETIM 9.0 | EC002635 |
Declarations of conformity
MorelessLow Voltage Directive | 2014/35/EU (EN 60204-1:2018;EN 60529:1991) |
General Disclaim Notice
- The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
- Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
- To lock the cable connector with the device connector, the threaded ring is tightened "hand-tight" (approx. 60 cNm).
