Part no.: 70 3734 705 04

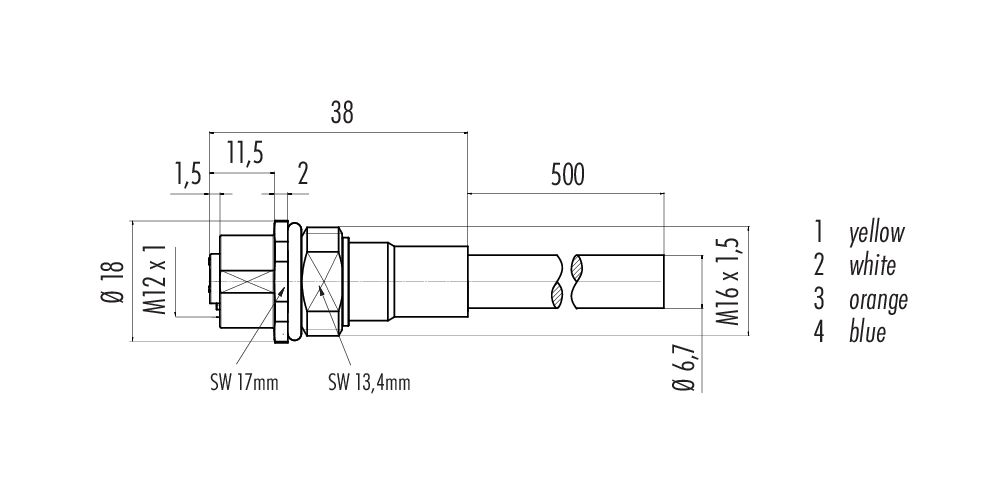

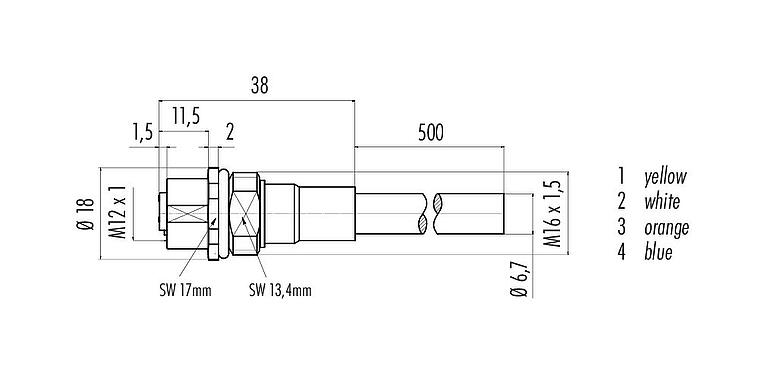

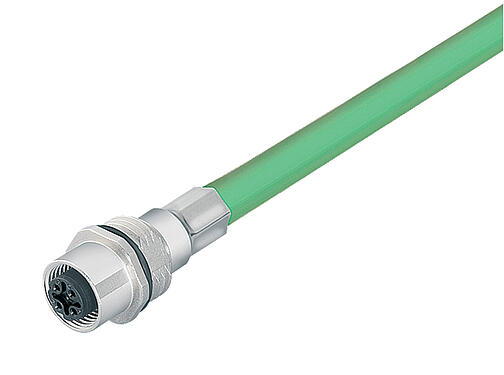

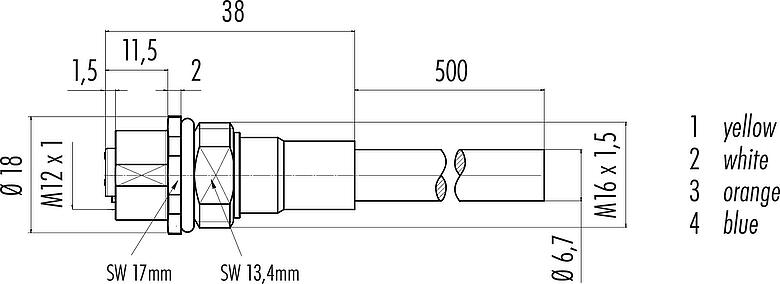

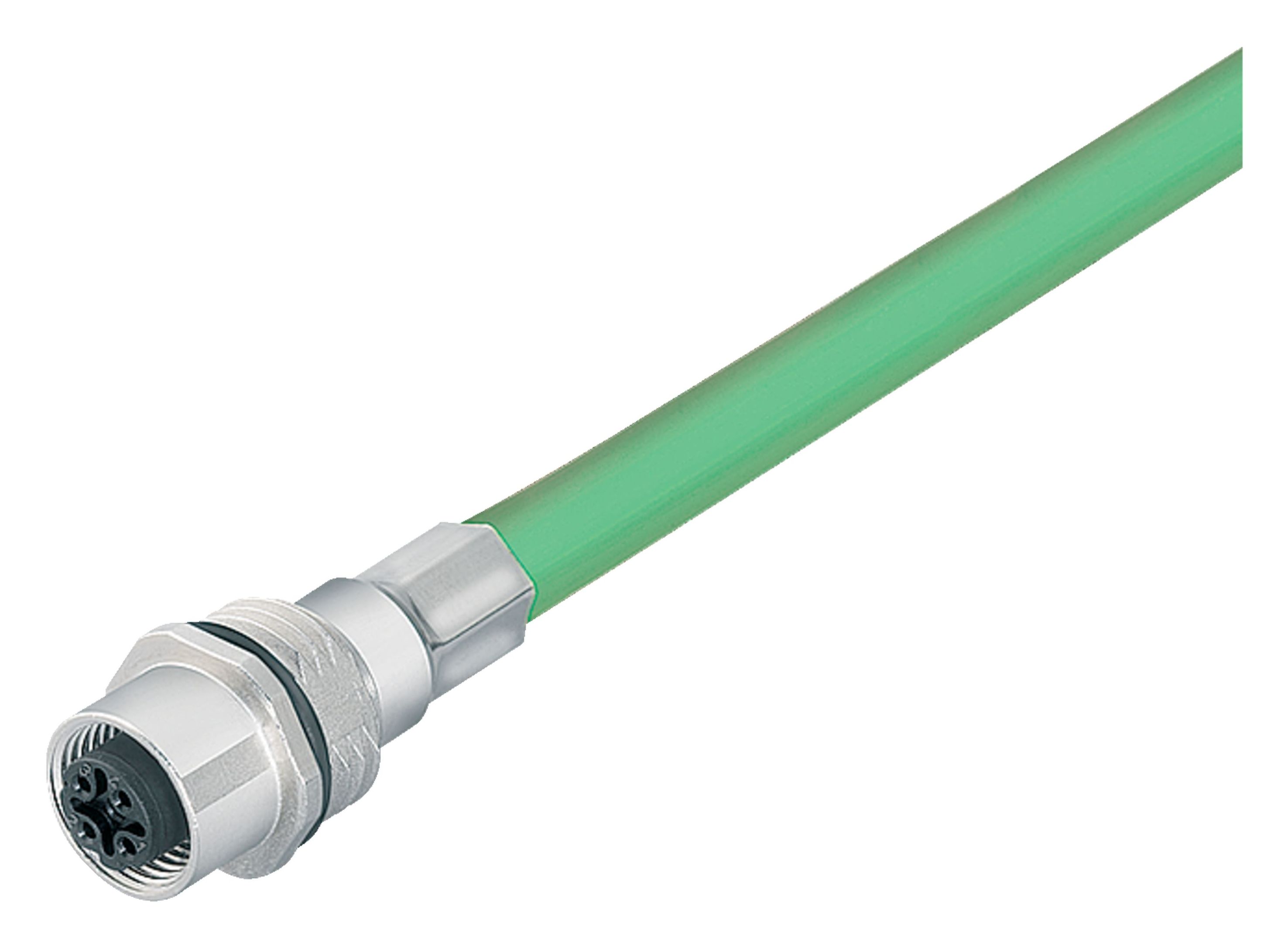

M12 Female panel mount connector, Contacts: 4, shielded, with cable assembled, IP67, UL, M16x1.5, Profinet, PUR, green, 2 x 2 x AWG 22, 0.5 m
M12-D, series 876, Automation Technology - Data Transmission
3D View(Click to activate)
This female panel mount connector with screw locking and a pin count of 4 is according to its protection class IP67 Dust-tight and has complete protection against contact and protection against temporary immersion. It can be used in areas with a pollution degree of 3. In places where contamination can occur that is conductive or can become conductive through condensation. With temperatures ranges of -25 °C/60 °C is this shielded M12-D coded female panel mount connector designed for both severe cold and severe heat. Due to the qualified rated voltage of 250 V and the rated current of 4,0 A it is perfectly tuned for its field of application. It complies with the type standard DIN EN 61076-2-101.
General features
Moreless| Part no. | 70 3734 705 04 |
| Connector design | Female panel mount connector |
| Type standard | DIN EN 61076-2-101 |
| Cable length | 0.5 m (Other lengths are available on request). |
| Version | Connector socket straight |
| Connector locking system | screw |
| Termination | with cable assembled |
| Degree of protection | IP67 |
| Cross-sectional area | AWG 22 |
| Temperature range from/to | -25 °C / 60 °C |
| Mechanical operation | > 500 Mating cycles |
| Weight (g) | 44.90 |
| Customs tariff number | 85444290 |
| Country of Origin | HU |
Electrical parameters
Moreless| Rated voltage | 250 V |
| Rated impulse voltage | 2500 V |
| Rated current | 4.0 A |
| Insulation resistance | > 10¹⁰ Ω |
| Pollution degree | 3 |
| Transmission rate | CAT 5 |
| Overvoltage category | II |
| Insulating material group | II |
| EMC compliance | shielded |
| Shield connection | Shield on the housing |
Material
Moreless| Housing material | CuZn (Brass nickel plated) |
| Contact body material | PA |
| Contact material | CuSn (bronze) |
| Contact plating | Au (gold) |
| Locking material | Zinc die-cast nickel-plated |
| REACH SVHC |
CAS 7439-92-1 (Lead) |
| SCIP number | 68c2783e-eb1e-4df7-9268-b48c5935ae97 |
Authorization/approvals
Moreless| Approvals | UL |
Classifications
Moreless| eCl@ss 11.1 | 27-06-03-11 |
| ETIM 9.0 | EC002638 |
Cable data
Moreless| Structure of the cable | |
| Cable type | Profinet |
| Cable diameter | 6.7 mm |
| Cross section | 2 x 2 x AWG 22 |
| Sheath material | PUR |
| Single-lead insulation | Polyolefin |
| Single-lead structure | AWG 22/7 |
| Cable color | green |
| Electrical properties | |
| Conductor resistance | 55 Ω/Km (20°C) |
| Mechanical properties | |
| Bending radius, fixed cable | ≥ 5 x Ø |
| Bending radius, moving cable | ≥ 15 x Ø |
| Bending cycles | > 10 x Ø (2 million) |
| Permitted acceleration | 2 m/s² |
| Travel distance, horizontal | at 5 m/s² -> 5 m |
| Travel distance, vertical | at 5 m/s² -> 5 m |
| Travel speed | ≤ 200 m/min (5 m horizontal distance) |
| Thermal properties | |
| Temperature range cable in move from/to | -20 °C / 60 °C |
| Temperature range cable fixed from/to | -40 °C / 80 °C |
| Other features | |
| Halogen free | yes |
General Disclaim Notice
- The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
- The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
- Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
