Part no.: 99 3731 401 04
M12 Male panel mount connector, Contacts: 4, shieldable, SMT, IP67
M12-D, series 876, Automation Technology - Data Transmission
This male panel mount connector with screw locking and a pin count of 4 is according to its protection class IP67 Dust-tight and has complete protection against contact and protection against temporary immersion. It can be used in areas with a pollution degree of 3. In places where contamination can occur that is conductive or can become conductive through condensation. With temperatures ranges of -40 °C/85 °C is this shieldable M12-D coded male panel mount connector designed for both severe cold and severe heat. Due to the qualified rated voltage of 250 V and the rated current of 4,0 A it is perfectly tuned for its field of application. It complies with the type standard DIN EN 61076-2-101.
General features
MorelessPart no. | 99 3731 401 04 |
Connector design | Male panel mount connector |
Type standard | DIN EN 61076-2-101 |
Version | Connector pin straight |
Connector locking system | screw |
Termination | SMT |
Degree of protection | IP67 |
Temperature range from/to | -40 °C / 85 °C |
Mechanical operation | > 100 Mating cycles |

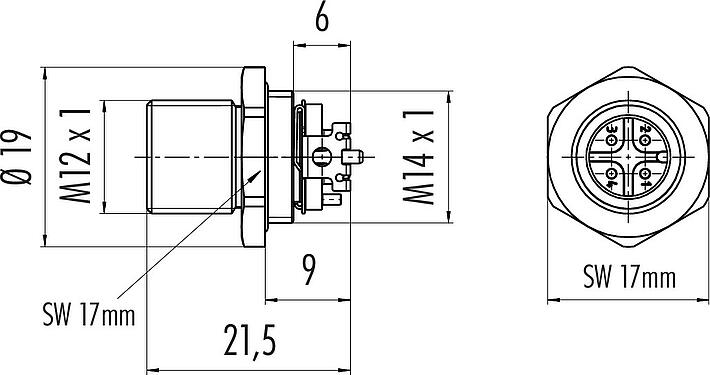

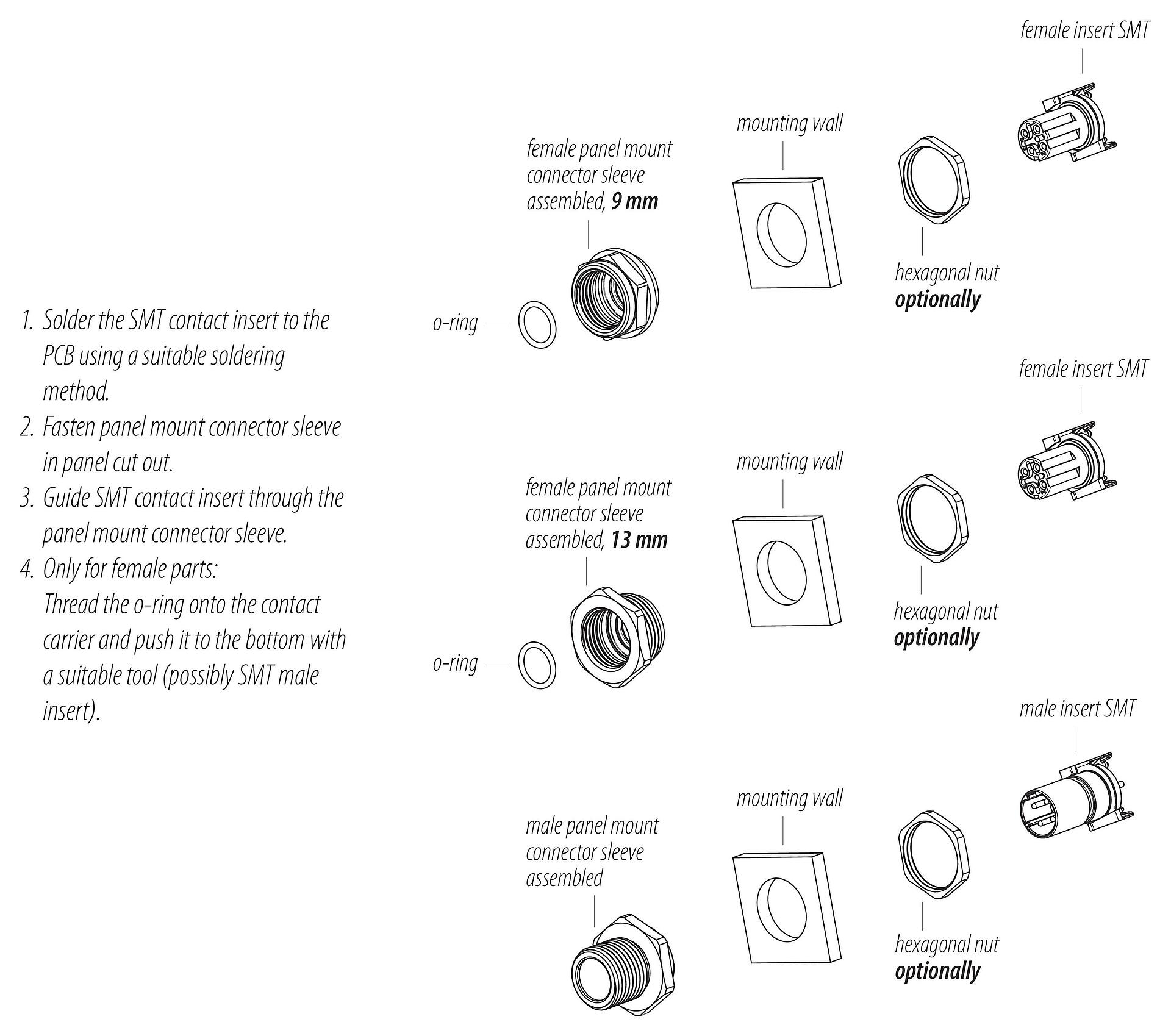

Installation height | 9 |
Weight (g) | 9.21 |
Customs tariff number | 85369010 |
Country of Origin | DE |
Electrical parameters
MorelessRated voltage | 250 V |
Rated impulse voltage | 2500 V |
Rated current | 4.0 A |
Insulation resistance | > 108 Ω |
Pollution degree | 3 |
Transmission rate | CAT 5 |
Overvoltage category | II |
Insulating material group | II |
EMC compliance | shieldable |
Shield connection | Shielding plate |
Voltage | 250 V DC |
Material
MorelessHousing material | CuZn (Brass nickel plated) |
Contact body material | LCP |
Contact material | CuZn (brass) |
Contact plating | Au (gold) |
Locking material | CuZn (brass) |
REACH SVHC |
CAS 7439-92-1 (Lead) |
SCIP number | a7438c75-a50a-4155-bd74-5cbe0fabb21a |
Classifications
MorelesseCl@ss 11.1 | 27-44-01-02 |
ETIM 9.0 | EC002635 |
General Disclaim Notice
- The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
- The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
- Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
- To lock the cable connector with the device connector, the threaded ring is tightened "hand-tight" (approx. 50 cNm).
