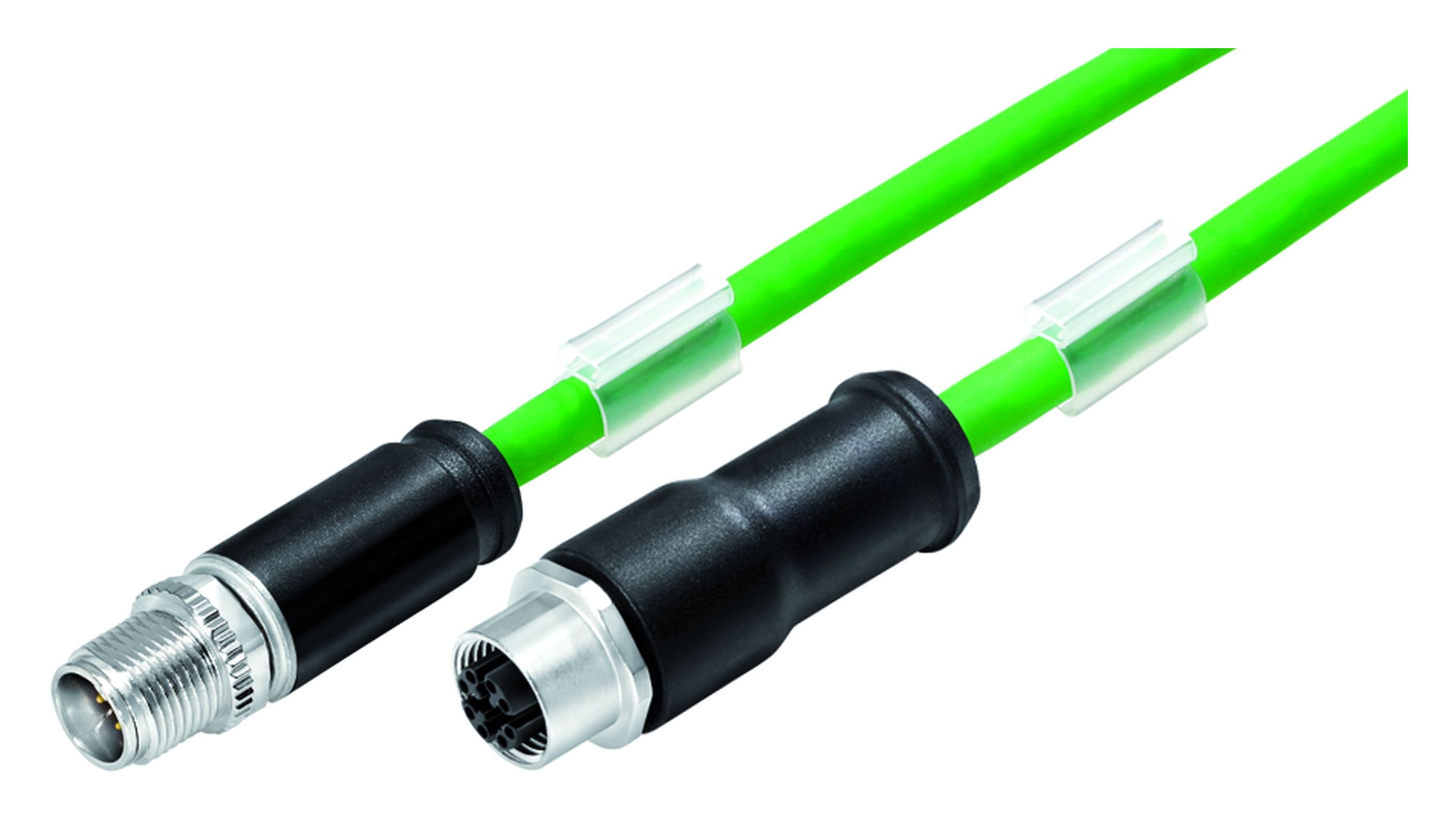

  4. M12/M12 Connecting cable male cable connector - female cable connector, Contacts: 8, shielded, moulded on the cable, IP67, UL, PUR, green, AWG 26/7, 10 m
Part no.: 79 9724 100 08

M12/M12 Connecting cable male cable connector - female cable connector, Contacts: 8, shielded, moulded on the cable, IP67, UL, PUR, green, AWG 26/7, 10 m

M12-X, series 876, Automation Technology - Data Transmission
(Other lengths are available on request).
Compare product
Downloads
This female cable connector with with screw locking and a pin count of 8 is according to its protection class IP67 Dust-tight and has complete protection against contact and protection against temporary immersion. It can be used in areas with a pollution degree of 3. In places where contamination can occur that is conductive or can become conductive through condensation. With temperatures ranges of -40 °C/85 °C is this shielded M12-X connecting cable designed for both severe cold and severe heat. und has the UL approval. Due to the qualified rated voltage of 50 V (AC ) / 60 V (DC) and the rated current of 0,5 A it is perfectly tuned for its field of application. It complies with the type standard DIN EN 61076-2-109.
General features
Moreless
Part no. 79 9724 100 08

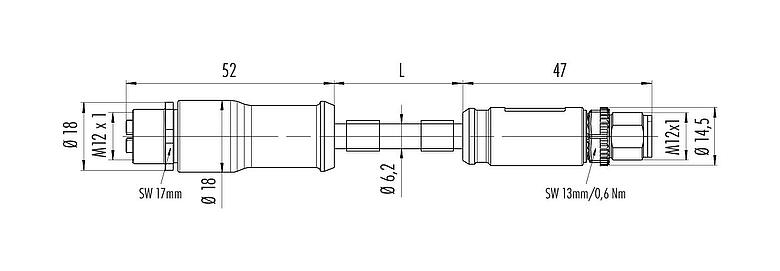

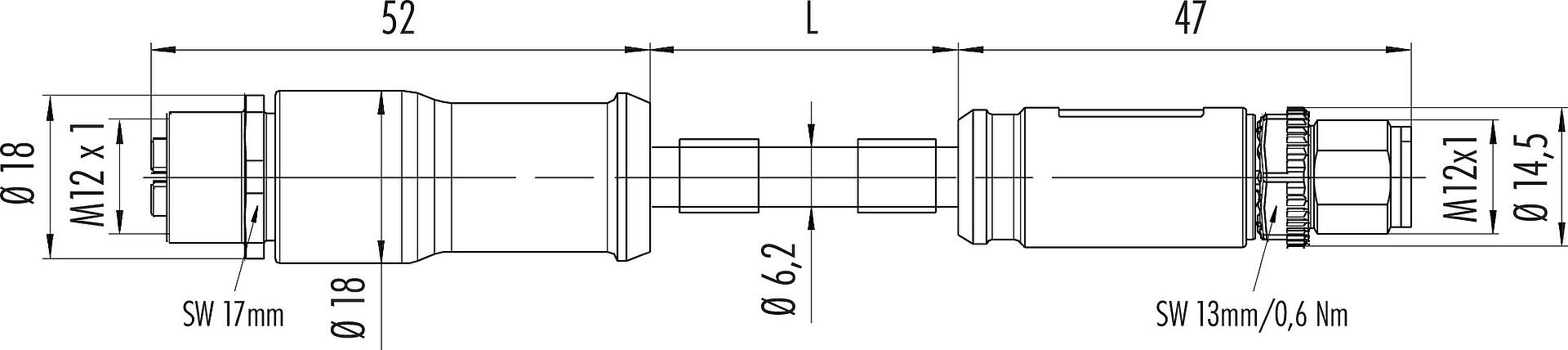

Connector design Connecting cable male cable connector - female cable connector
Type standard DIN EN 61076-2-109
Cable length 10 m (Other lengths are available on request).
Version Connecting cable
Connector locking system screw
Termination moulded on the cable
Degree of protection IP67
Cross-sectional area AWG 26/7
Temperature range from/to -40 °C / 85 °C
Mechanical operation > 100 Mating cycles
Weight (g) 448.00
Customs tariff number 85444290
Country of Origin DE
Rated voltage 50 V (AC) / 60 V (DC)
Rated current 0.5 A
Insulation resistance > 108 Ω
Pollution degree 3
Transmission rate CAT 6A
Overvoltage category II
Insulating material group II
EMC compliance shielded
Shield connection Shield on the threaded ring
Housing material PUR
Contact body material PA
Contact material CuZn (brass) / CuSn (bronze)
Contact plating Au (gold)
Locking material Zinc die-cast nickel-plated
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number 994d5777-8926-4762-8de5-d2b1c14c4cf4
eCl@ss 11.1 27-06-03-11
ETIM 9.0 EC002638
RoHS Directive 2011/65/EU (EN 50581:2012)
Cable data
Moreless

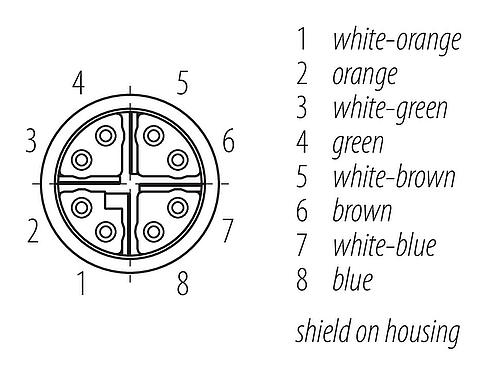

Structure of the cable
Cable diameter 6.2 mm
Cross section AWG 26/7
Sheath material PUR
Single-lead insulation PE
Single-lead structure 8 x 0.14 mm
Cable color green
Mechanical properties
Bending radius, fixed cable ≥ 8 x Ø
Thermal properties
Temperature range cable in move from/to -10 °C / 60 °C
Temperature range cable fixed from/to -40 °C / 85 °C
Other features
Halogen free yes
General Disclaim Notice
  1. The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
  2. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  3. Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
  4. The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
  5. Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
  6. The plug connector is not suitable for mains voltages Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
