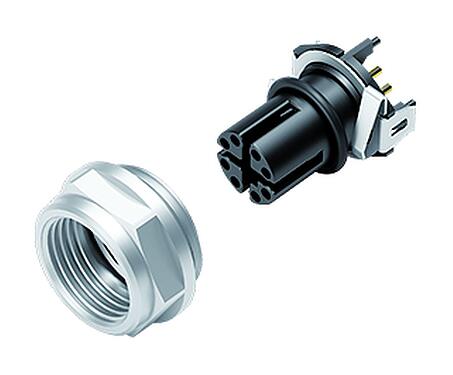

M12 Female panel mount connector, Contacts: 8, shieldable, SMT, IP68, M14x1.0

This female panel mount connector with screw locking and a pin count of 8 is according to its protection class IP68 Dustproof and complete protection against contact. Protection against permanent submersion. Unless otherwise specified, protection up to 1 meter water depth. It can be used in areas with a pollution degree of 3. In places where contamination can occur that is conductive or can become conductive through condensation. With temperatures ranges of -40 °C/85 °C is this shieldable M12-X female panel mount connector designed for both severe cold and severe heat. und has the UL approval. Due to the qualified rated voltage of 50 V (AC ) / 60 V (DC) and the rated current of 0,5 A it is perfectly tuned for its field of application. It complies with the type standard DIN EN 61076-2-109.
