Part no.: 09 2449 300 04

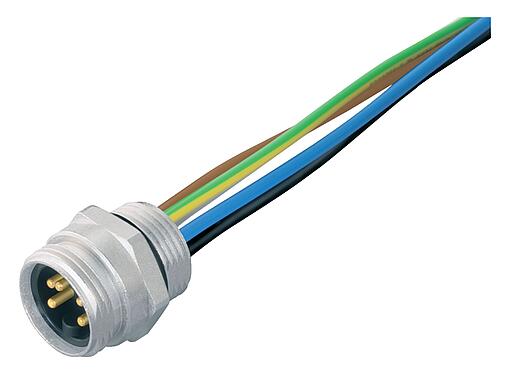

7/8" Male panel mount connector, Contacts: 4, unshielded, single wires, IP68, UL, VDE, PG 13.5
7/8", series 820, Automation Technology - Voltage and Power Supply
3D View(Click to activate)
This male panel mount connector with screw locking and a pin count of 4 is according to its protection class IP68 Dustproof and complete protection against contact. Protection against permanent submersion. Unless otherwise specified, protection up to 1 meter water depth. It can be used in areas with a pollution degree of 3. In places where contamination can occur that is conductive or can become conductive through condensation. With temperatures ranges of -25 °C/85 °C is this unshielded 7/8" male panel mount connector designed for both severe cold and severe heat and has the UL, VDE approval. Due to the qualified rated voltage of 300 V (600 V UL) and the rated current of 7,0 A it is perfectly tuned for its field of application.
General features
Moreless| Part no. | 09 2449 300 04 |
| Connector design | Male panel mount connector |
| Version | Connector pin straight |
| Connector locking system | screw |
| Termination | single wires |
| Degree of protection | IP68 |
| Cross-sectional area | 0.75 mm² / AWG 18 |
| Temperature range from/to | -25 °C / 85 °C |
| Mechanical operation | > 100 Mating cycles |
| Weight (g) | 44.27 |
| Customs tariff number | 85369010 |
| Country of Origin | DE |
Electrical parameters
Moreless| Rated voltage | 300 V (600 V UL) |
| Rated impulse voltage | 4000 V |
| Rated current | 7.0 A |
| Pollution degree | 3 |
| Overvoltage category | III |
| Insulating material group | I |
| EMC compliance | unshielded |
Material
Moreless| Housing material | Zinc die-cast nickel-plated |
| Contact body material | PUR |
| Contact material | CuZn (brass) |
| Contact plating | Au (gold) |
| REACH SVHC |
CAS 7439-92-1 (Lead) |
| SCIP number | a6e85f05-f971-43e0-ac37-e4eac9c8c44d |
Authorization/approvals
Moreless| Approvals | UL, VDE |
Classifications
Moreless| eCl@ss 11.1 | 27-44-01-09 |
| ETIM 9.0 | EC003569 |
General Disclaim Notice
- The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
- The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
- Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
