Name: 7/8"
Brand: binder
SKU: 99 2444 282 05

Illustration 99 2444 282 05 - 7/8 — Illustration

Component part drawing 99 2444 282 05 - 7/8 — Component part drawing

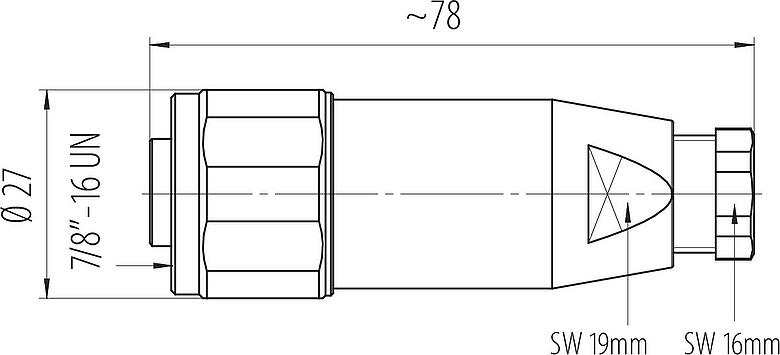

Scale drawing 99 2444 282 05 - 7/8 — Scale drawing

Assembly instructions 99 2444 282 05 - 7/8 — Assembly instructions

Contact arrangement (Plug-in side) 99 2444 282 05 - 7/8 — Contact arrangement (Plug-in side)

This female cable connector with screw locking and a pin count of 4+PE is according to its protection class IP67 Dust-tight and has complete protection against contact and protection against temporary immersion. It can be used in areas with a pollution degree of 3. In places where contamination can occur that is conductive or can become conductive through condensation. With temperatures ranges of -25 °C/85 °C is this unshielded 7/8" female cable connector designed for both severe cold and severe heat and has the UL, VDE approval. Due to the qualified rated voltage of 300 V (600 V UL) and the rated current of 9,0 A it is perfectly tuned for its field of application.

Moreless

Part no.	99 2444 282 05
Connector design	Female cable connector
Version	Connector socket straight
Connector locking system	screw
Termination	screw clamp
Degree of protection	IP67
Connection cross-section	max. 1.50 mm² / AWG 16
Cable outlet	6.0-8.0 mm
Temperature range from/to	-25 °C / 85 °C
Mechanical operation	> 50 Mating cycles
Weight (g)	55.01
Customs tariff number	85369010
Country of Origin	DE

Moreless

Rated voltage	300 V (600 V UL)
Rated impulse voltage	4000 V
Rated current	9.0 A
Insulation resistance	≥ 10¹⁰ Ω
Pollution degree	3
Overvoltage category	III
Insulating material group	III
EMC compliance	unshielded

Moreless

Housing material	PBT
Contact body material	PUR/PA
Contact material	CuZn (brass) / CuSn (bronze)
Contact plating	Au (gold)
Locking material	Stainless steel
REACH SVHC	CAS 7439-92-1 (Lead)
SCIP number	d3d49b67-e515-4695-9727-5a283131d6f8

Moreless

Approvals	UL, VDE

Moreless

eCl@ss 11.1	27-44-01-02
ETIM 9.0	EC002635

Moreless

Low Voltage Directive	2014/35/EU (EN 60529:1991 \| 2014/35/EU;EN 60204-1:2018)

Report error on this page

General Disclaim Notice

The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
To protect against unintentional opening of the connector, the thread between the housing and the connector head must be secured with a suitable cyanoacrylate adhesive when used in circuits with voltages dangerous to the touch. This does not apply to connectors used in SELV and PELV circuits according to IEC 61140 (EN 61140, VDE 0140-1).
Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
To lock the cable connector to the device connector, we recommend tightening the threaded ring to 1.5 Nm. A suitable torque wrench is available as an accessory (order no. 07 0082 000).
