M12-S
M12 Male panel mount connector, Contacts: 3, unshielded, single wires, IP68, UL 2238, M16x1.5, Rear mounting

Illustration M12 Male panel mount connector, Contacts: 3, unshielded, single wires, IP68, UL 2238, M16x1.5, Rear mounting — Illustration

3D View M12 Male panel mount connector, Contacts: 3, unshielded, single wires, IP68, UL 2238, M16x1.5, Rear mounting — 3D View

Derating curve M12 Male panel mount connector, Contacts: 3, unshielded, single wires, IP68, UL 2238, M16x1.5, Rear mounting — Derating curve

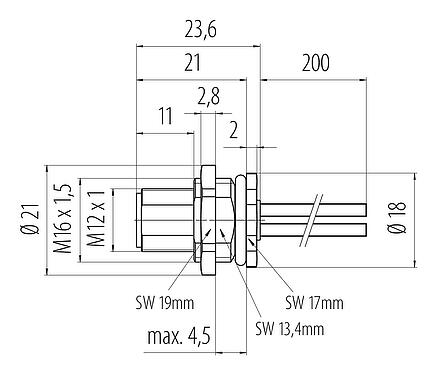

Scale drawing M12 Male panel mount connector, Contacts: 3, unshielded, single wires, IP68, UL 2238, M16x1.5, Rear mounting — Scale drawing

Assembly instructions / Panel cut-out M12 Male panel mount connector, Contacts: 3, unshielded, single wires, IP68, UL 2238, M16x1.5, Rear mounting — Assembly instructions / Panel cut-out

Contact arrangement (Plug-in side) M12 Male panel mount connector, Contacts: 3, unshielded, single wires, IP68, UL 2238, M16x1.5, Rear mounting — Contact arrangement (Plug-in side)

Part no.	76 0641 1136 00033-0200 Alternative part no.: 09 0687 121 03
Notice	Please note that, due to the change from the old to the new order number, there may be deviations in the technical specifications. For questions about product details, please use the ‘Contact Customer Service’ form on the right. More
Connector design	Male panel mount connector
Type standard	DIN EN IEC 61076-2-111:2018-10;VDE 0687-76-2-111:2018-10
Coding	S-coded
Wire length	0.2 m (Standard 0.2m. Other lengths are available on request).
Version	Connector pin straight
Connector locking system	screw
Termination	single wires
Degree of protection	IP68
Connection cross-section	1.50 mm² / AWG 16
Temperature range from/to	-40 °C / 85 °C
Mechanical operation	> 100 Mating cycles
Weight (g)	23.30
Customs tariff number	85369010
Country of Origin	DE

Rated voltage	630 V
Rated impulse voltage	6000 V
Rated current	16.0 A
Pollution degree	3
Overvoltage category	III
Insulating material group	II
EMC compliance	unshielded

Housing material	Zinc die-cast nickel-plated
Contact body material	PA
Contact material	CuZn (brass)
Contact plating	Au (gold)
REACH SVHC	CAS 7439-92-1 (Lead)
SCIP number	54ec6188-6030-4916-8397-06f3290c9ee6

Structure of the wire
Cross section (mm²)	3 x 1.50 mm²
Cross section (AWG)	3 x AWG 16
Wire diameter	2,3
Wire colors	yellow/green black
Sheath material	mPPE
Wire material	Cu (verzinnt)
Wire structure	40 x 0.210 mm
Electrical properties
Rated voltage	1000 V
Rated impulse voltage	3000 V
Wire resistance	14.6
Insulation resistance	20.0 MΩ/Km (20 °C)
Thermal properties
Temperature range wire in move from / to (°C)	-10 °C / 105 °C
Temperature range wire fixed from / to (°C)	-40 °C / 105 °C

Approvals	UL 2238

eCl@ss 11.1	27-44-01-09
ETIM 9.0	EC003569
