Part no.: 86 1240 1100 00044

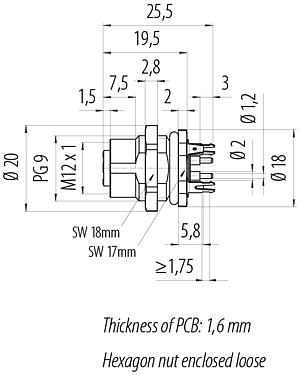

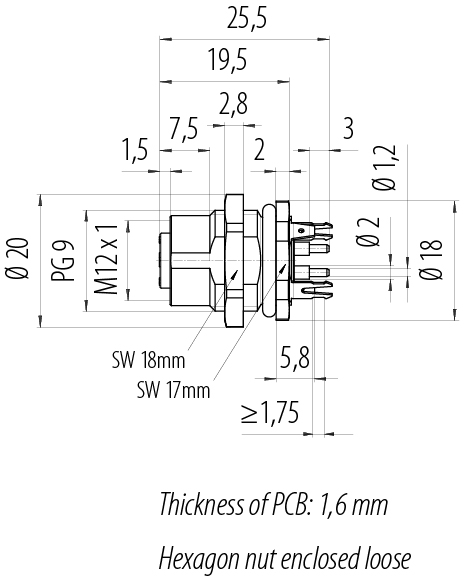

M12 Female panel mount connector, Contacts: 4, shielded, THT, IP68, UL 2238, PG 9, Rear mounting
M12-T, series 813, Automation Technology - Voltage and Power Supply
General features
Moreless| Part no. | 86 1240 1100 00044 |
| Connector design | Female panel mount connector |
| Coding | T-coded |
| Version | Panel mount Connectors |
| Connector locking system | screw |
| Termination | THT |
| Degree of protection | IP68 |
| Connection cross-section | max. 1.50 mm² with ferrule / max. 2.50 mm² without ferrule |
| Temperature range from/to | -40 °C / 85 °C |
| Mechanical operation | > 100 Mating cycles |
| Weight (g) | 17.11 |
| Customs tariff number | 85369010 |
| Country of Origin | DE |
Electrical parameters
Moreless| Rated voltage | 63 V |
| Rated impulse voltage | 1500 V |
| Rated current | 12.0 A |
| Insulation resistance | > 108 Ω |
| Pollution degree | 3 |
| Overvoltage category | III |
| Insulating material group | II |
| EMC compliance | shielded |
Material
Moreless| Contact body material | Zinc die-cast nickel-plated |
| Contact material | CuZn (brass) |
| Contact plating | Au (gold) |
| Locking material | Zinc die-cast nickel-plated |
| REACH SVHC |
CAS 7439-92-1 (Lead) |
| SCIP number | a3d21f95-b381-4a5f-94ea-2b7ca8ce50ec |
Authorization/approvals
Moreless| Approvals | UL 2238 |
Declarations of conformity
Moreless| Low Voltage Directive | 2014/35/EU (EN 60204-1:2018 | 2011/65/EU;EN 50581:2012 | 2014/35/EU;EN 60529:1991) |
| RoHS Directive | 2011/65/EU (EN 50581:2012) |
General Disclaim Notice
- The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
- The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
- Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
- The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
- Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
- Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
- To lock the cable connector with the device connector, the threaded ring is tightened "hand-tight" (approx. 60 cNm).
