Part no.: 09 0441 81 04

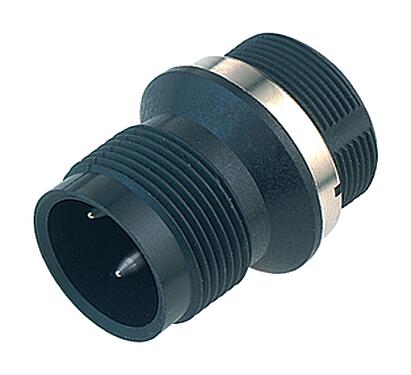

M18 Male panel mount connector, Contacts: 4, unshielded, solder, IP67
M18, series 714, Automation Technology - Voltage and Power Supply
|Part no.||09 0441 81 04|
|Connector design||Male panel mount connector|
|Version||Connector pin straight|
|Connector locking system||screw|
|Degree of protection||IP67|
|Cross-sectional area||1.50 mm² / AWG 16|
|Temperature range from/to||-25 °C / 85 °C|
|Mechanical operation||> 50 Mating cycles|
|Customs tariff number||85369010|
|Country of Origin||DE|
|Rated voltage||250 V|
|Rated impulse voltage||4000 V|
|Rated current||16.0 A|
|Insulation resistance||> 10⁸ Ω|
|Insulating material group||III|
|Contact body material||PUR/PA|
|Contact material||CuZn (brass)|
|Contact plating||CuSnZn (Optalloy)|
CAS 7439-92-1 (Lead)|
