  4. M8 Male cable connector - female angled connector M12x1, Contacts: 4, unshielded, moulded on the cable, IP67, UL, PUR, black, 4 x 0.34 mm², 1 m
Part no.: 77 3434 3405 50004-0100

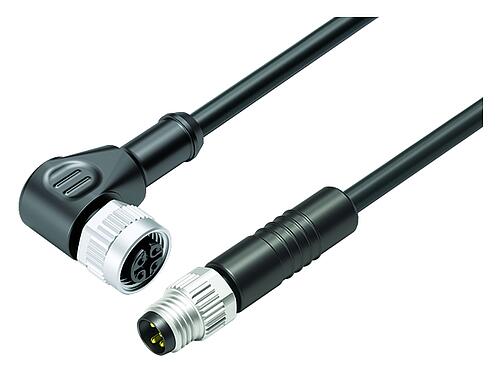

M8 Male cable connector - female angled connector M12x1, Contacts: 4, unshielded, moulded on the cable, IP67, UL, PUR, black, 4 x 0.34 mm², 1 m

series 765, Automation Technology - Sensors and Actuators
Available numbers of contacts
(Standard 1 m and 2 m. Other lengths are available on request.)
Compare product
Downloads
This male cable connector - female cable connector with screw locking and a pin count of 4 is according to its protection class IP67 Dust-tight and has complete protection against contact and protection against temporary immersion. It can be used in areas with a pollution degree of 3. In places where contamination can occur that is conductive or can become conductive through condensation. With temperatures ranges of -25 °C/85 °C is this unshielded connecting cableen male cable connector - female cable connector designed for both severe cold and severe heat. und has the UL approval. Due to the qualified rated voltage of 60 V and the rated current of 4,0 A it is perfectly tuned for its field of application. It complies with the type standard DIN EN 61076-2-104.
General features
Moreless
Part no. 77 3434 3405 50004-0100
Alternative part no.: 79 5077 10 04
Notice
Please note that, due to the change from the old to the new order number, there may be deviations in the technical specifications. For questions about product details, please use the ‘Contact Customer Service’ form on the right.
More
Connector design Male cable connector - female angled connector M12x1
Type standard DIN EN 61076-2-104
DIN EN 61076-2-101
Cable length 1 m (Standard 1 m and 2 m. Other lengths are available on request.)
Version Connecting cable
Connector locking system screw
Termination moulded on the cable
Degree of protection IP67
Cross-sectional area 0.34 mm² / AWG 22
Temperature range from/to -25 °C / 85 °C
Mechanical operation > 100 Mating cycles
Weight (g) 29
Customs tariff number 85444290
Country of Origin DE
Rated voltage 60 V
Rated impulse voltage 800 V
Rated current 4.0 A
Pollution degree 3
Overvoltage category II
Insulating material group II
EMC compliance unshielded
Contact body material PUR
Contact material CuZn (brass)
Contact plating Au (gold)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number f9312a52-6de7-4c3d-9d41-0e1409560172
ETIM 9.0 EC002638
Cable data
Moreless
Structure of the cable
Cable diameter 4.7 mm
Cross section 4 x 0.34 mm²
Sheath material PUR
Single-lead insulation PP9Y halogen-free
Single-lead structure 42 x 0.10 mm
Cable color black
Mechanical properties
Bending radius, fixed cable ≥ 5 x Ø
Bending radius, moving cable ≥ 10 x Ø
Bending cycles > 5 million
Permitted acceleration 5 m/s²
Travel speed ≤ 200 m/min (5 m horizontal distance)
Thermal properties
Temperature range cable in move from/to -25 °C / 90 °C
Temperature range cable fixed from/to -50 °C / 90 °C
General Disclaim Notice
  1. The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
  2. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  3. To protect against unintentional opening of the connector, the thread between the housing and the connector head must be secured with a suitable cyanoacrylate adhesive when used in circuits with voltages dangerous to the touch. This does not apply to connectors used in SELV and PELV circuits according to IEC 61140 (EN 61140, VDE 0140-1).
  4. Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
  5. The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
  6. Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
  7. The plug connector is not suitable for mains voltages Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
  8. To lock the cable connector with the device connector, the threaded ring is tightened "hand-tight" (approx. 60 cNm).
