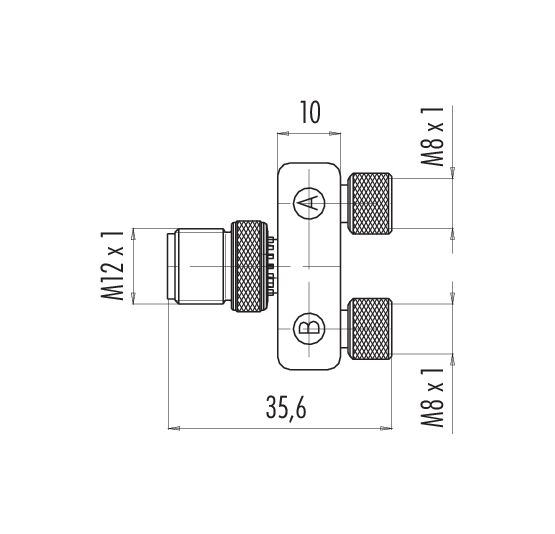

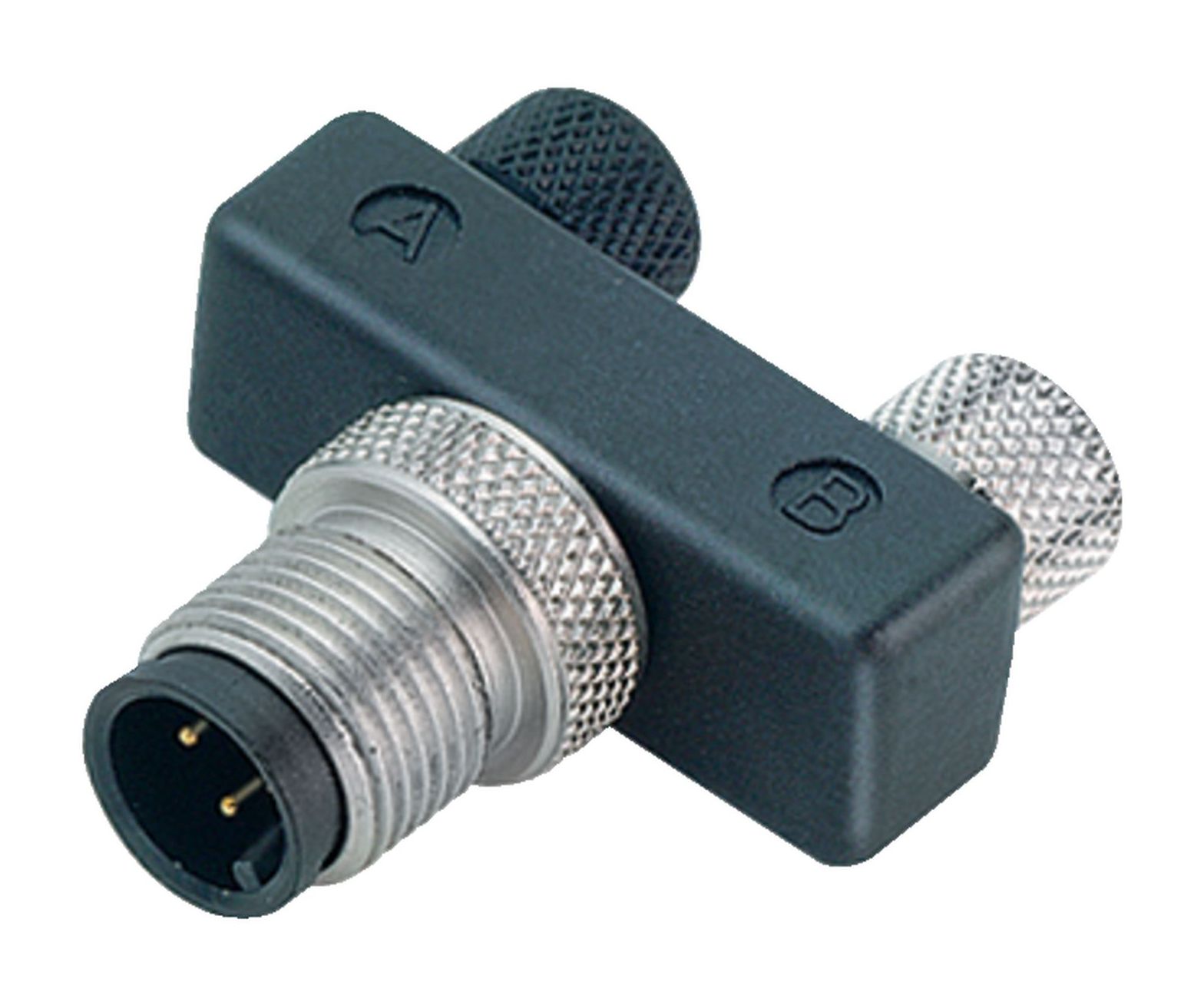

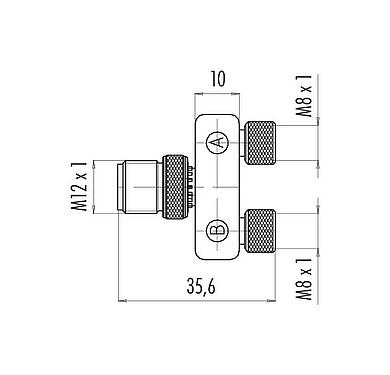

  4. M8 Twin distributor, Y-distributor, male M8x1 - 2 female M8x1, Contacts: 4/3, unshielded, pluggable, IP68, UL
Part no.: 79 5204 00 04

M8 Twin distributor, Y-distributor, male M8x1 - 2 female M8x1, Contacts: 4/3, unshielded, pluggable, IP68, UL

series 765, Automation Technology - Sensors and Actuators
Compare product
This dual distributor with screw locking and a pin count of 4/3 is according to its protection class IP68 Dustproof and complete protection against contact. Protection against permanent submersion. Unless otherwise specified, protection up to 1 meter water depth. It can be used in areas with a pollution degree of 3. In places where contamination can occur that is conductive or can become conductive through condensation. With temperatures ranges of -25 °C/85 °C is this unshielded connecting cableen dual distributor designed for both severe cold and severe heat. und has the UL approval. Due to the qualified rated voltage of 30 V and the rated current of 4,0 A it is perfectly tuned for its field of application. It complies with the type standard DIN EN 61076-2-104.
General features
Part no. 79 5204 00 04
Connector design Twin distributor, Y-distributor, male M8x1 - 2 female M8x1
Type standard DIN EN 61076-2-104
DIN EN 61076-2-101
Version Twin distributors
Connector locking system screw
Termination pluggable
Degree of protection IP68
Temperature range from/to -25 °C / 85 °C
Mechanical operation > 100 Mating cycles
Weight (g) 17.00
Customs tariff number 85369010
Country of Origin DE
Rated voltage 30 V
Rated impulse voltage 800 V
Rated current 4.0 A
Pollution degree 3
Overvoltage category II
Insulating material group II
EMC compliance unshielded
Housing material PUR
Contact body material PUR
Contact material CuZn (brass) / CuSn (bronze)
Contact plating Au (gold)
Locking material Zinc die-cast nickel-plated
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number 412ea9bc-15ac-40bd-b577-da5c32245195
eCl@ss 11.1 27-06-03-11
ETIM 9.0 EC002638
RoHS Directive 2011/65/EU (EN 50581:2012)
General Disclaim Notice
  1. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  2. Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
  3. To lock the cable connector with the device connector, the threaded ring is tightened "hand-tight" (approx. 60 cNm).
