  2. Automation technology - Sensors and actuators
  3. M12-A
  4. M12 Male panel mount connector, Contacts: 5, unshielded, single wires, IP68, UL, PG 13.5
Part no.: 76 0331 0111 00005-0200

M12 Male panel mount connector, Contacts: 5, unshielded, single wires, IP68, UL, PG 13.5

M12-A, series 763, Automation Technology - Sensors and Actuators
Available numbers of contacts
Compare product
Downloads
This male panel mount connector with screw locking and a pin count of 5 is according to its protection class IP68 Dustproof and complete protection against contact. Protection against permanent submersion. Unless otherwise specified, protection up to 1 meter water depth. It can be used in areas with a pollution degree of 3. In places where contamination can occur that is conductive or can become conductive through condensation. With temperatures ranges of -40 °C/85 °C is this unshielded M12-A coded male panel mount connector designed for both severe cold and severe heat. und has the UL approval. Due to the qualified rated voltage of 60 V and the rated current of 4,0 A it is perfectly tuned for its field of application. It complies with the type standard DIN EN 61076-2-101.

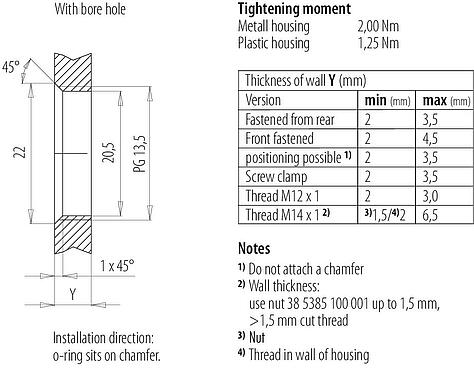

General features
Moreless
Part no. 76 0331 0111 00005-0200
Alternative part no.: 09 3441 50 05
Notice
Please note that, due to the change from the old to the new order number, there may be deviations in the technical specifications. For questions about product details, please use the ‘Contact Customer Service’ form on the right.
More
Connector design Male panel mount connector
Type standard DIN EN 61076-2-101
Wire length 0.2 m (Standard 0.2m. Other lengths are available on request).
Version Connector pin straight
Connector locking system screw
Termination single wires
Degree of protection IP68
Cross-sectional area 0.25 mm² / AWG 24
Temperature range from/to -40 °C / 85 °C
Mechanical operation > 100 Mating cycles
Weight (g) 21.99
Customs tariff number 85369010
Rated voltage 60 V
Rated impulse voltage 1500 V
Rated current 4.0 A
Insulation resistance > 108 Ω
Pollution degree 3
Overvoltage category II
Insulating material group II
EMC compliance unshielded
Housing material CuZn (Brass nickel plated)
Contact body material PA black
Contact material CuZn (brass)
Contact plating Au (gold)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number 46c915d2-cc6a-457a-b088-3709c0b19da2
eCl@ss 11.1 27-44-01-03
ETIM 9.0 EC003570
General Disclaim Notice
  1. The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
  2. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  3. The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
  4. Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
