  4. M12 Female panel mount connector, Contacts: 8, unshielded, single wires, IP67, UL, PG 9, front fastened
Part no.: 76 4832 3011 00008-0200

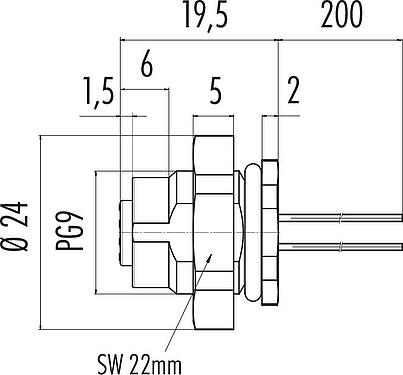

M12 Female panel mount connector, Contacts: 8, unshielded, single wires, IP67, UL, PG 9, front fastened

M12-A, series 763, Automation Technology - Sensors and Actuators
Available numbers of contacts
Compare product
Downloads
This female panel mount connector with screw locking and a pin count of 8 is according to its protection class IP67 Dust-tight and has complete protection against contact and protection against temporary immersion. It can be used in areas with a pollution degree of 3. In places where contamination can occur that is conductive or can become conductive through condensation. With temperatures ranges of -40 °C/85 °C is this unshielded M12-A coded female panel mount connector designed for both severe cold and severe heat. und has the UL approval. Due to the qualified rated voltage of 30 V (UL60 V) and the rated current of 2 A (UL 1,5 A) it is perfectly tuned for its field of application. It complies with the type standard DIN EN 61076-2-101.
General features
Moreless
Part no. 76 4832 3011 00008-0200
Connector design Female panel mount connector
Type standard DIN EN 61076-2-101
Wire length 0.2 m (Standard 0.2m. Other lengths are available on request).
Version Connector socket straight
Connector locking system screw
Termination single wires
Degree of protection IP67
Cross-sectional area 0.25 mm² / AWG 24
Temperature range from/to -40 °C / 85 °C
Mechanical operation > 100 Mating cycles
Weight (g) 12.49
Customs tariff number 85369010
Rated voltage 30 V (UL60 V)
Rated impulse voltage 800 V
Rated current 2 A (UL 1.5 A)
Insulation resistance > 108 Ω
Pollution degree 3
Overvoltage category II
Insulating material group III
EMC compliance unshielded
Housing material PA
Contact body material PA black
Contact material CuSn (bronze)
Contact plating Au (gold)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number 4f5f29ad-3652-492b-bbfe-2045cbd45ed2
eCl@ss 11.1 27-44-01-03
ETIM 9.0 EC003570
General Disclaim Notice
  1. The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
  2. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  3. The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
  4. Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
