  4. M12/M12 Connecting cable male cable connector - female cable connector, Contacts: 8, unshielded, moulded on the cable, IP69K, UL, PUR, black, 8 x 0.25 mm², 1 m
Part no.: 77 3420 3419 50708-0100

M12/M12 Connecting cable male cable connector - female cable connector, Contacts: 8, unshielded, moulded on the cable, IP69K, UL, PUR, black, 8 x 0.25 mm², 1 m

M12-A, series 763, Automation Technology - Sensors and Actuators

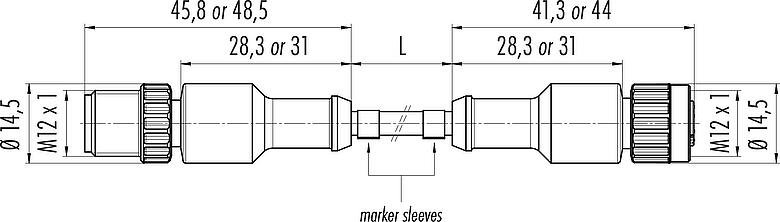

Available numbers of contacts
(Standard 1 m and 2 m. Other lengths are available on request.)
Compare product
Downloads
This female cable connector with male cable connector - female cable connector with screw locking and a pin count of 8 is according to its protection class IP68 Dustproof and complete protection against contact. Protection against permanent submersion. Unless otherwise specified, protection up to 1 meter water depth. It can be used in areas with a pollution degree of 3. In places where contamination can occur that is conductive or can become conductive through condensation. With temperatures ranges of -25 °C/85 °C is this unshielded M12-A coded connecting cable male cable connector - female cable connector designed for both severe cold and severe heat. und has the UL approval. Due to the qualified rated voltage of 30 V and the rated current of 2,0 A it is perfectly tuned for its field of application. It complies with the type standard DIN EN 61076-2-101.
General features
Moreless
Part no. 77 3420 3419 50708-0100
Connector design Connecting cable male cable connector - female cable connector
Type standard DIN EN 61076-2-101
Cable length 1 m (Standard 1 m and 2 m. Other lengths are available on request.)
Version Connecting cable
Connector locking system screw
Termination moulded on the cable
Degree of protection IP69K
Cross-sectional area 0.25 mm² / AWG 24
Temperature range from/to -25 °C / 85 °C
Mechanical operation > 100 Mating cycles
Weight (g) 46
Customs tariff number 85369010
Country of Origin DE
Rated voltage 30 V
Rated impulse voltage 800 V
Rated current 2.0 A
Pollution degree 3
Overvoltage category II
Insulating material group II
EMC compliance unshielded
Contact body material PUR
Contact material CuSn (bronze)
Contact plating Au (gold)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number d692be3f-db9f-4884-a543-175545316e96
ETIM 9.0 EC002638
Cable data
Moreless
Structure of the cable
Cable diameter 6.0 mm
Cross section 8 x 0.25 mm²
Sheath material PUR
Single-lead insulation PP9Y halogen-free
Single-lead structure 32 x 0.10 mm
Cable color black
Mechanical properties
Bending radius, fixed cable ≥ 5 x Ø
Bending radius, moving cable ≥ 10 x Ø
Bending cycles > 2 million
Permitted acceleration 5 m/s²
Travel distance, horizontal 5 m
Travel distance, vertical 2 m
Travel speed ≤ 200 m/min (5 m horizontal distance)
Thermal properties
Temperature range cable in move from/to -25 °C / 90 °C
Temperature range cable fixed from/to -50 °C / 90 °C
General Disclaim Notice
  1. The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
  2. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  3. To protect against unintentional opening of the connector, the thread between the housing and the connector head must be secured with a suitable cyanoacrylate adhesive when used in circuits with voltages dangerous to the touch. This does not apply to connectors used in SELV and PELV circuits according to IEC 61140 (EN 61140, VDE 0140-1).
  4. Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
  5. The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
  6. Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
  7. The plug connector is not suitable for mains voltages Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
  8. To lock the cable connector with the device connector, the threaded ring is tightened "hand-tight" (approx. 60 cNm).
  9. The protection class specification applies on condition that the four mounting holes are made as blind holes.
