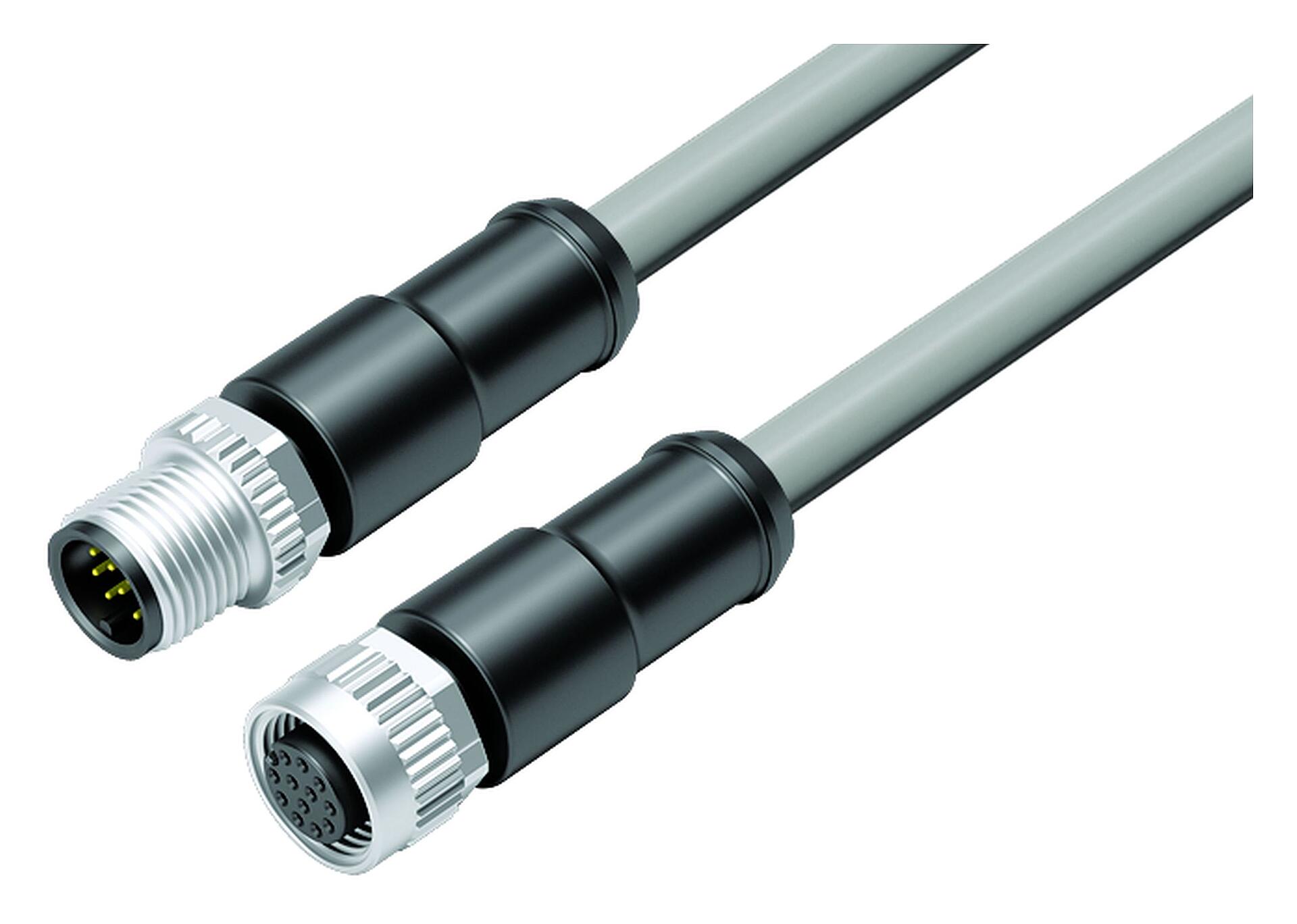

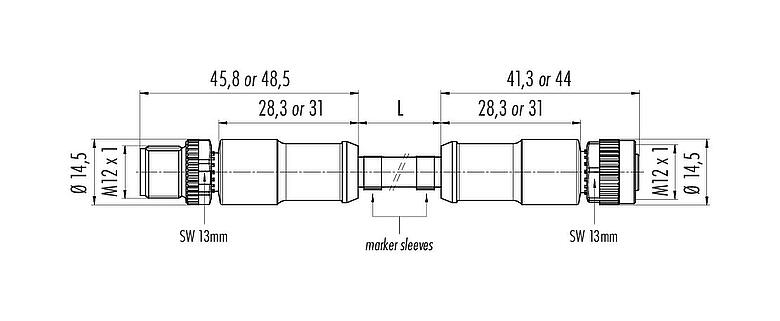

  4. M12/M12 Connecting cable male cable connector - female cable connector, Contacts: 12, unshielded, moulded on the cable, IP68, UL, PVC, grey, 12 x 0.25 mm², 5 m
Part no.: 77 3430 3429 20712-0500

M12/M12 Connecting cable male cable connector - female cable connector, Contacts: 12, unshielded, moulded on the cable, IP68, UL, PVC, grey, 12 x 0.25 mm², 5 m

M12-A, series 763, Automation Technology - Sensors and Actuators

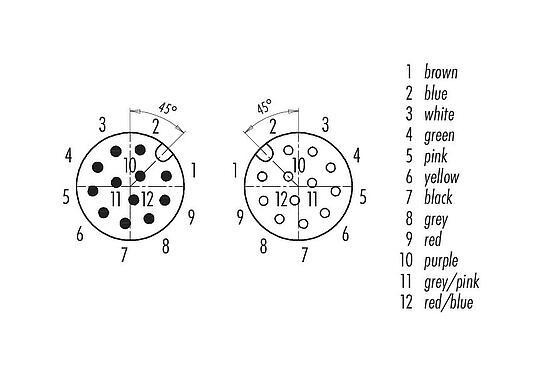

Available numbers of contacts
(Other lengths are available on request).
Compare product
Downloads
This female cable connector with male cable connector - female cable connector with screw locking and a pin count of 12 is according to its protection class IP68 Dustproof and complete protection against contact. Protection against permanent submersion. Unless otherwise specified, protection up to 1 meter water depth. It can be used in areas with a pollution degree of 3. In places where contamination can occur that is conductive or can become conductive through condensation. With temperatures ranges of -25 °C/90 °C is this unshielded M12-A coded connecting cable male cable connector - female cable connector designed for both severe cold and severe heat. und has the UL approval. Due to the qualified rated voltage of 30 V and the rated current of 1,5 A it is perfectly tuned for its field of application. It complies with the type standard DIN EN 61076-2-101.
General features
Moreless
Part no. 77 3430 3429 20712-0500
Connector design Connecting cable male cable connector - female cable connector
Type standard DIN EN 61076-2-101
Cable length 5 m (Other lengths are available on request).
Version Connecting cable
Connector locking system screw
Termination moulded on the cable
Degree of protection IP68
Cross-sectional area 0.25 mm² / AWG 24
Temperature range from/to -25 °C / 90 °C
Mechanical operation > 100 Mating cycles
Weight (g) 338
Customs tariff number 85444290
Country of Origin DE
Rated voltage 30 V
Rated impulse voltage 800 V
Rated current 1.5 A
Pollution degree 3
Overvoltage category II
Insulating material group II
EMC compliance unshielded
Contact body material PUR
Contact material CuSn (bronze)
Contact plating Au (gold)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number 651e166c-cc89-47da-aca4-b12d1b7af470
ETIM 9.0 EC002638
Cable data
Moreless
Structure of the cable
Cable diameter 6.6 mm
Cross section 12 x 0.25 mm²
Sheath material PVC
Single-lead insulation PVC
Single-lead structure 32 x 0.10 mm
Cable color grey
Mechanical properties
Bending radius, fixed cable ≥ 5 x Ø
Bending radius, moving cable ≥ 10 x Ø
Bending cycles > 2 million
Permitted acceleration max. 5 m/s² + 1 m/s²
Travel distance, horizontal 5 m
Travel distance, vertical 2 m
Travel speed ≤ 200 m/min (5 m horizontal distance)
Thermal properties
Temperature range cable in move from/to -5 °C / 105 °C
Temperature range cable fixed from/to -40 °C / 105 °C
General Disclaim Notice
  1. The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
  2. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  3. The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
  4. Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
  5. To lock the cable connector with the device connector, the threaded ring is tightened "hand-tight" (approx. 60 cNm).
