  4. M12 Female panel mount connector, Contacts: 8, shieldable, THT, IP68, UL, PG 9, front fastened
Part no.: 86 0532 1120 00008

M12 Female panel mount connector, Contacts: 8, shieldable, THT, IP68, UL, PG 9, front fastened

M12-A, series 763, Automation Technology - Sensors and Actuators
Available numbers of contacts
Compare product
Downloads
This female panel mount connector with screw locking and a pin count of 8 is according to its protection class IP68 Dustproof and complete protection against contact. Protection against permanent submersion. Unless otherwise specified, protection up to 1 meter water depth. It can be used in areas with a pollution degree of 3. In places where contamination can occur that is conductive or can become conductive through condensation. With temperatures ranges of -40 °C/85 °C is this shieldable M12-A coded female panel mount connector designed for both severe cold and severe heat. und has the UL approval. Due to the qualified rated voltage of 30 V and the rated current of 2 A (UL 1,5 A) it is perfectly tuned for its field of application. It complies with the type standard DIN EN 61076-2-101.

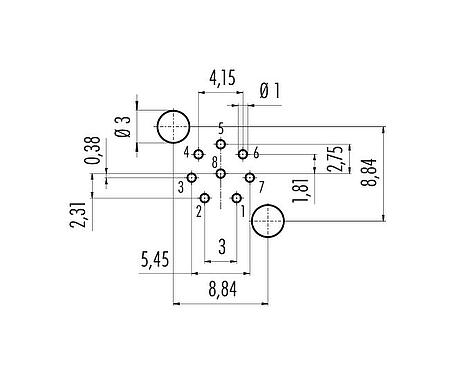

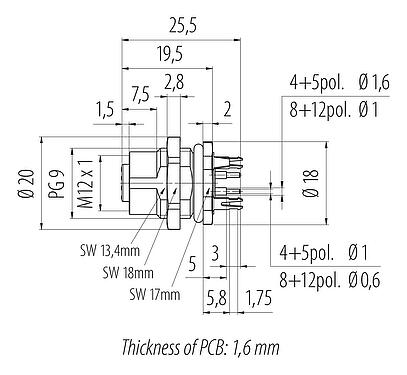

General features
Moreless
Part no. 86 0532 1120 00008
Alternative part no.: 09 3482 600 08
Notice
Please note that, due to the change from the old to the new order number, there may be deviations in the technical specifications. For questions about product details, please use the ‘Contact Customer Service’ form on the right.
More
Connector design Female panel mount connector
Type standard DIN EN 61076-2-101
Version Connector socket straight
Connector locking system screw
Termination THT
Degree of protection IP68
Temperature range from/to -40 °C / 85 °C
Mechanical operation > 100 Mating cycles
Weight (g) 15.76
Customs tariff number 85369010
Country of Origin DE
Rated voltage 30 V
Rated impulse voltage 800 V
Rated current 2 A (UL 1.5 A)
Insulation resistance > 108 Ω
Pollution degree 3
Overvoltage category II
Insulating material group III
EMC compliance shieldable
Shield connection Shielding plate
Housing material CuZn (Brass nickel plated)
Contact body material PA black
Contact material CuSn (bronze)
Contact plating Au (gold)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number 5d379b4a-5c57-4610-9fda-be6308d78f07
eCl@ss 11.1 27-44-01-09
ETIM 9.0 EC003569
General Disclaim Notice
  1. The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
  2. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  3. The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
  4. Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
