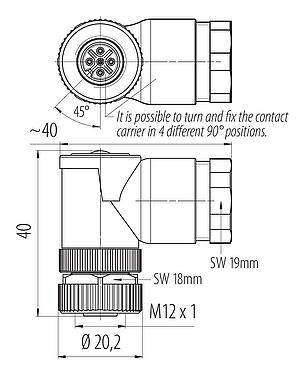

  2. Automation technology - Sensors and actuators
  3. M12-A
  4. M12 Female angled connector, Contacts: 5, 8.0-10.0 mm, unshielded, screw clamp, IP67, UL, VDE, for the power supply
Part no.: 99 0436 58 05

M12 Female angled connector, Contacts: 5, 8.0-10.0 mm, unshielded, screw clamp, IP67, UL, VDE, for the power supply

M12-A, series 713, Automation Technology - Sensors and Actuators
Available numbers of contacts
Compare product
Downloads
This female angled connector with screw locking and a pin count of 5 is according to its protection class IP67 Dust-tight and has complete protection against contact and protection against temporary immersion. It can be used in areas with a pollution degree of 3. In places where contamination can occur that is conductive or can become conductive through condensation. With temperatures ranges of -40 °C/85 °C is this unshielded M12-A coded female angled panel mount connector designed for both severe cold and severe heat and has the UL, VDE approval. Due to the qualified rated voltage of 60 V and the rated current of Kontakte: 1-4: 8 A / Kontakt 5: 2 A it is perfectly tuned for its field of application. It complies with the type standard DIN EN 61076-2-101.
General features
Moreless
Part no. 99 0436 58 05
Connector design Female angled connector
Type standard DIN EN 61076-2-101
Version Connector socket angled
Connector locking system screw
Termination screw clamp
Degree of protection IP67
Cross-sectional area max. 1.50 mm² / AWG 16
Cable outlet 8.0-10.0 mm
Twistability 90° (4 coding options)
Temperature range from/to -40 °C / 85 °C
Weight (g) 29.50
Customs tariff number 85369010
Country of Origin DE
Rated voltage 60 V
Rated impulse voltage 1500 V
Rated current contacts 1-4: 8 A / Contact 5: 2 A
Insulation resistance > 108 Ω
Pollution degree 3
Overvoltage category II
Insulating material group III
EMC compliance unshielded
Housing material PA
Contact body material PA
Contact material CuZn (brass)
Contact plating Au (gold)
Locking material Zinc die-cast nickel-plated
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number 5d356221-a851-497f-a86d-20722879f847
eCl@ss 11.1 27-44-01-02
ETIM 9.0 EC002635
Low Voltage Directive 2014/35/EU (EN 60204-1:2018;EN 60529:1991)
General Disclaim Notice
  1. The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
  2. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  3. To protect against unintentional opening of the connector, the thread between the housing and the connector head must be secured with a suitable cyanoacrylate adhesive when used in circuits with voltages dangerous to the touch. This does not apply to connectors used in SELV and PELV circuits according to IEC 61140 (EN 61140, VDE 0140-1).
  4. Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
  5. Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
  6. To lock the cable connector with the device connector, the threaded ring is tightened "hand-tight" (approx. 60 cNm).
