  4. M12 Female angled panel mount connector, Contacts: 5, unshielded, THR, IP68, UL, for PCB assembly
Part no.: 99 3442 202 05

M12 Female angled panel mount connector, Contacts: 5, unshielded, THR, IP68, UL, for PCB assembly

M12-A, series 763, Automation Technology - Sensors and Actuators
Available numbers of contacts
Compare product
Downloads
This female panel mount connector, gewinkelt with screw locking and a pin count of 5 is according to its protection class IP68 Dustproof and complete protection against contact. Protection against permanent submersion. Unless otherwise specified, protection up to 1 meter water depth. It can be used in areas with a pollution degree of 3. In places where contamination can occur that is conductive or can become conductive through condensation. With temperatures ranges of -40 °C/85 °C is this unshielded M12-A coded female panel mount connector, gewinkelt designed for both severe cold and severe heat. und has the UL approval. Due to the qualified rated voltage of 60 V and the rated current of 4 A (3 A UL) it is perfectly tuned for its field of application. It complies with the type standard DIN EN 61076-2-101.

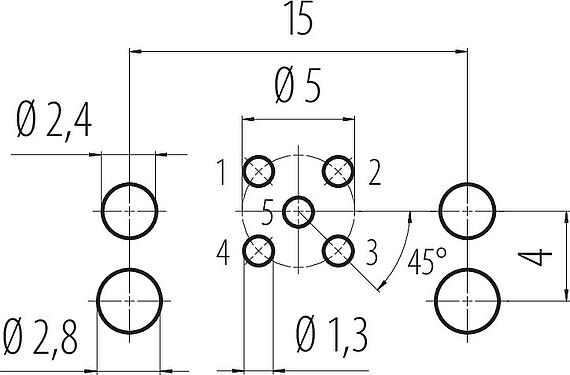

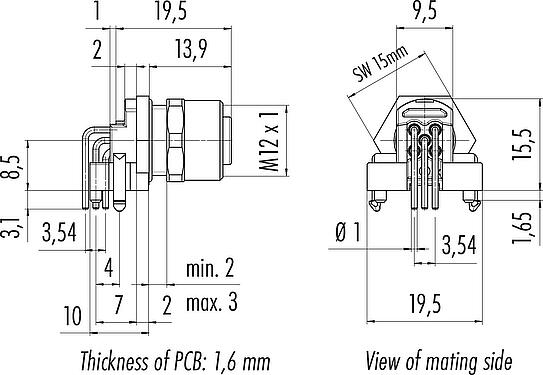

General features
Moreless
Part no. 99 3442 202 05
Connector design Female angled panel mount connector
Type standard DIN EN 61076-2-101
Version Connector socket angled
Connector locking system screw
Termination THR
Degree of protection IP68
Temperature range from/to -40 °C / 85 °C
Mechanical operation > 100 Mating cycles
Weight (g) 11.01
Customs tariff number 85369010
Country of Origin HU
Rated voltage 60 V
Rated impulse voltage 1500 V
Rated current 4 A (3 A UL)
Insulation resistance > 108 Ω
Pollution degree 3
Insulating material group III
EMC compliance unshielded
Housing material CuZn (Brass nickel plated)
Contact body material PA
Contact material CuSn (bronze)
Contact plating Au (gold)
Locking material CuZn (brass)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number 084e6db1-5330-4bc7-b242-55debb831d35
General Disclaim Notice
  1. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  2. Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
