  4. M12 Female panel mount connector, Contacts: 5, unshielded, SMT, IP67
Part no.: 99 3442 352 05

M12 Female panel mount connector, Contacts: 5, unshielded, SMT, IP67

M12-A, series 763, Automation Technology - Sensors and Actuators
Available numbers of contacts
Compare product
Downloads
This female panel mount connector with screw locking and a pin count of 5 is according to its protection class IP67 Dust-tight and has complete protection against contact and protection against temporary immersion. It can be used in areas with a pollution degree of 3. In places where contamination can occur that is conductive or can become conductive through condensation. With temperatures ranges of -40 °C/85 °C is this unshielded M12-A coded female panel mount connector designed for both severe cold and severe heat. Due to the qualified rated voltage of 60 V and the rated current of 4,0 A it is perfectly tuned for its field of application. It complies with the type standard DIN EN 61076-2-101.

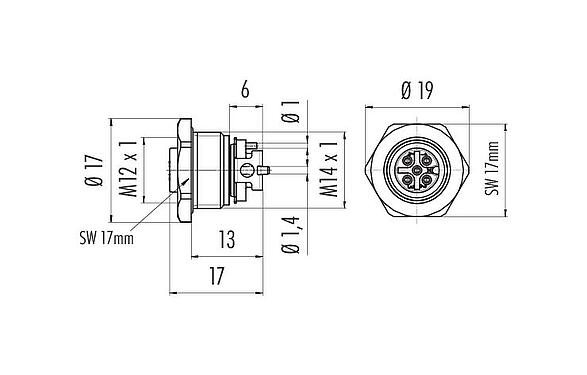

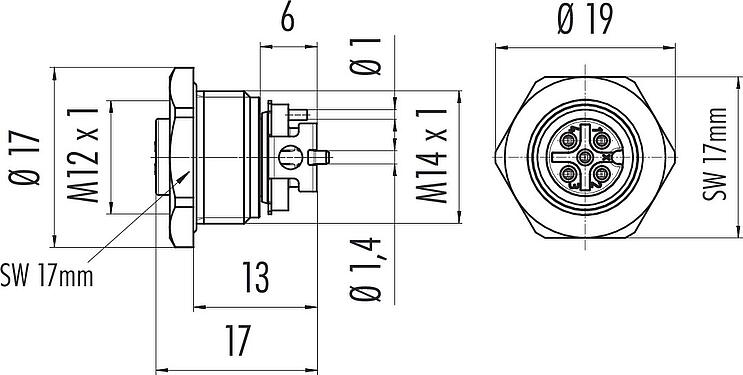

General features
Moreless
Part no. 99 3442 352 05
Connector design Female panel mount connector
Type standard DIN EN 61076-2-101
Version Connector socket straight
Connector locking system screw
Termination SMT
Degree of protection IP67
Temperature range from/to -40 °C / 85 °C
Mechanical operation > 100 Mating cycles
Installation height 13
Weight (g) 6.71
Customs tariff number 85369010
Country of Origin DE
Rated voltage 60 V
Rated impulse voltage 1500 V
Rated current 4.0 A
Insulation resistance > 108 Ω
Pollution degree 3
Insulating material group III
EMC compliance unshielded
Housing material CuZn (Brass nickel plated)
Contact body material LCP
Contact material CuSn (bronze)
Contact plating Au (gold)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number 2df06df8-ca30-4a32-88a7-01a5b905abac
General Disclaim Notice
  1. The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
  2. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  3. The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
  4. Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
