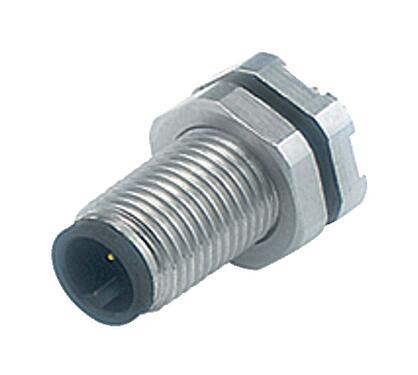

  4. M5 Male panel mount connector, Contacts: 3, unshielded, THT, IP67
Part no.: 09 3105 81 03

M5 Male panel mount connector, Contacts: 3, unshielded, THT, IP67

M5, series 707, Automation Technology - Sensors and Actuators
Available numbers of contacts
Compare product
General features
Part no. 09 3105 81 03
Connector design Male panel mount connector
Version Connector pin straight
Connector locking system screw
Termination THT
Degree of protection IP67
Temperature range from/to -25 °C / 80 °C
Mechanical operation > 100 Mating cycles
Weight (g) 1.78
Customs tariff number 85369010
Rated voltage 60 V
Rated impulse voltage 800 V
Rated current (40 °C) 1.0 A
Insulation resistance > 10⁸ Ω
Pollution degree 3
Overvoltage category II
Insulating material group I
EMC compliance unshielded
Contact body material PA
Contact material CuZn (brass)
Contact plating Au (gold)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number 431c53fc-df7a-413c-aac7-bb7dd602ca11
eCl@ss 11.1 27-44-01-09
ETIM 7.0 EC003569
General Disclaim Notice
  1. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  2. Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
