  4. M5 Female panel mount connector, Contacts: 3, unshielded, single wires, IP67
Part no.: 09 3106 01 03

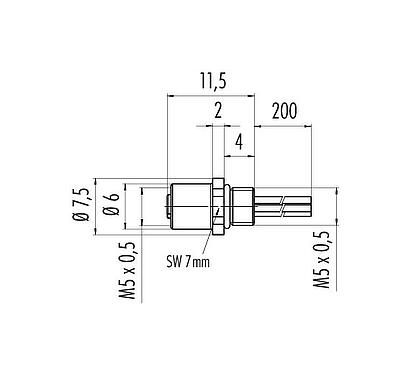

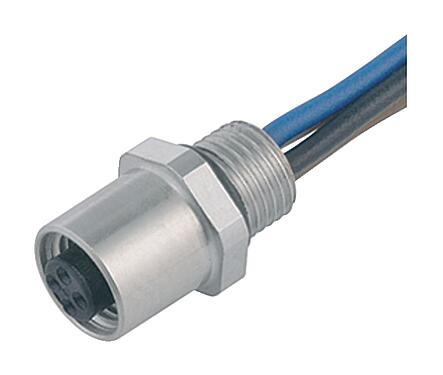

M5 Female panel mount connector, Contacts: 3, unshielded, single wires, IP67

M5, series 707, Automation Technology - Sensors and Actuators
Available numbers of contacts
Compare product
Downloads
This female panel mount connector with screw locking and a pin count of 3 is according to its protection class IP67 Dust-tight and has complete protection against contact and protection against temporary immersion. It can be used in areas with a pollution degree of 3. In places where contamination can occur that is conductive or can become conductive through condensation. With temperatures ranges of -25 °C/80 °C is this unshielded M5 female panel mount connector designed for both severe cold and severe heat. Due to the qualified rated voltage of 60 V and the rated current of 1,0 A it is perfectly tuned for its field of application. It complies with the type standard DIN EN 61076-2-105.
General features
Moreless
Part no. 09 3106 01 03
Connector design Female panel mount connector
Type standard DIN EN 61076-2-105
Wire length 0.2 m (Standard 0.2m. Other lengths are available on request).
Version Connector socket straight
Connector locking system screw
Termination single wires
Degree of protection IP67
Cross-sectional area 0.25 mm² / AWG 24
Temperature range from/to -25 °C / 80 °C
Mechanical operation > 100 Mating cycles
Weight (g) 4.01
Customs tariff number 85369010
Country of Origin DE
Rated voltage 60 V
Rated impulse voltage 800 V
Rated current 1.0 A
Insulation resistance > 108 Ω
Pollution degree 3
Overvoltage category II
Insulating material group I
EMC compliance unshielded
Contact body material PA
Contact material CuSn (bronze)
Contact plating Au (gold)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number 1274da62-ac9d-44d6-985c-642ff3d3f501
eCl@ss 11.1 27-44-01-09
ETIM 9.0 EC003569
General Disclaim Notice
  1. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  2. Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
