Automation technology - Sensors and actuators
Filter products
Connector type
The connector type can be used to distinguish our products for installation in a device housing from cable parts. The connector type describes the difference between connectors that are mounted on enclosures and connectors that are mounted on cables.
Gender
A connector consists of the male part (pin) and the female part (socket). Depending on the design, the male or female part is either permanently installed or are located at the end of a cable.
Number of contacts
This indicates the number of contacts the connector has.
Version
The choice of version allows the definition of certain technical specifications – for example the type of cable outlet or the size.
Locking Type
The locking system describes how the pin and socket elements are joined.
Rated voltage
The rated voltage is the electrical voltage assigned to the connector.
Rated current
The rated current is the electrical current that is assigned to the connector.
Degree of protection
The degrees of protection according to IEC60529 apply to various articles and provide information on protection against the intrusion of water and solids such as dust.
Shielded Option
Electromagnetic compatibility (EMC) means that a connector is shielded or shieldable. This is required when it is necessary to protect the signals or data conducted by the connector, as well as to protect external devices, from disturbance due to electromagnetic effects.
Material of housing
Depending on the area of application or requirements, connectors are made of different materials. We offer metal and plastic housings for our items as the housing material.
Coding
The connector elements, pin and socket, must be brought into form-fitting alignment with one another (coding) before locking. This prevents mismating.
Termination
The termination type determines how cables, single wires or PCBs can be joined with the connector.
Approval
Our articles have various approvals which can be preselected here. can be preselected here.
Cable type
By selecting the cable type, a preselection for the respective application can be carried out.
Cable Jacket Type
The material of the cable jacket. PUR, TPE, TMPU or TPE-U cables each have different technical properties.
Cable color
The color of the cable jacket.
Cable length
Our items with molded or pre-assembled cables have different cable lengths. It describes the length of the cable from the end of the connector. If the desired cable length is not included, please contact our sales department.
Locking material
Depending on the technical requirements or performance data of the connector, the locking mechanism is made of plastic or metal.

M5 connectors play a vital role in ensuring seamless electrical connections for many applications, especially in the industrial environment. These compact, versatile connectors are available in various configurations, including the sought-after 4-pin M5 electrical connector.

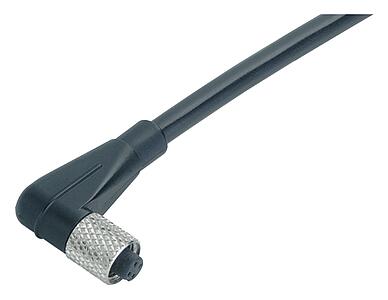

M5 electrical connector


A key feature of M5 connectors is their gender options, with M5 female connectors and M5 male connectors, providing flexibility in designing and assembling electrical systems. Moreover, the 4-pin M5 connector, whether it's a female M5 connector or a M5 male connector, offers reliable and compact solutions for data and power transmission, making them indispensable in the industrial automation landscape.


M5 circular connectors


M5 connectors with screw locking according to DIN EN 61076-2-105 are available as straight and angled cable versions as well as easy-to-mount flange plugs and sockets. A threaded ring serves as vibration protection. There is a choice of 3 and 4 gold-plated brass contacts with a rated current of 1A at a rated voltage of 60V. Protection class is IP67.


Find your suitable M5 connector from binder.
