  4. M8 Female panel mount connector, Contacts: 4, shieldable, THT, IP67
Part no.: 86 6620 1120 00404

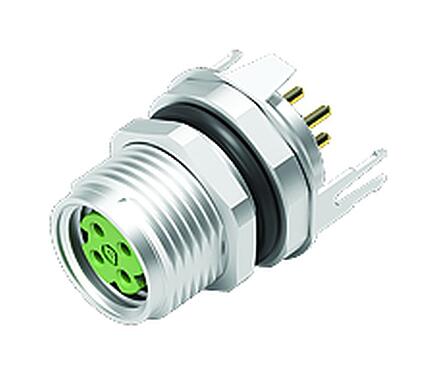

M8 Female panel mount connector, Contacts: 4, shieldable, THT, IP67

M8-D, series 818, Automation Technology - Sensors and Actuators
Compare product
This female panel mount connector with screw locking and a pin count of 4 is according to its protection class IP67 Dust-tight and has complete protection against contact and protection against temporary immersion. It can be used in areas with a pollution degree of 3. In places where contamination can occur that is conductive or can become conductive through condensation. With temperatures ranges of -40 °C/85 °C is this shieldable M8-D coded female panel mount connector designed for both severe cold and severe heat. Due to the qualified rated voltage of 63 V DC and the rated current of 4,0 A it is perfectly tuned for its field of application. It complies with the type standard DIN EN 61076-2-114.
General features
Part no. 86 6620 1120 00404
Connector design Female panel mount connector
Type standard DIN EN 61076-2-114
Version Connector socket straight
Connector locking system screw
Termination THT
Degree of protection IP67
Temperature range from/to -40 °C / 85 °C
Mechanical operation > 100 Mating cycles
Weight (g) 3.0
Customs tariff number 85369010
Rated voltage 63 V DC
Rated impulse voltage 1500 V
Rated current 4.0 A
Insulation resistance > 108 Ω
Pollution degree 3
Insulating material group III
EMC compliance shieldable
Shield connection Shielding plate
Housing material Zinc die-cast nickel-plated
Contact body material PA yellow/green
Contact material CuZn (brass) / CuSn (bronze)
Contact plating Au (gold)
REACH SVHC CAS 7439-92-1 (Lead)
NK (Nicht klassifiziert)
eCl@ss 11.1 27-44-01-09
ETIM 9.0 EC003569
General Disclaim Notice
  1. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  2. Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
  3. To lock the cable connector with the device connector, the threaded ring is tightened "hand-tight" (approx. 40 cNm).
