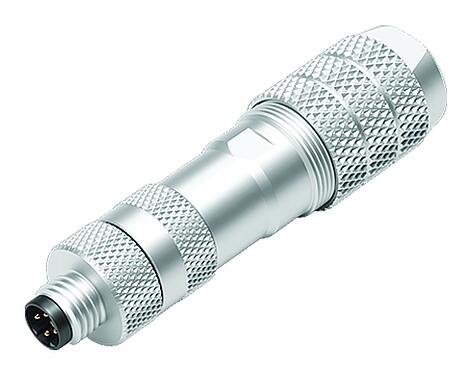

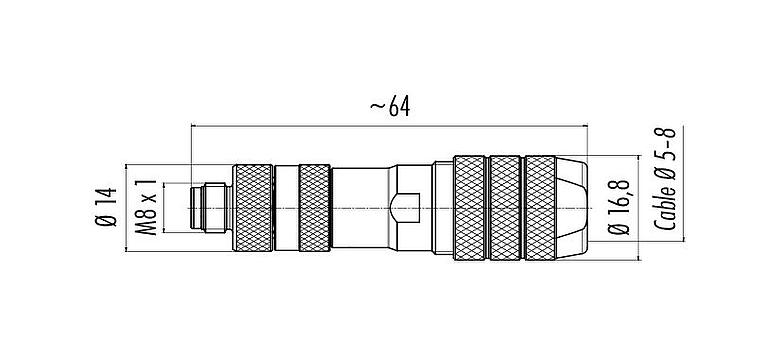

  4. M8 Male cable connector, Contacts: 4, 5.0-8.0 mm, shieldable, screw clamp, IP67
Part no.: 99 3369 600 04

M8 Male cable connector, Contacts: 4, 5.0-8.0 mm, shieldable, screw clamp, IP67

M8-D, series 818, Automation Technology - Sensors and Actuators
Compare product
This male cable connector mit M8x1 Verriegelung and a pin count of 4 is according to its protection class IP67 Dust-tight and has complete protection against contact and protection against temporary immersion. It can be used in areas with a pollution degree of 3. In places where contamination can occur that is conductive or can become conductive through condensation. With temperatures ranges of -25 °C/85 °C is this shieldable M8-D coded male cable connector designed for both severe cold and severe heat. Due to the qualified rated voltage of 63 V DC and the rated current of 4,0 A it is perfectly tuned for its field of application. It complies with the type standard DIN EN 61076-2-114.
General features
Part no. 99 3369 600 04
Connector design Male cable connector
Type standard DIN EN 61076-2-114
Version Connector pin straight
Connector locking system M8x1
Termination screw clamp
Degree of protection IP67
Cross-sectional area 0.14-0.50 mm²
Cable outlet 5.0-8.0 mm
Temperature range from/to -25 °C / 85 °C
Mechanical operation > 100 Mating cycles
Weight (g) 15.0
Customs tariff number 85444290
Rated voltage 63 V DC
Rated impulse voltage 1500 V
Rated current 4.0 A
Insulation resistance > 108 Ω
Pollution degree 3
Overvoltage category II
Insulating material group II
EMC compliance shieldable
Shield connection Iris type spring
Housing material CuZn (Brass nickel plated)
Contact body material PA black
Contact material CuZn (brass)
Contact plating Au (gold)
Locking material CuZn (brass)
REACH SVHC CAS 7439-92-1 (Lead)
eCl@ss 11.1 27-44-01-02
ETIM 9.0 EC002635
